BaseStation Directional Antenna Kit

€90.00€112.95Excl. VAT — added at checkoutIncl. 25.5% VAT (Finland) — final VAT is calculated at checkout

Ordered for you — ships in about 7 business days

Delivery across Europe from Finland, other countries on request
Not sure it fits your build? Ask us — we build on the same platform.

Description

By default, the BaseStation comes with an omnidirectional antenna that receives and transmits signals equally in all directions, making it great for short-range general use. For long-range missions, a directional antenna can greatly boost communication range by focusing the signal towards the BlueBoat.

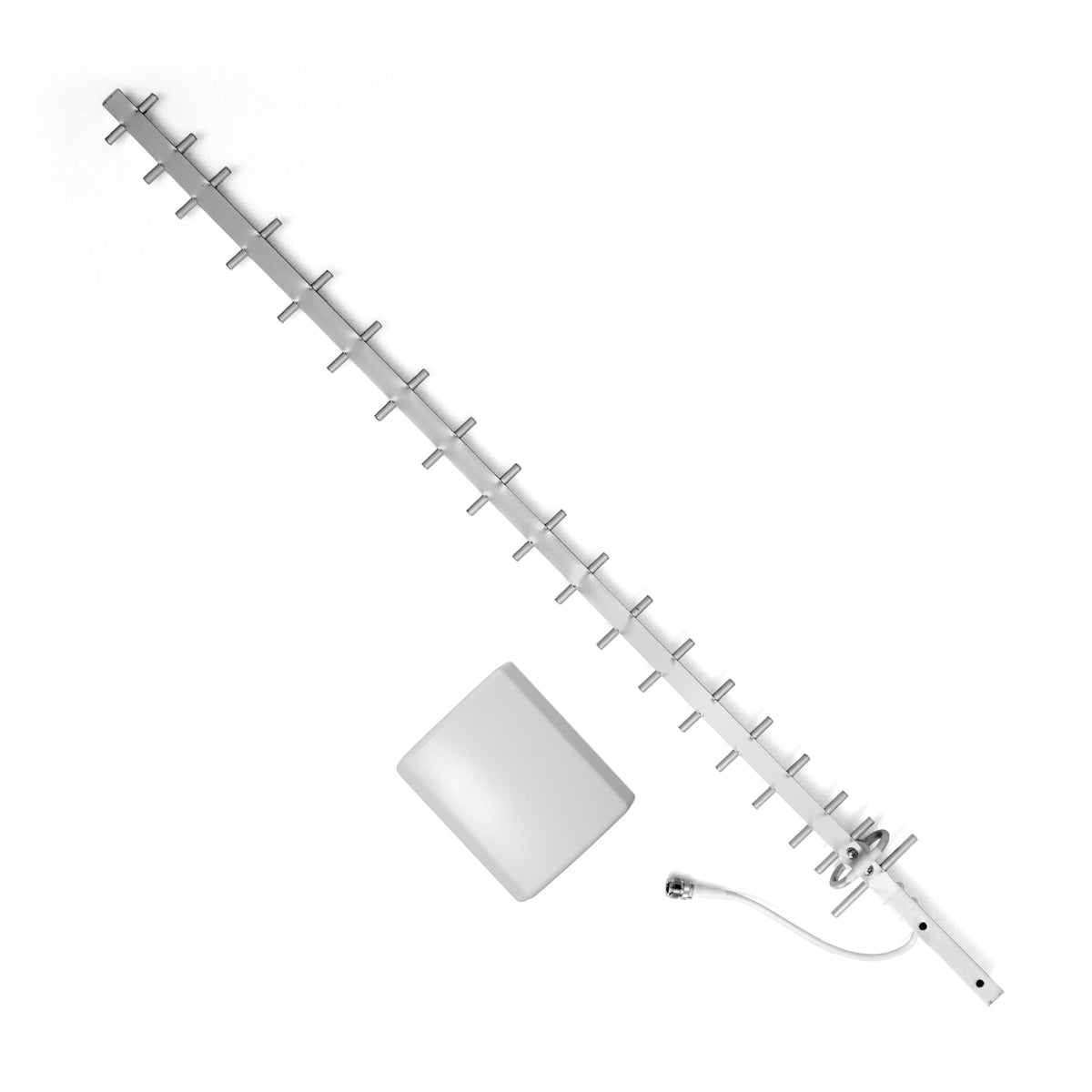

The BaseStation Directional Antenna Kit comes in two versions:

The Panel Antenna Kit provides a mid-range upgrade with a wider 40-degree beamwidth.
The Yagi Antenna Kit provides a long-range upgrade with a narrower 25-degree beamwidth.

Both kits come with everything needed to install on the BaseStation. You’ll want to mount these on a tripod at least 1.5 meters off the ground, but an even taller tripod will get better performance. Check out the installation guide for more information about installing these on the BaseStation and configuring settings.

What's in the box

Panel Antenna

1 x Panel antenna
1 x N-Type male to male adapter (BR-103221)

Yagi Antenna

1 x Yagi antenna
1 x N-Type male to male adapter (BR-103221)
1 x Yagi antenna mount (BR-103081)
1 x Thumbscrew (BR-103157)
2 x M6x10 button head screw (BR-103158)

Technical details

Specifications

Antenna	Panel Antenna	Yagi Antenna
Performance
Practical Communication Range at Sea Level ¹	500 m	800 m
Gain	13 dBi	17 dBi
Frequency	2.4–2.5 GHz 5.15–5.85 GHz	2.4–2.483 GHz
Voltage Standing Wave Ratio	< 2.0 : 1	< 1.5 : 1
Horizontal Beamwidth	40°, 41°	25°
Vertical Beamwidth	35°, 33°	24°
Nominal Impedance	50 Ohm	50 Ohm
Physical
Dimensions (Length x Width x Height)	140 x 120 x 39 mm	896 x 83 mm
Weight	454 g	458 g
Cable Length	NA	240 mm
Connector Type	N-Type female (male adapter included)	N-Type female (male adapter included)
¹ See Tested Range table for more information.

Tested Range

* Data was collected under the following conditions: - Calm sea state - Low to medium signal interference - 3 to 10 meters of BaseStation elevation
	Tested Range - United States Settings					Tested Range - ETSI Settings
	Stock Antenna	Panel Antenna		Yagi Antenna		Stock Antenna	Panel Antenna		Yagi Antenna
	Range (m)	Range (m)	% Increase	Range (m)	% Increase	Range (m)	Range (m)	% Increase	Range (m)	% Increase
Average	498	905	80%	1117	123%	332	490	46%	623	90%
