Battery Cell Checker
€19.00€23.85Excl. VAT — added at checkoutIncl. 25.5% VAT (Finland) — final VAT is calculated at checkout
Ordered for you — ships in about 7 business days
- Delivery across Europe from Finland, other countries on request
- Not sure it fits your build? Ask us — we build on the same platform.
Description

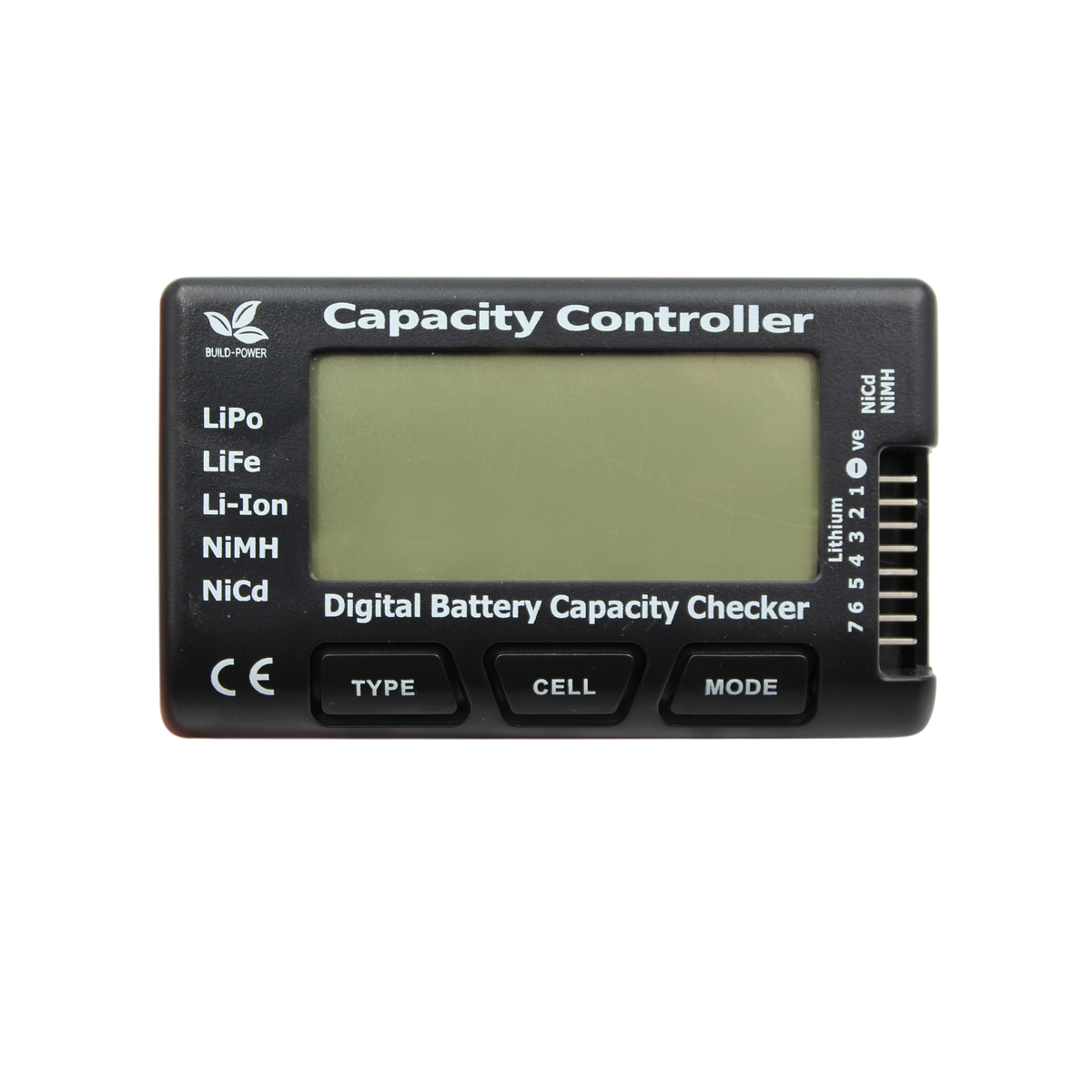

The Battery Cell Checker is a convenient way to monitor the charge status and health of any 2-6 cell (2-6s) lithium ion battery. It plugs into the battery’s balance plug (a white JST-XH connector) and tells you individual cell voltage, overall pack voltage, and the overall state-of-charge.
We use these in the field to check each battery before a dive and to sort out charged and discharged batteries afterwards.
What's in the box
Contents
- 1 x Battery Cell Checker
Technical details
Specifications
| Parameter | Value |
|---|---|
| Battery Types | Lithium Ion LiPo LiFE NiMH NiCd |
| Cells | 2-7s (lithium) |
| Pin Pitch | 0.1" (2.54mm) |
| Balance Plug | JST-XH |
| Dimensions | 44 mm x 32 mm x 14 mm |
| Weight | 42 g |
Revision History
14 July 2023
- BATTERY-CELL-CHECKER-R1 SKU changed to BR-100757
27 June 2019
- R1 - Initial release
