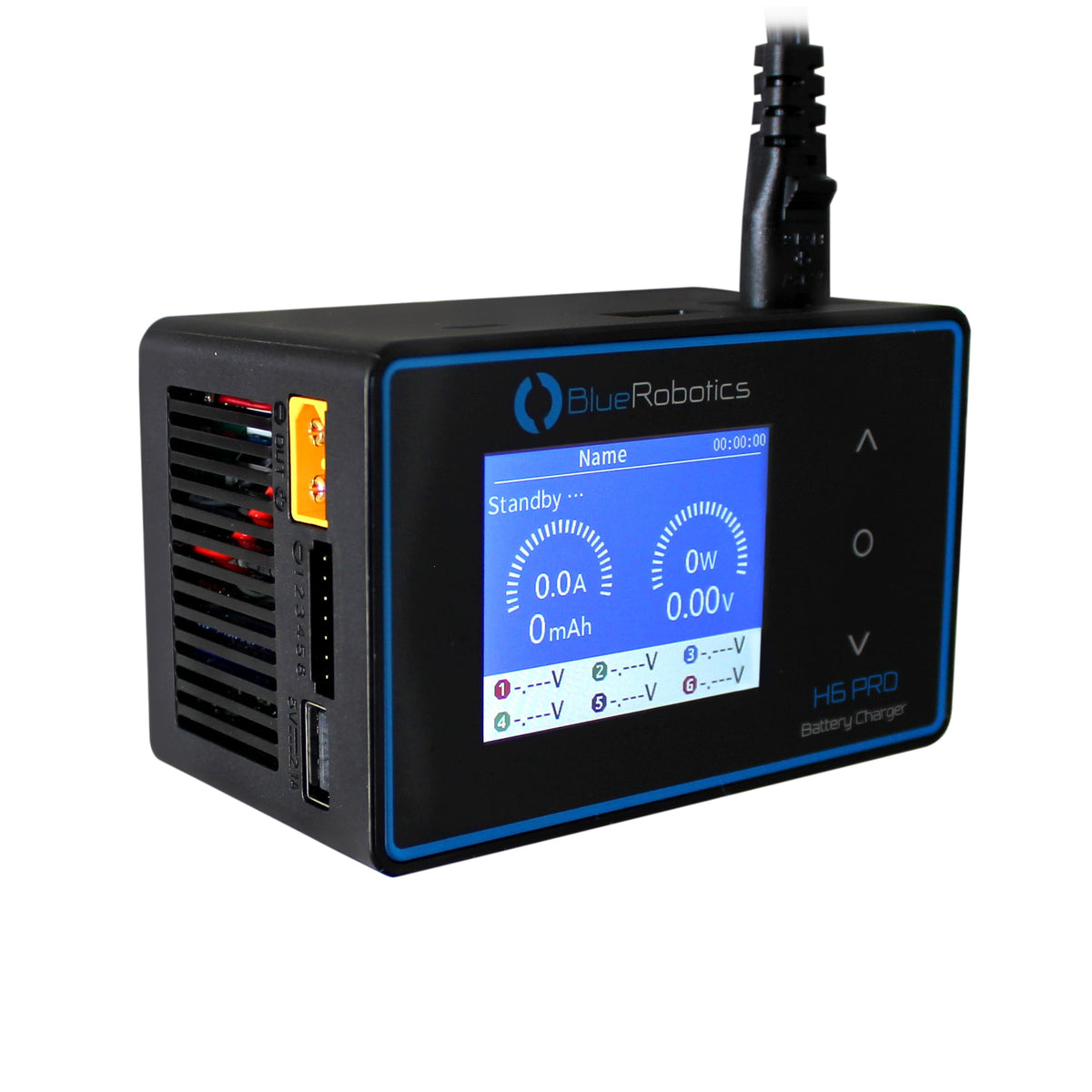

H6 PRO Lithium Battery Charger
Ordered for you — ships in about 7 business days
- Delivery across Europe from Finland, other countries on request
- Not sure it fits your build? Ask us — we build on the same platform.
Description
The H6 PRO Lithium Battery Charger is a high-power lithium balance charger, perfect for use with all Blue Robotics lithium batteries! With built-in balancing and discharge capability, your batteries can safely be kept in top condition for maximum performance and lifespan! A nominal fixed 10A charge current means you can fully charge a high-capacity lithium battery like our
Lithium-ion Battery (14.8V, 18Ah) in about 1–2 hours. For even more functionality, the firmware can be unlocked to enable charging other battery chemistries at variable currents.
What's in the box
- 1 x H6 PRO Lithium Battery Charger
- 1 x AC power cord with one of the selected plug types:
- North American/Japanese ungrounded plug type A
- Australian/Chinese ungrounded plug type I
- European ungrounded plug type C
- United Kingdom ungrounded plug type G
- 2 x XT60 to XT90 battery cable adapter
- 1 x 4S balance lead extension
- 1 x 6S balance lead extension
Technical details
Specifications
| Parameter | Value | |
|---|---|---|
| Electrical | ||
| Input Voltage | 100–240V AC | 6.5–30V DC |
| Charge Power | AC 168W* | DC 168W* |
| Charge Current | 10A* | |
| Discharge Power | Internal Discharge 30W, Balance Port 10W | |
| USB Output | 5V / 2.1A | |
| Balance Current | 2000 mA | |
| Battery Chemistry | Lithium-ion, lithium polymer* | |
| Lithium Cell Count | 4S, 6S* | |
| Charge Port | XT60 | |
| Balance Port | 7 Pin JST-XH | |
| Physical | ||
| Length | 108 mm | 4.3 in |
| Width | 67 mm | 2.6 in |
| Height | 60 mm | 2.4 in |
| Weight | 410 g | 0.90 lb |
| Storage Temperature | -20–60°C | -4–140°F |
| Operating Temperature | 0–40°C | 32–104°F |
| *Parameter is limited by default firmware, refer to the H6 PRO Firmware Unlock Guide to load fully operational firmware enabling complete current, voltage, and chemistry adjustment with additional auxiliary functions. | ||
Documents
H6-PRO-Quick-Start-English-Spanish (.pdf)
HOTA H6 PRO Full Manual (for advanced users with unlocked firmware ONLY, English) (.pdf)
Certificate of Conformity (.pdf)
Revision History
2 November 2023
- XT60 cover and warning label added to DC IN port on back of charger.
18 July 2023
- BATTERY-CHARGER-H6PRO-R2 SKU changed to BR-100377
12 August 2022
- Initial Release - R2
- Default firmware updated to support 6S batteries
- 1 x 6S balance lead extension added to contents
- 1 x 4S balance lead extension removed from contents
9 February 2021
- Initial Release - R1
