5V 6A Power Supply
€32.00€40.16Excl. VAT — added at checkoutIncl. 25.5% VAT (Finland) — final VAT is calculated at checkout
Ordered for you — ships in about 7 business days
- Delivery across Europe from Finland, other countries on request
- Not sure it fits your build? Ask us — we build on the same platform.
Description

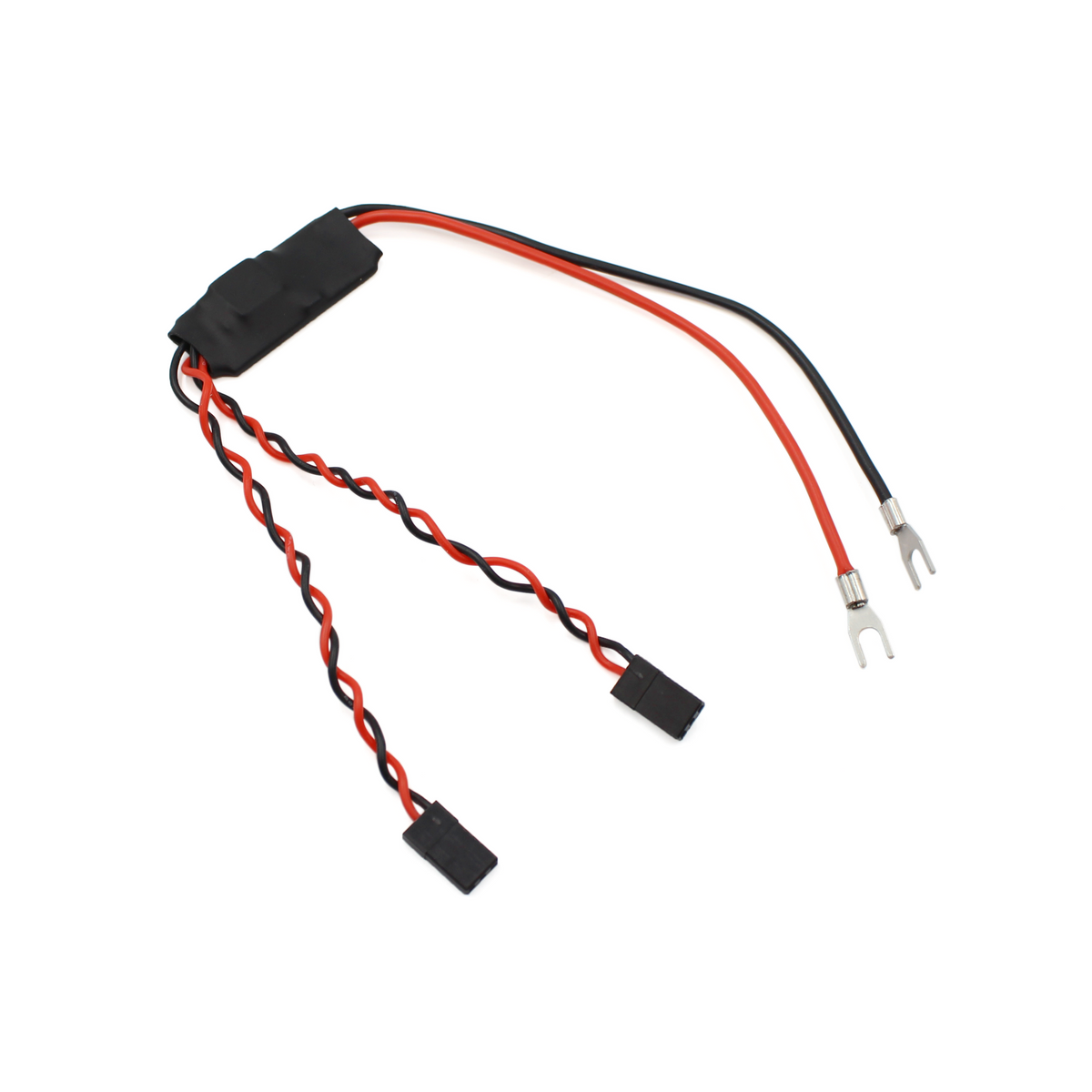

This power supply provides 5v power at up to 6A. It accepts input voltages from 7v to 26v and uses a switching converter with minimal heat loss. It comes with two standard servo-style connectors, making it easy to use to power the Navigator or Pixhawk 5v rail for servos, the Raspberry Pi, or other 5v devices.
What's in the box
Contents
- 1 x 5V 6A Power Supply
Technical details
Specifications
| Parameter | Value | |
|---|---|---|
| Electrical | ||
| Supply Voltage | 7-26V | 2S-6S Li-po/Li-ion Battery |
| Output Voltage | 5 Volts DC | |
| Output Current (Max) | 6 Amps (combined output) | |
| Input Connector | Non-Insulated Spades | |
| Output Connectors | 3 position 0.1” (2.54mm) Crimp Connector Housing | |
| Physical | ||
| Length | 37 mm | 1.45 in |
| Width | 18 mm | 0.71 in |
| Height | 6 mm | 0.24 in |
| Input Wire Length | 140 mm | 5.5 in |
| Output Wire Length | 115 mm | 4.5 in |
Revision History
18 July 2023
- BEC-5V6A-R1 SKU changed to BR-100869
10 October 2018
- R1 - Initial release
