Basic ESC

€40.00€50.20Excl. VAT — added at checkoutIncl. 25.5% VAT (Finland) — final VAT is calculated at checkout

Ordered for you — ships in about 7 business days

Delivery across Europe from Finland, other countries on request
Not sure it fits your build? Ask us — we build on the same platform.

Description

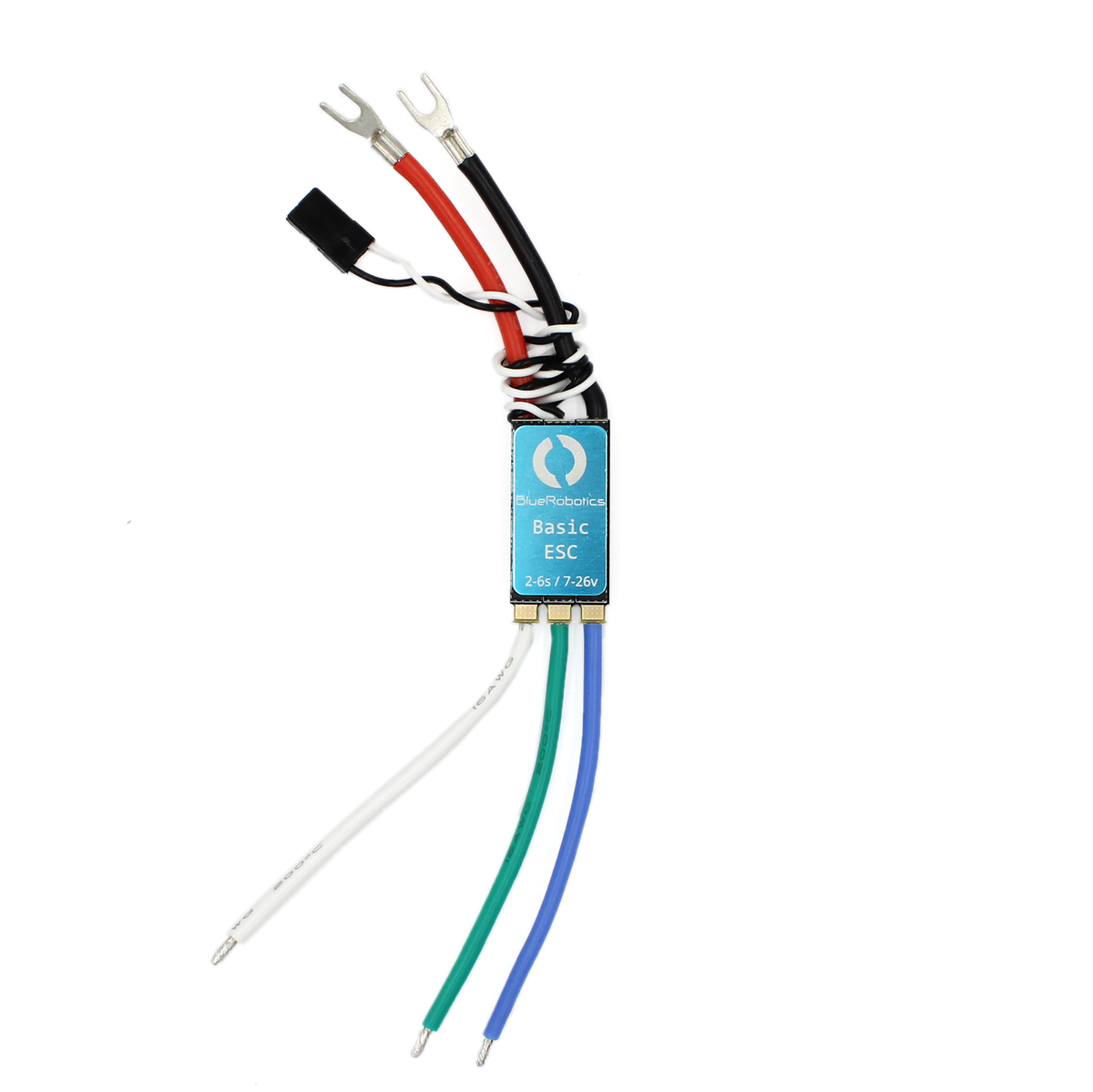

An electronic speed controller (ESC) is necessary to run any three-phase brushless motor like Blue Robotics’ thrusters and motors. This 30 amp ESC is sufficient for the T200 thruster and runs the BLHeli_S firmware.

Key Features

Simple, robust brushless electronic speed controller
Compact form factor
Forward/reverse rotation direction for forward/reverse thrust
Customizable settings in an easy-to-use interface
High-efficiency, low-heat design optimized for minimal cooling environments

What's in the box

1 x Basic ESC

Technical details

Specifications

Parameter	Value
Electrical
Voltage	7–26 V (2–6S)
Max Current (Constant)	30 A (depends on cooling)
Physical
Weight	16.3 g	0.036 lb
Connectors
Power	#6 Spade terminal
Motor	Tinned wire ends
Signal	3-position servo connector (0.1" / 2.54mm pitch) (ground, blank, signal)
Wire Gauges
Power	14 AWG
Motor	16 AWG
Signal	26 AWG
Pulse Width Signal
Signal Voltage	3.3–5 V
Max Update Rate	400 Hz
Initialize/Stop	1500 μs
Max forward	1900 μs
Max reverse	1100 μs
Signal Deadband	1500 μs ± 25 μs
Firmware Defaults
Directionality	Bidirectional (center throttle is zero/stopped)
Thermal Protection	Temperature ≥140℃ ≥145℃ ≥150℃ ≥155℃	Motor Power Limit 75% 50% 25% 0%
