Ping Integration Kit for BlueBoat

Calling all surveyors!

The BlueBoat Ping Integration Kit makes it easy to mount the Ping Echosounder to the BlueBoat for hydrographic surveys. The Ping has has 100 meter range, enabling you to conduct bathymetric surveys of the seafloor or lake bottom.

The map to the right was created using the BlueBoat, Ping, and our guide on how to conduct bathymetric surveys with the BlueBoat.

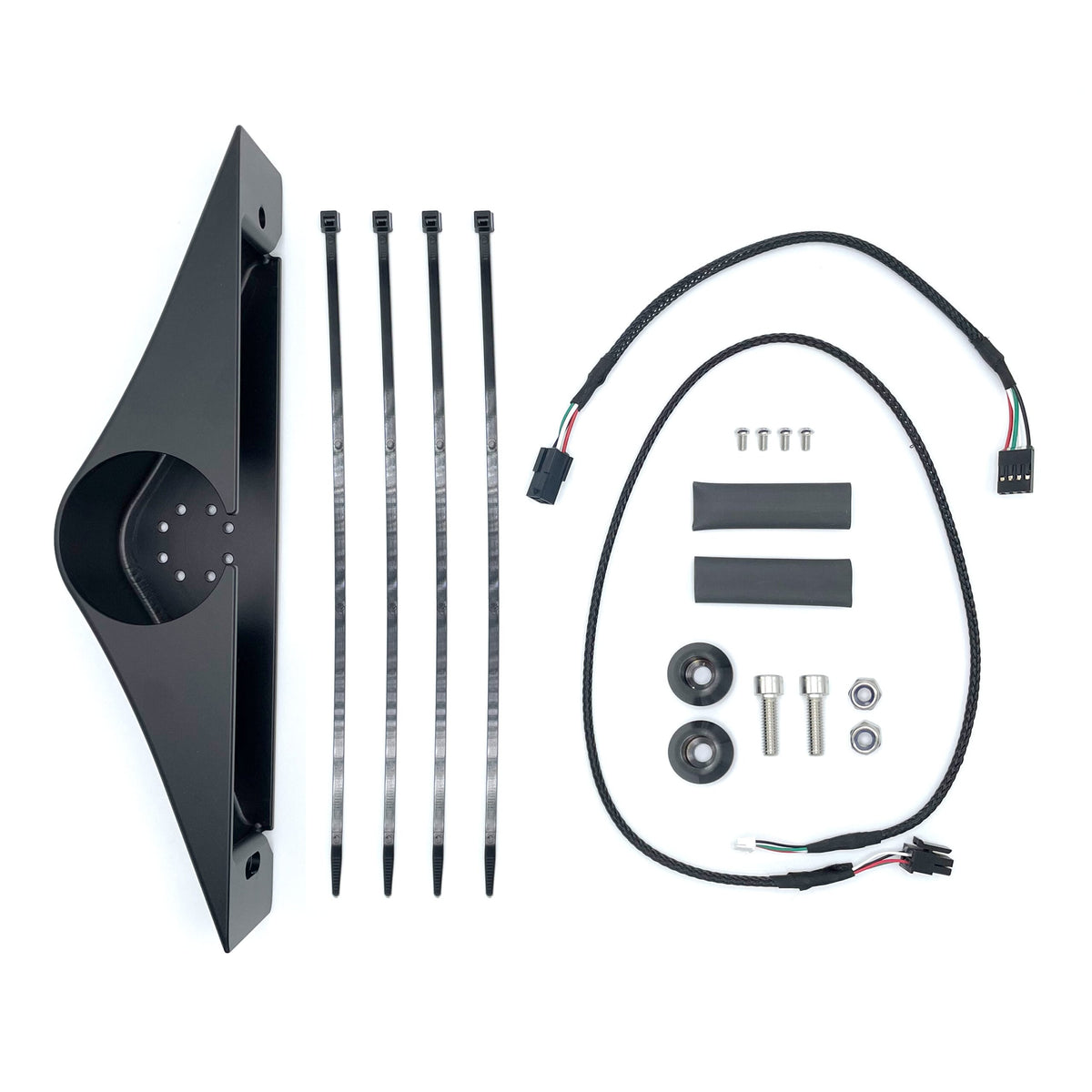

In addition to a purpose-built anodized aluminum mount, the kit includes cables to make it easy to connect the Ping to the BlueBoat’s electronics. The Ping cable is run through the rear fairing of the boat to keep it from getting caught on weeds or creating any disturbance in the water. The included cables have a Molex Microfit connector so that the sonar can be quickly disconnected from the BlueBoat’s starboard electronics, so they can still be quickly removed from the boat.

• 1 x Ping mounting bracket
• 1 x 4-position header-pin to Micro-Fit cable (BR-102410)
• 1 x Micro-Fit to JST GH cable (BR-102403)
• 2 x Adhesive heat shrink (BR-102514)
• 2 x Hull Mount Bushing
• 2 x Nylon insert M6 lock nut (BR-101258)
• 2 x M6x20 socket head cap screw (BR-102241)
• 4 x M3x6 button head cap screw (BR-100192)
• 4 x Cable ties

• Ping Integration Kit for BlueBoat Installation Guide
• Collecting and Creating Bathymetric Maps with the BlueBoat and Ping
