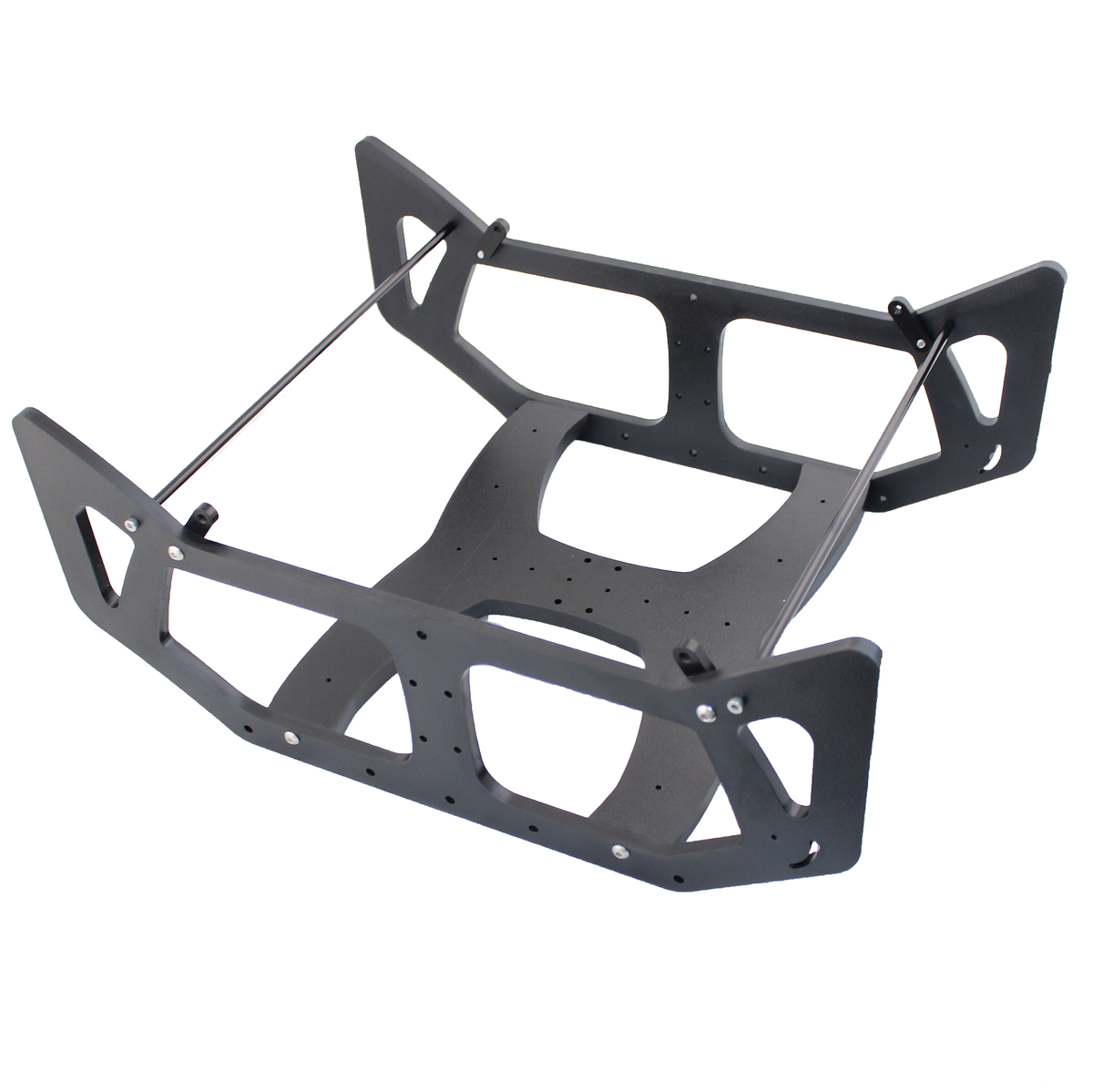

BlueROV2 Payload Skid
€320.00€401.60Excl. VAT — added at checkoutIncl. 25.5% VAT (Finland) — final VAT is calculated at checkout
Ordered for you — ships in about 7 business days
- Delivery across Europe from Finland, other countries on request
- Not sure it fits your build? Ask us — we build on the same platform.
Description
The Payload Skid is a modular frame for the BlueROV2 with mounting points for additional watertight enclosures and lights. Using the Payload Skid, you can add additional large instruments and other equipment to your BlueROV2.
Fitting snugly to the bottom of the ROV, the Payload Skid can host up to an additional two Lumen subsea lights, twelve Ballast Weights, and two 4″ Watertight Enclosures or three 3″ Watertight Enclosures.
What's in the box
- 2 x Payload Skid Side Panel (HDPE)
- 1 x Payload Skid Bottom Panel (HDPE)
- 2 x Standoff
- 4 x Slot nut
- 4 x Payload Skid Mounting Clip (AL6061-T6, type III anodized)
- 8 x M5x16 Button Head Cap Screws (316 Stainless Steel)
- 4 x M5x20 Button Head Cap Screws (316 Stainless Steel)
- 4 x M4x14 Socket Head Cap Screws (316 Stainless Steel)
Technical details
Specifications
| Parameter | Value | |
|---|---|---|
| Length | 475 mm | 18 in |
| Width | 338 mm | 13.3 in |
| Height | 197mm | 7.7in |
| Weight (in air) | 1200g | 2.65lbs |
2D Drawings
3D Models
BROV2_PAYLOAD_SKID_BR-100233 (.zip)
Revision History
24 March 2025
- Mounting clip updated to type III anodizing
25 April 2023
- SKU changed from BROV2-PAYLOAD-SKID-R2-RP to BR-100233
7 June 2022
- R2 - Initial Release
- Position of bottom panel slot nut pockets changed
- Bottom panel screws changed to M5x20
20 October 2016
- R1 - Initial Release
