BlueROV2 Frame
€450.00€564.75Excl. VAT — added at checkoutIncl. 25.5% VAT (Finland) — final VAT is calculated at checkout
Ordered for you — ships in about 7 business days
- Delivery across Europe from Finland, other countries on request
- Not sure it fits your build? Ask us — we build on the same platform.
Description

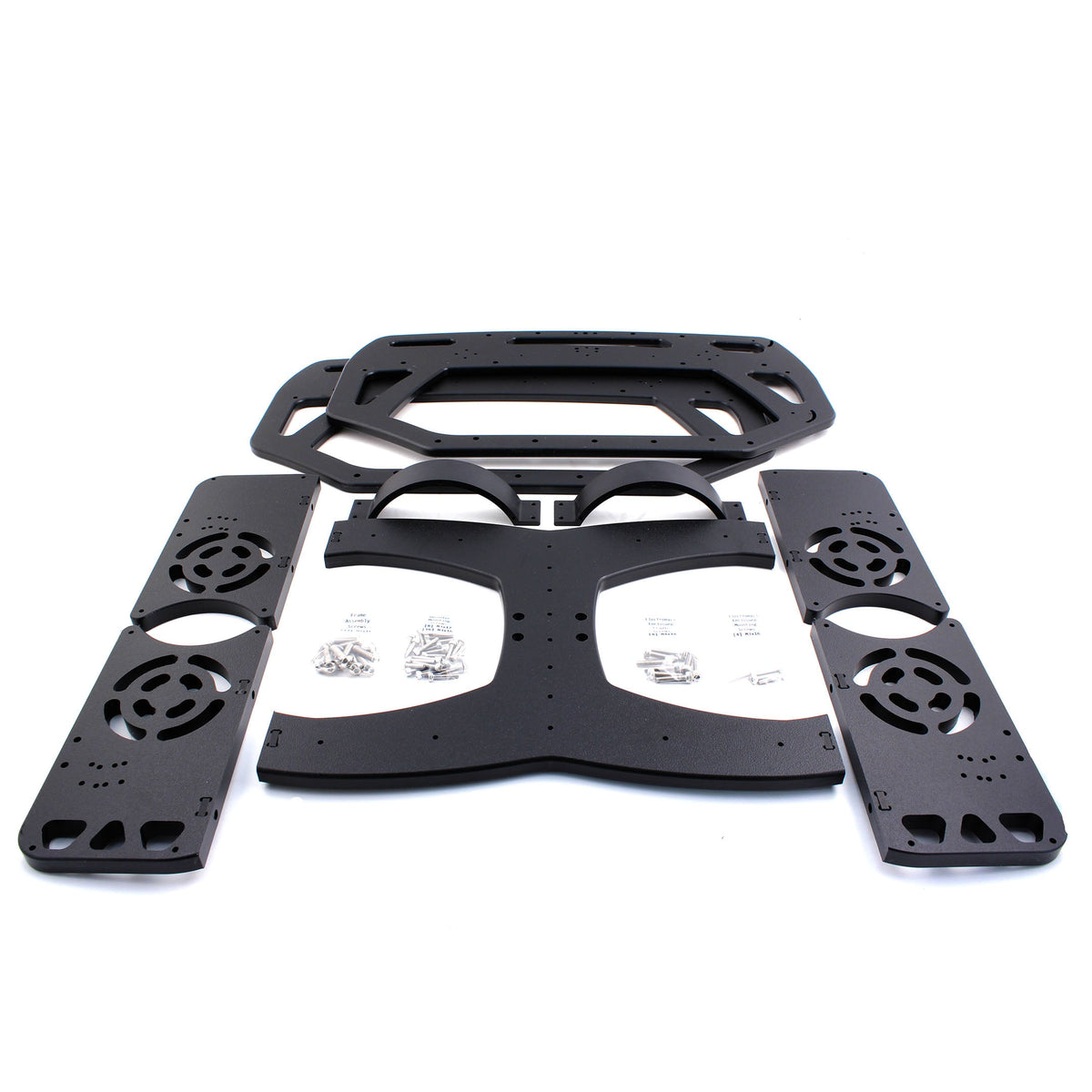

This is just the BlueROV2 frame with black HDPE panels, cradles for the top tube, and all required hardware for assembly.
What's in the box
- 2 x Front center panel (1/2” thick black HDPE)
- 2 x Rear center panel (1/2” thick black HDPE)
- 1 x Bottom panel (1/2” thick black HDPE)
- 2 x Side panel (3/8” thick black HDPE)
- 2 x 4” Series Enclosure Cradle (black anodized aluminum)
- 2 x Electronics Enclosure unified mounting clip
- 12 x M5x4 slot nuts
- Frame Assembly Screws
- 12 x M5x20 socket head cap screw (316 stainless steel)
- Electronics Enclosure Cradle Screws
- 8 x M4x18 socket head cap screw (316 stainless steel)
- Electronics Enclosure Mounting Screws
- 6 x M3x16 socket head cap screw (316 stainless steel)
- Thruster Mounting Screws
- 8 x M3x12 socket head cap screw (316 stainless steel)
- 16 x M3x16 socket head cap screw (316 stainless steel)
Technical details
Revision History
25 April 2023
- SKU changed from BROV2-ASM-FRAME-R3-RP to BR-100710
7 June 2022
- R3 – Initial Release
- Position of slot nut pockets changed
- Enlarged heavy bracket mounting holes
- Pre-drilled Newton Gripper bracket mounting holes
- Electronics Enclosure cradle extensions changed to unified mounting clips
- Frame Assembly Screws changed from M5x16 to M5x20
- 2 x additional M3x16 Electronics Enclosure Mounting Screws added
21 September 2017
- R1 – Initial Release
