Camera Tilt System

€62.00€77.81Excl. VAT — added at checkoutIncl. 25.5% VAT (Finland) — final VAT is calculated at checkout

Ordered for you — ships in about 7 business days

Delivery across Europe from Finland, other countries on request
Not sure it fits your build? Ask us — we build on the same platform.

Description

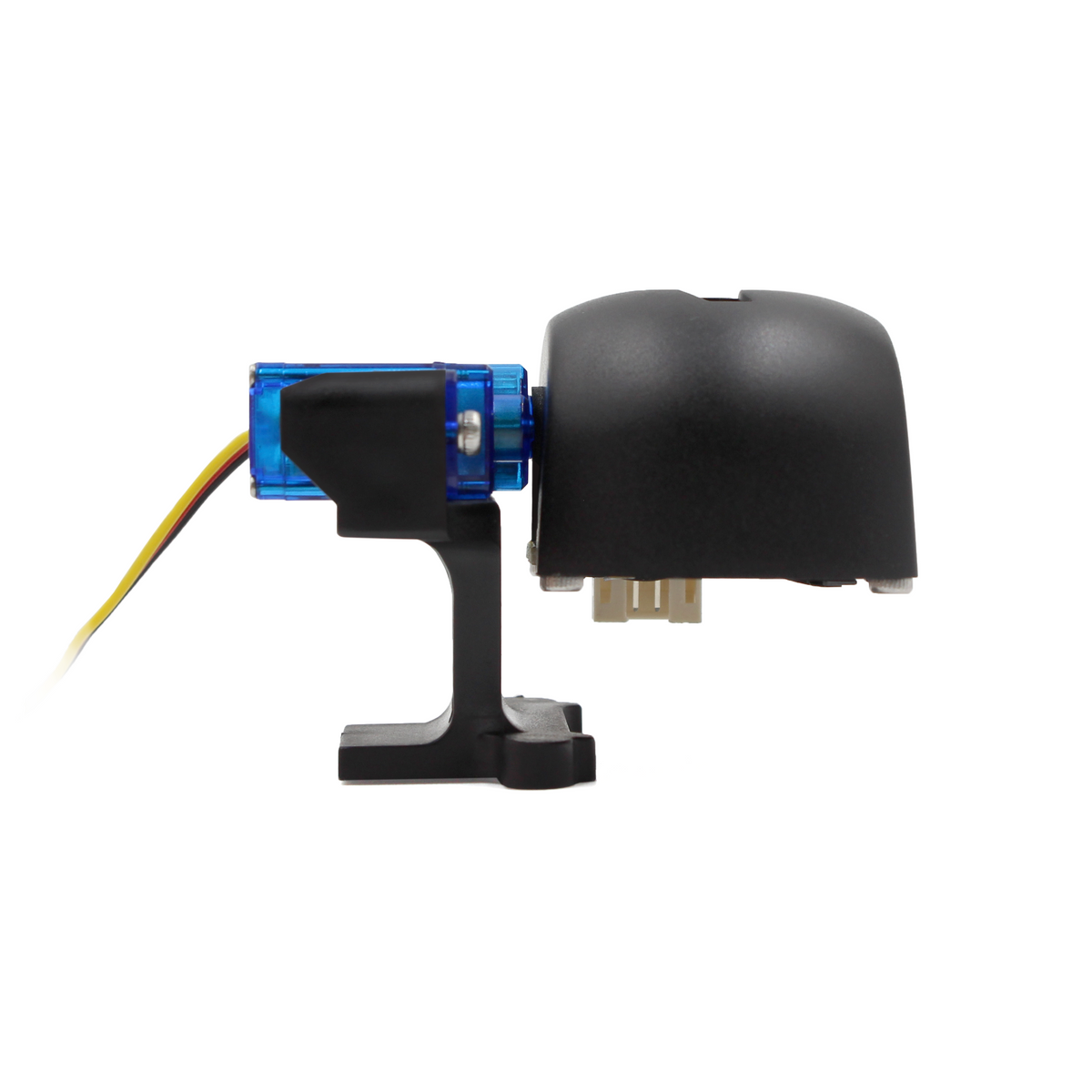

The Camera Tilt System is a tilting camera mount which works seamlessly with the Watertight Enclosure for ROV/AUV (4″ Series) and the Electronics Tray (4″ Series). The tilting servo is the high-quality digital HS-5055MG servo with metal gears. The camera mounts are compatible with our Low-Light HD USB Camera. We have also made the 3D CAD files freely available so that you can modify them to fit your camera or servo!

The Camera Tilt System has proven itself as a stable, robust camera tilting system on the BlueROV2.

What's in the box

1 x HS-5055MG servo
1 x Camera tilt base for USB camera
1 x Camera tilt mount
8 x M2x8mm socket head cap screws

Technical details

Servo Specifications

Parameter	Value
Electrical
Control Signal	Standard 3-5V Pulse Width Control 1500 μs – neutral 1100 μs – 45 ° counter-clockwise 1900 μs – 45 ° clockwise
Speed	0.20 s/60° @ 4.8V 0.17 s/60° @ 6.0V
Torque	18 oz/in @ 4.8V 22 oz/in @ 6.0V	1.2 kg/cm @ 4.8V 1.5 kg/cm @ 6.0V
Physical
Dimensions	0.89in x 0.45in x 0.95in	22.6mm x 11.4mm x 23.9mm
Weight	0.02 lb	9.4 g
Electrical Connector	3-pin female (0.1″ pitch)
Cable Length	7.0 in	178 mm
