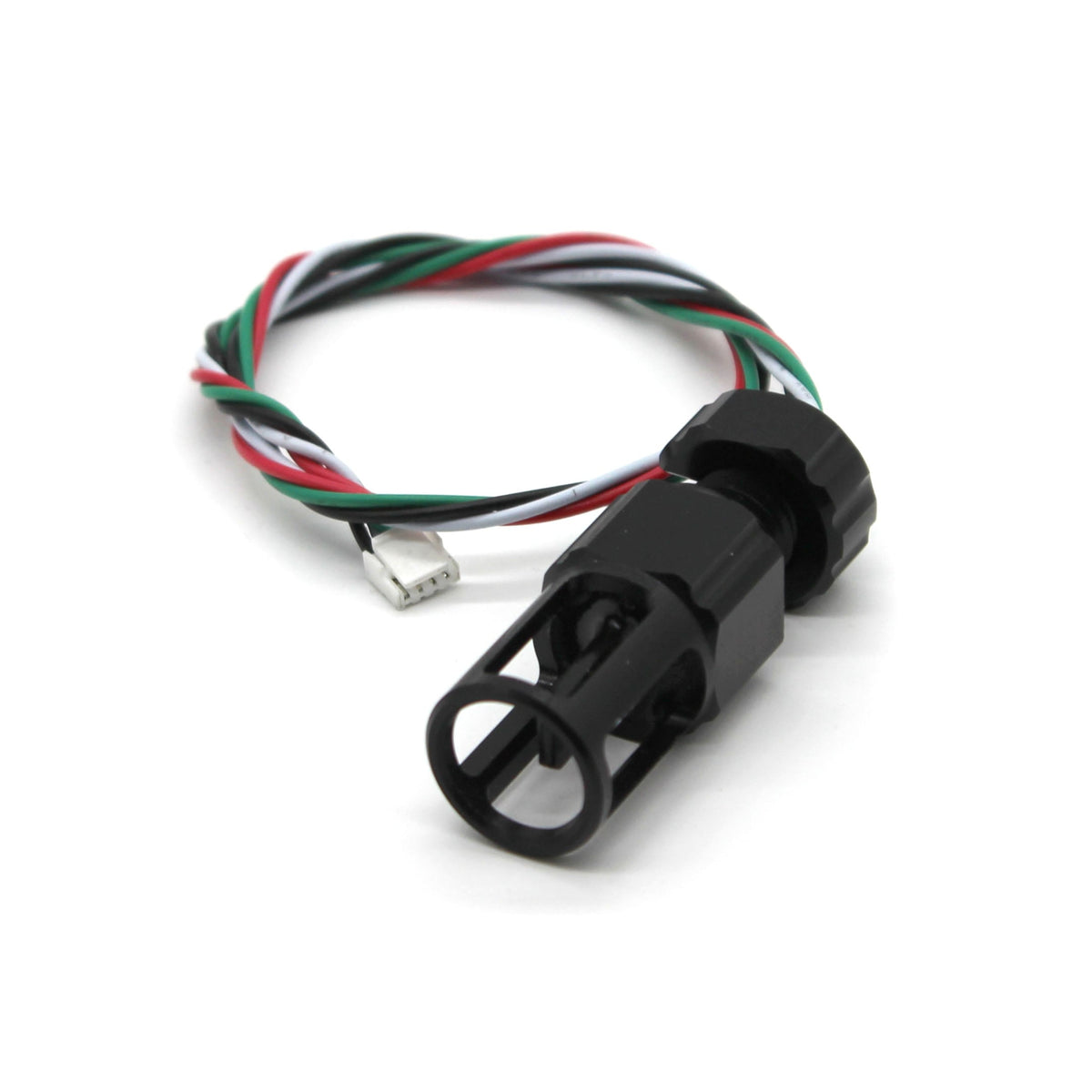

Celsius Fast-Response, ±0.1°C Temperature Sensor (I2C)

€76.00€95.38Excl. VAT — added at checkoutIncl. 25.5% VAT (Finland) — final VAT is calculated at checkout

Ordered for you — ships in about 7 business days

Delivery across Europe from Finland, other countries on request
Not sure it fits your build? Ask us — we build on the same platform.

Description

The Celsius temperature sensor is a fast-response, high-accuracy temperature sensor that is protected by an aluminum cage, and sealed from the water when installed on a watertight enclosure. Use it to make depth/temperature profiles, surface temperature profiles, and accurate measurements in any fluid.

The sensor is the Measurement Specialties TSYS01, which is accurate to ±0.1°C and communicates over I²C. It comes standard with a JST GH connector and compatible with most DroneCode compatible boards including the APM2.6, PixHawk, and others.

The TSYS01 sensor itself has a fast time response and we designed the whole package to maintain that speed to allow accurate temperature profile measurements even while descending/ascending quickly. The Celsius sensor has a response time constant of 1 second (with 0.5 m/s flow) and 2 seconds (in still water).

An anodized aluminum cage around the sensor protects it from damage. The body of the sensor is designed around the cable penetrator design and is compatible with all of the watertight enclosures.

The electrical schematic and board layout are open-source and the design files are available in the Technical Details tab. Feel free to adapt for your own needs.

What's in the box

1 x Celsius Temperature Sensor
1 x O-ring
1 x Nut

Technical details

Specifications

Parameter	Value
Electrical
Supply Voltage	3.3 to 5.5 volts
I²C Logic Voltage (SDA and SCL)	3.3 volts
Peak Current	1.4 mA
Temperature
Operating Temperature	-40 to +125°C	-40 to 257°F
Storage Temperature	-55 to +150°C	-67 to 302°F
Absolute Accuracy	± 0.1°C (between -5 to 50°C)	± 0.18°F
	± 0.5°C (between -40 to 125°C)	± 0.9°F
Pressure
Operating Depth	0 - 975m	0 - 3200 ft
Physical
Recommended Through Hole Size	10.2 mm	13/32"
Interfacing
ArduSub Compatible?	Yes (SCALED_PRESSURE3)
Development Libraries	TSYS01 Arduino, TSYS01 Python, TSYS01 ArduPilot
I²C Address	0x77
Mating Connector	4-pos JST GH available on Digi-Key
Connector Pinout	1 - Red 2 - Green 3 - White 4 - Black	1 - Vin 2 - SCL 3 - SDA 4 - GND
