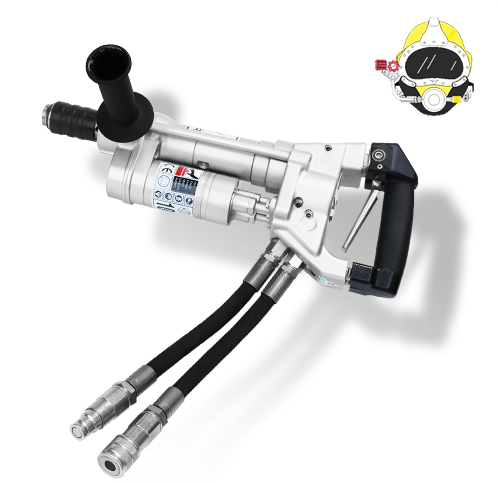

HD 13 Underwater Hydraulic Hammer Drill

Price on requestQuoted for your project, delivery and configuration

Delivery across Europe from Finland, other countries on request
Not sure it fits your build? Ask us — we build on the same platform.

Description

HD 13 is a hydraulic hammer drill for concrete, masonry and natural stone. Powerful and light, it suits work where performance, manoeuvrability and safety matter. Hydraulic operation gives power, long service life, low noise and vibration, minimal maintenance and no risk of electric shock, which makes it well suited to underwater drilling.

High-frequency axial percussion for fast drilling
Universal SDS MAX bit attachment; SDS PLUS bits with an adapter
Few moving parts, constantly oil-lubricated

Supplied in DOA's underwater version.

Hydraulic tools need a hydraulic power pack or a machine with a suitable hydraulic circuit (see oil flow and pressure in the technical data).

Technical details

Technical data

Weight	13 kg
Dimensions L × W	50 × 19 cm
Spindle type	SDS MAX
Bit size	5–50 mm
Oil flow	20–30 L/min
Ideal flow	20 L/min
Pressure	140 bar
Blow frequency	1200 bpm
Rotation	900 rpm
Hole centre to wall	55 mm
