JST GH Extension Cables
€6.00€7.53Excl. VAT — added at checkoutIncl. 25.5% VAT (Finland) — final VAT is calculated at checkout
Ordered for you — ships in about 7 business days
- Delivery across Europe from Finland, other countries on request
- Not sure it fits your build? Ask us — we build on the same platform.
Description
Have you ever tried to find a JST GH cable with a plug on one end and a free-hanging receptacle on the other? They’re impossible to find! We couldn’t find any, so we made our own, and now you can get them here.

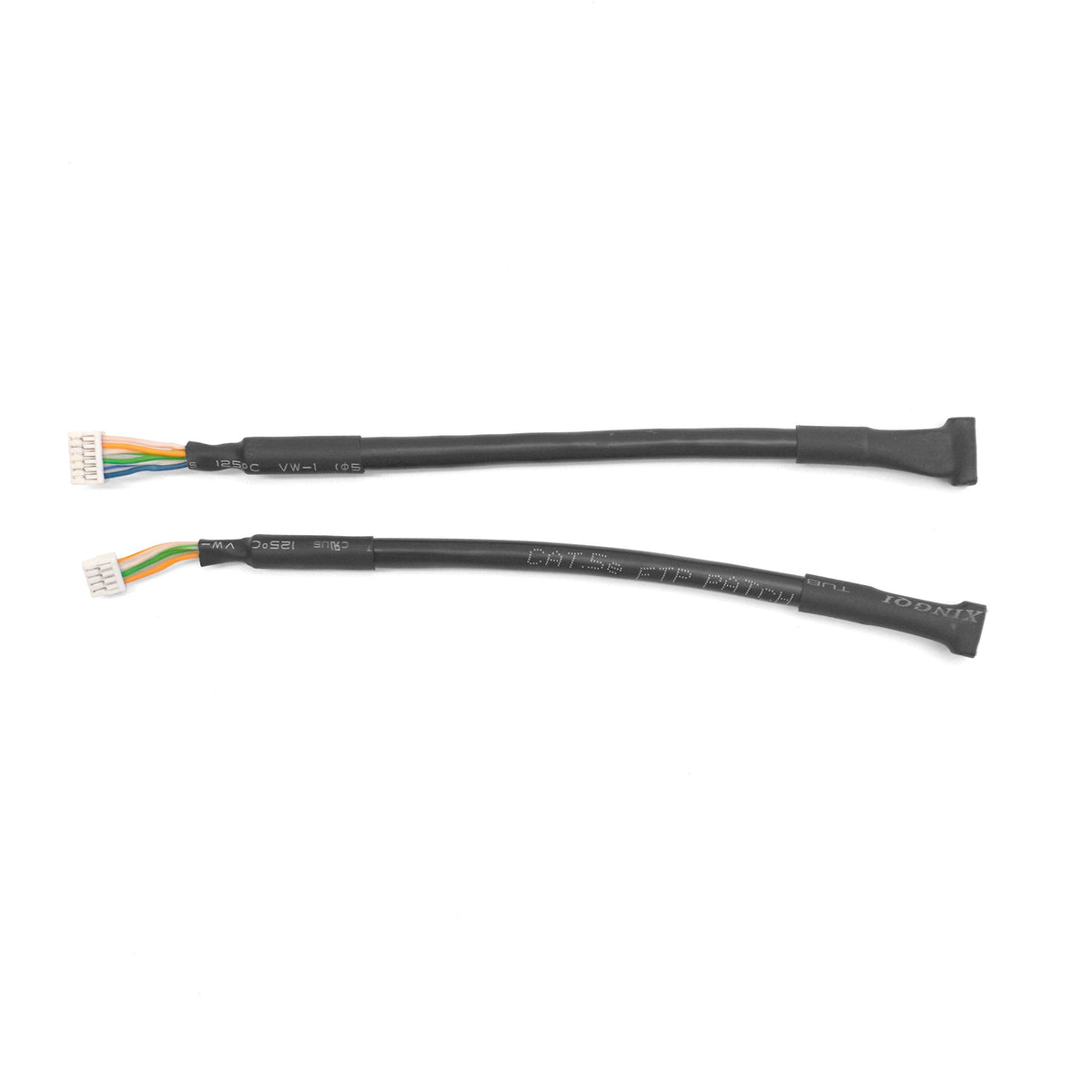

Each extension cable has a JST GH plug on one end and a receptacle on the other. Available in 4-pin and 6-pin versions in 150 mm, 300 mm, and 600 mm lengths. The 4-pin version has two twisted pairs (pins 1-4 and 2-3) and the 6-pin version has 3 twisted pairs (pins 1-2, 3-4, and 5-6).
These cables follow the Blue Robotics Connector Standard for Ethernet and serial connections but can be used for general purpose JST GH connections too.
What's in the box
- 1 x JST GH extension cable (based on selection)
Technical details
Specifications
| Version | 4-pin Versions | 6-pin Versions |
|---|---|---|
| Receptacle Connector (header) | SM04B-GHS-TB | SM06B-GHS-TB |
| Plug Connector (housing) | GHR-04V-S | GHR-06V-S |
| Conductor Gauge | 26 AWG | |
| Shielded | Yes | |
| Pin Current Rating | 1 A (26 AWG) (AC/DC) | |
| Pin Voltage Rating | 50 V (AC/DC) | |
| Maximum Axial Rated Force | 2.27 kg | |
| Temperature Rating (air) | -25 to 60°C | |
| Temperature Rating (water) | 0 to 40°C | |
| Pinout | Straight-through 1:1 1-1 (White/Orange) 2-2 (White/Green) 3-3 (Green) 4-4 (Orange) | Straight-through 1:1 1-1 (White/Orange) 2-2 (Orange) 3-3 (White/Green) 4-4 (Green) 5-5 (White/Blue) 6-6 (Blue) |
| Twisted Pairs | 1,4 2,3 | 1,2 3,4 5,6 |
| Cable Length | 150±20 mm 300±20 mm 600±20 mm |
|
| Cable Diameter | 5 mm | |
Revision History
18 March 2026
- BR-103531-150, 4-pin - 150 mm – Initial release
- BR-103531-300, 4-pin - 300 mm – Initial release
- BR-103531-600, 4-pin - 600 mm – Initial release
- BR-105019-150, 6-pin - 150 mm – Initial release
- BR-105019-300, 6-pin - 300 mm – Initial release
- BR-105019-600, 6-pin - 600 mm – Initial release
