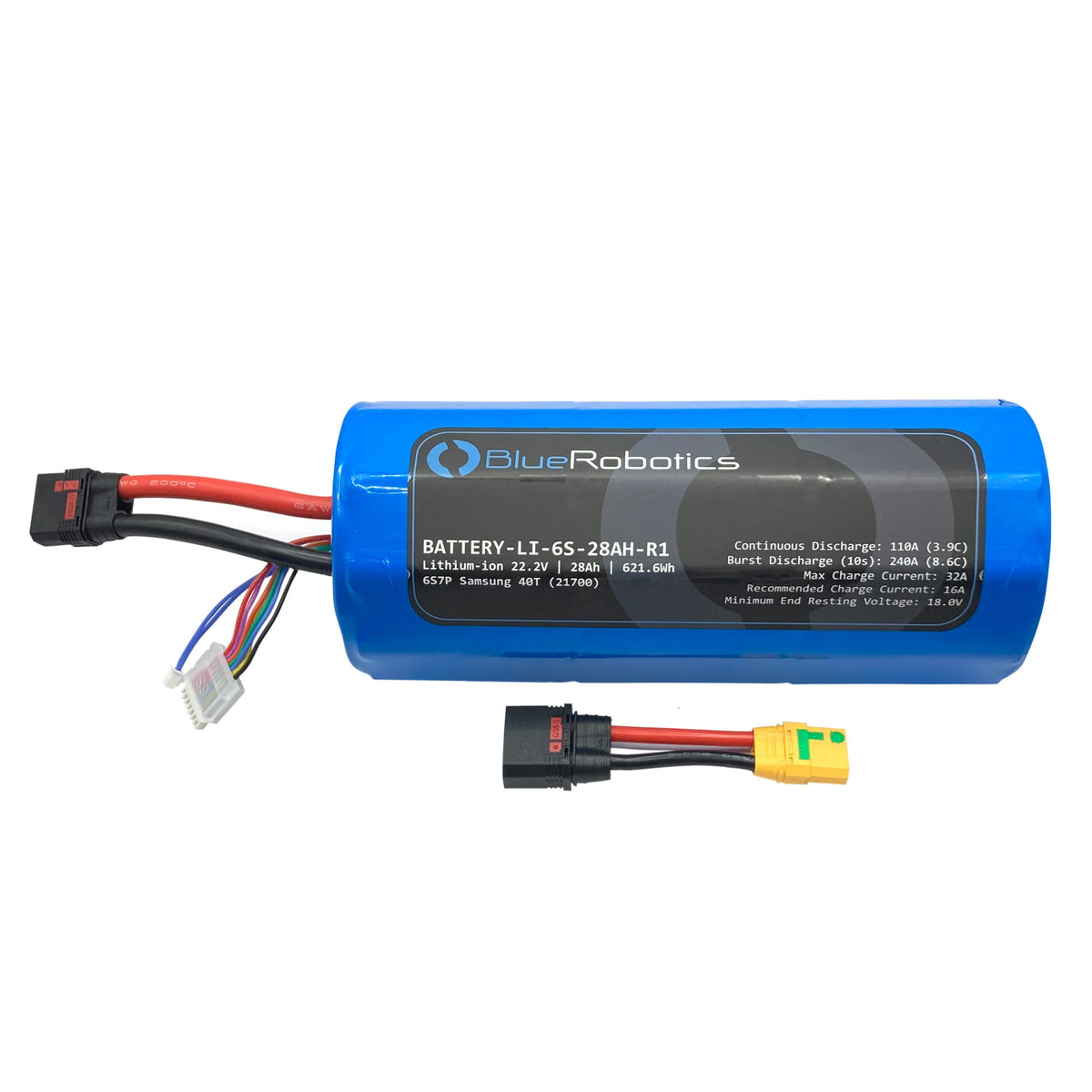

Lithium-ion Battery (22.2V, 28Ah)
€1,490.00€1,869.95Excl. VAT — added at checkoutIncl. 25.5% VAT (Finland) — final VAT is calculated at checkout
Ordered for you — ships in about 7 business days
- Lithium battery: ships as dangerous goods — €50 within Finland, €200 to Europe (excl. VAT). Not shipped outside Europe.
- Not sure it fits your build? Ask us — we build on the same platform.
What's in the box
- 1 x Lithium-ion Battery (22.2 V, 28 Ah)
- 1 x QS8-S to XT90S Adapter
Technical details
Specifications
| Parameter | Value | |
|---|---|---|
| Electrical | ||
| Nominal Voltage | 22.2 V | |
| Fully Charged Voltage | 25.2 V | |
| Nominal Capacity | 28.0 Ah | 621.6 Wh |
| Cell Configuration | 6S7P | |
| Maximum Continuous Current Draw1 | 110 A | 3.9 C |
| Maximum Burst Current Draw (10s)1 | 240 A | 8.6 C |
| Maximum Charge Current | 32 A | 1.2 C |
| Recommended Charge current | 16 A | 0.5 C |
| Minimum End Resting Voltage | 18 V | 3.0 V/Cell |
| Discharge Connector | QS8-S (XT90S adapter included2) | |
| Discharge Wire Gauge | 6 AWG | |
| Balance Plug | 7 pin JST XH | |
| Thermistor Plug | 2 pin JST XH | |
| Thermistor Type | NTC, β = 3435K | |
| Thermistor Resistance | R 25 = 10kΩ, ±1% (at 25°C) | |
| Thermistor Working Temperature | -40–110°C | -40–230°F |
| Physical (Typical) | ||
| Diameter (max) | 98.5 mm | |
| Cells Length (max) | 230 mm | |
| Lead Length | 85 mm | |
| Weight | 3.2 kg | |
| 1 See Discharging information in the "Guides" tab for more information. 2 Maximum continuous current should be limited to 90 A when using the XT90S adapter. |
||
3D Models
BATTERY-LI-6S-28AH-ADAPTED-R1 (.zip)
Documents
Battery MSDS (.pdf)
UN38.3 Test Report (.pdf)
CE Certificate of Compliance (.pdf)
Revision History
14 July 2023
- BATTERY-LI-6S-28AH-ADAPTED-R1-RP SKU changed to BR-100313
13 March 2023
- R1 - Initial Release
