Newton Sediment Sampler Attachment

€290.00€363.95Excl. VAT — added at checkoutIncl. 25.5% VAT (Finland) — final VAT is calculated at checkout

Ordered for you — ships in about 7 business days

SKU BR-102559

  • Delivery across Europe from Finland, other countries on request
  • Not sure it fits your build? Ask us — we build on the same platform.

Description

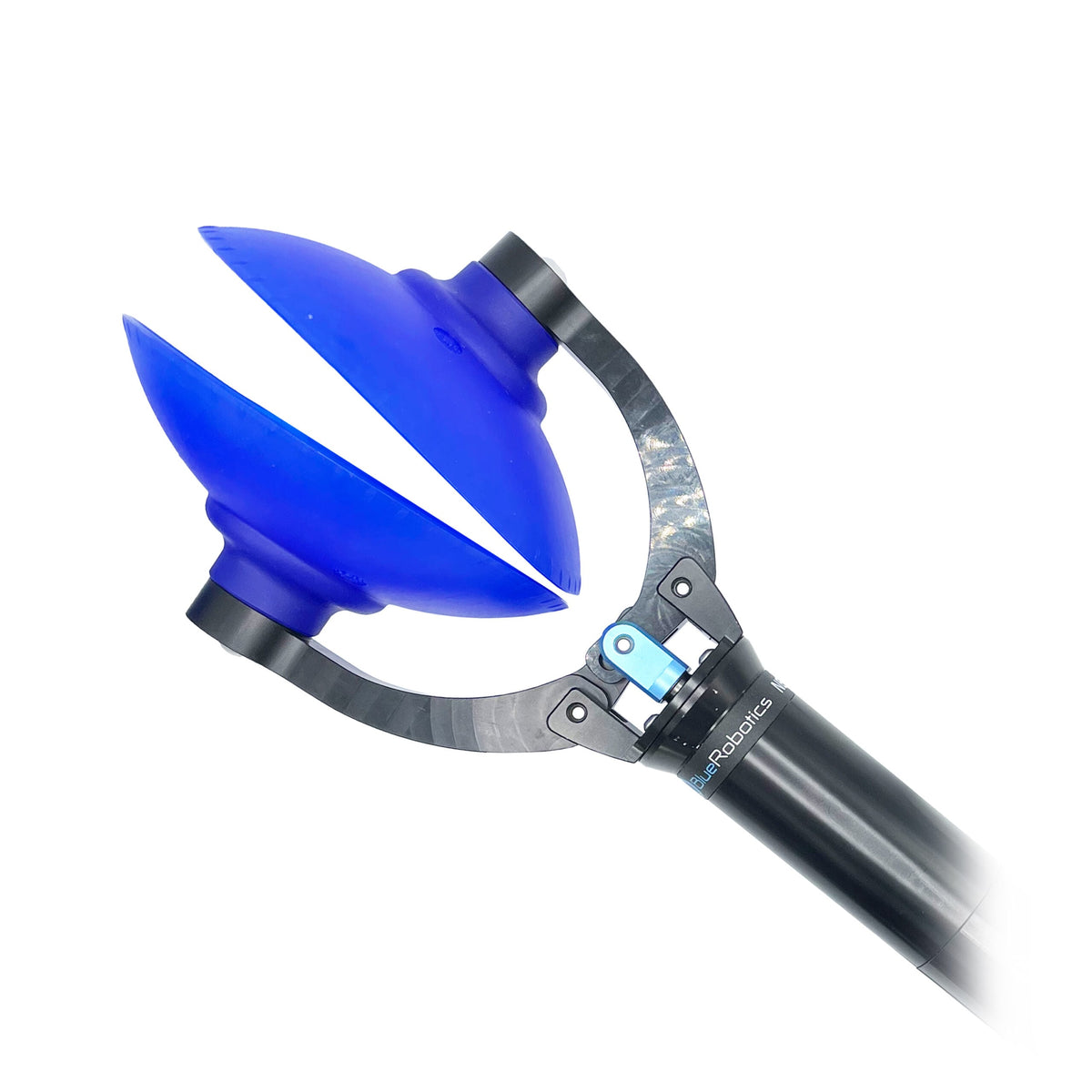

This one’s for all the geologists, sedimentologists, pedologists, and arenologists out there. The Newton Sediment Sampler Attachment turns your ROV into a sediment collecting tool to gather samples from the seafloor!

Two arms replace the jaws on the gripper and hold rubber cups with a total capacity of 300cc, AKA 300mL, 1.25 cups, or 10 fl oz. The rubber cups conform to the sample, particularly if there are any large objects in it, and loosely seal to keep sediment in place while you return to the surface.

Swapping to the sediment sampler only takes a few minutes, so you can switch between the gripper and sampler attachments depending on your mission each day! Check out the sediment sampler guide to learn more about how to install and use the sampler.

What's in the box

  • 1 x Sediment sampler inner arm (BR-102228)
  • 1 x Sediment sampler outer arm (BR-102446)
  • 2 x Sediment sampler cup (BR-102447)
  • 2 x Cup mount (BR-102230)
  • 3 x Bearing screw (BR-101024)
  • 2 x M5x16 button head screw (BR-101091)

Technical details

Specifications

ParameterValue
Performance
Max Collection Volume300 cc
Physical
Cup Diameter120 mm
Cup Depth25 mm
Wetted MaterialsPolyurethane 70A
POM
Stainless steel 316

2D Drawings

Drawing

Drawings show attachment installed on the Newton Gripper. The Newton Gripper is sold separately.

3D Models

NEWTON_SEDIMENT_SAMPLER_ATTACHMENT_BR-102559 (.zip)

Revision History

14 February 2024

  • BR-102559 - Initial release
