Power Sense Module
Ordered for you — ships in about 7 business days
- Delivery across Europe from Finland, other countries on request
- Not sure it fits your build? Ask us — we build on the same platform.
Description
The Power Sense Module (PSM) provides analog current and voltage sensing to your Navigator Flight Controller or Pixhawk autopilot mounted either on your BlueROV2 or custom marine robotics project. ArduSub firmware supports the Power Sense Module and through QGroundControl will give you visual indications of battery level and current consumption.
This module uses a hall effect current sensor for excellent accuracy at low current draw.
Unlike standard power modules, the Power Sense Module will NOT provide 5V power, only current and voltage sense. On the BlueROV2, the Navigator Flight Controller is powered from multiple sources so this 5V power supply is not needed.

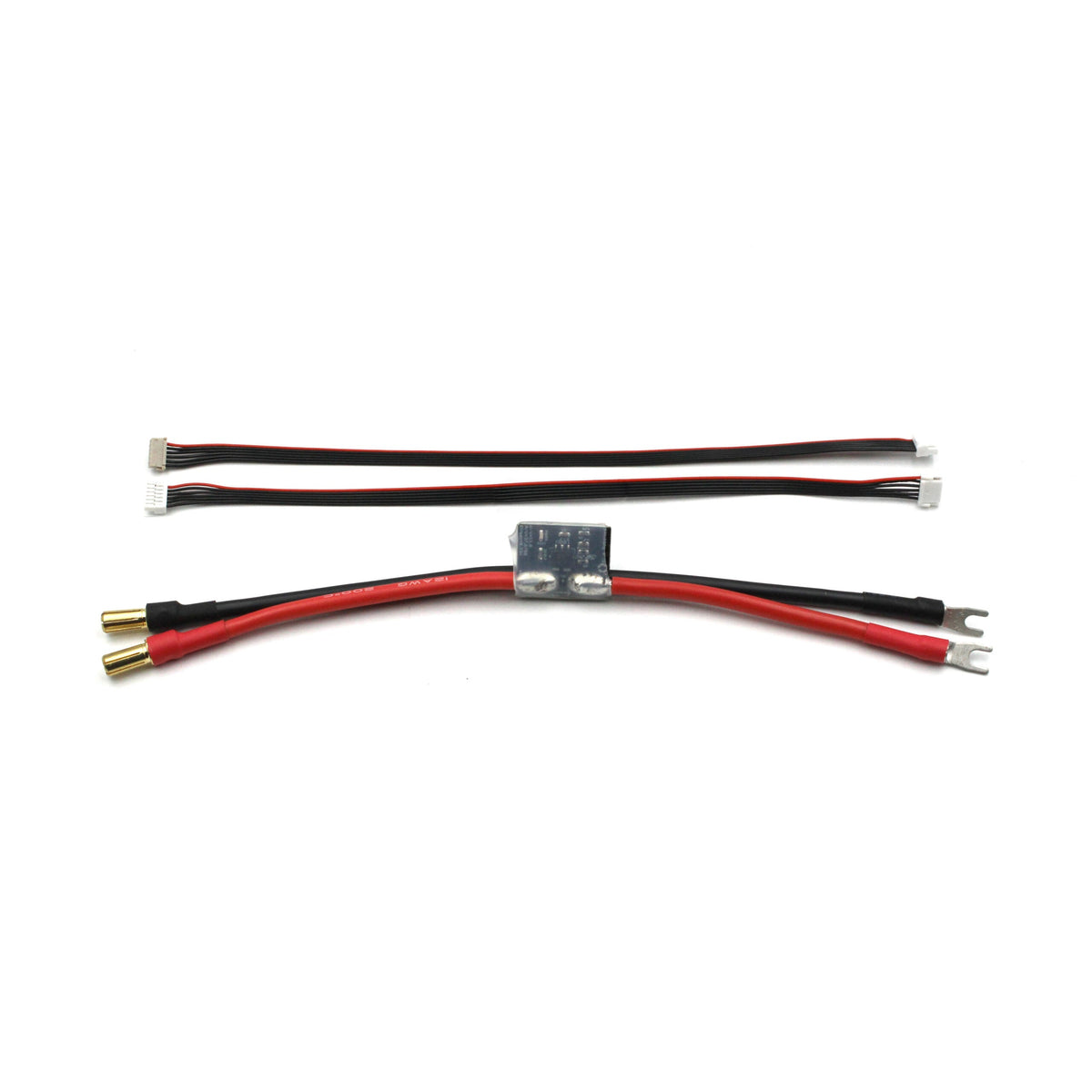

What's in the box
- 1 x Power Sense Module with pre-installed 5.5mm bullet connectors and spade connectors
- 1 x 200mm DF13 to JST-GH cable
- 1 x 200mm JST-GH to JST-GH cable
Technical details
Specifications
| Parameter | Value | |
|---|---|---|
| Electrical | ||
| Max Voltage Input | 25.2 V (6S) | |
| Max Current Sensing | 100 A (non-continuous) | |
| Voltage Sense Output | 11.0 V/V | |
| Current Sense Output | 37.8788 A/V (offset by 0.330 V) | |
| Output Connector | Non-insulated #6 spade | |
| Input Connector | 5.5 mm bullet connector | |
| Physical (Board Dimensions) | ||
| Length | 24 mm | 0.94 in |
| Width | 19 mm | 0.75 in |
| Height (without header pins) | 7 mm | 0.28 in |
| Power Pin Out | ||
| Pin | Signal | Volt |
| 1 (red) | NOT CONNECTED | |
| 2 (blk) | NOT CONNECTED | |
| 3 (blk) | CURRENT | +3.3 V |
| 4 (blk) | VOLTAGE | +3.3 V |
| 5 (blk) | GND | GND |
| 6 (blk) | GND | GND |
Documents
PSM-ELEC-PCB-R2 (.pdf)
Revision History
29 June 2023
- PSM-ASM-R3-RP SKU changed to BR-101108
13 September 2021
- R3 - Initial release
- Changed 3.5 mm bullet connectors to 5.5 mm bullet connectors
12 December 2018
- Changed XT60 connector to 3.5 mm bullet connectors
10 October 2018
- R2 - Initial release
