SOS Leak Sensor

Blue Robotics

SOS Leak Sensor

€35.00€43.93Excl. VAT — added at checkoutIncl. 25.5% VAT (Finland) — final VAT is calculated at checkout

Ordered for you — ships in about 7 business days

SKU BR-101072

  • Delivery across Europe from Finland, other countries on request
  • Not sure it fits your build? Ask us — we build on the same platform.

Description

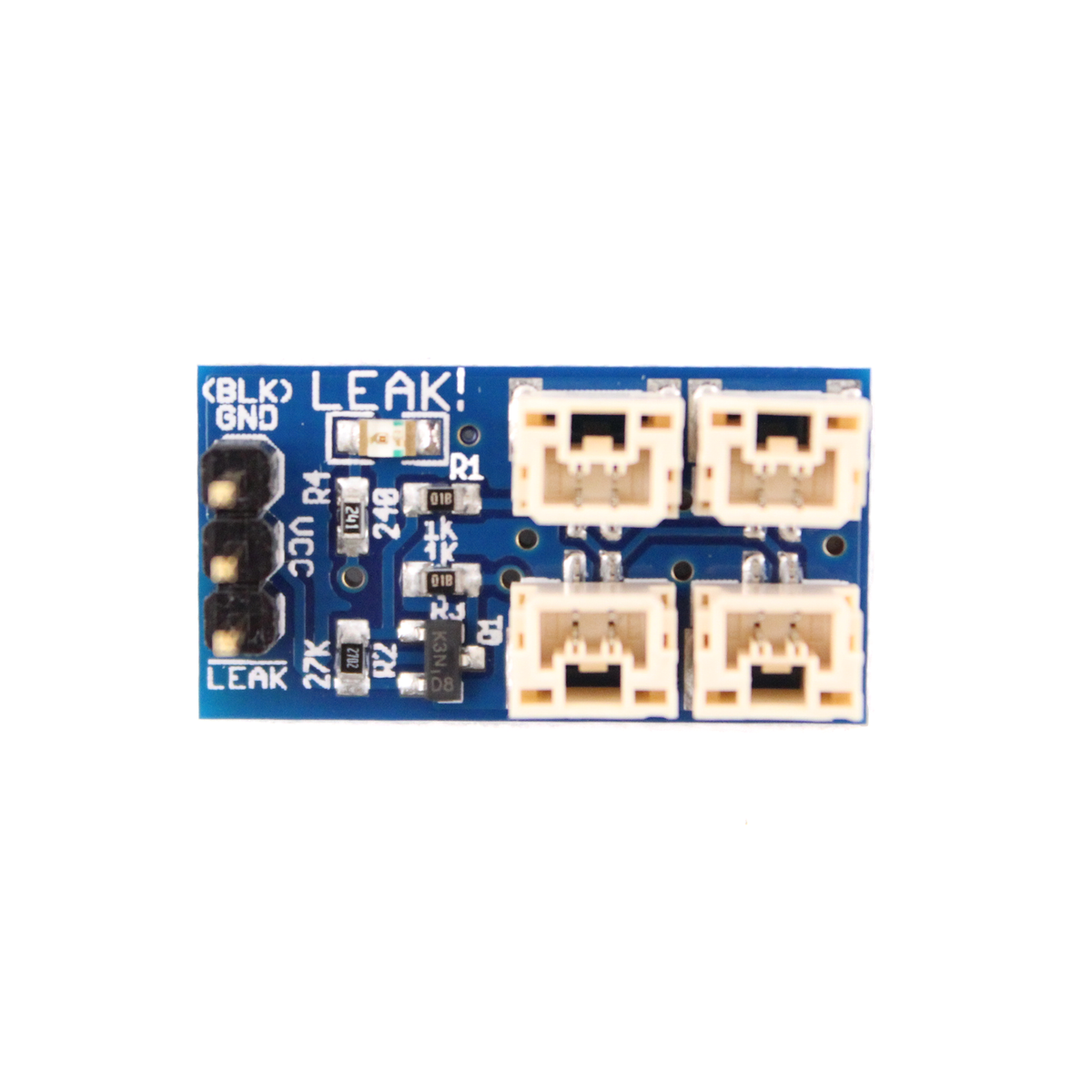

The SOS Leak Sensor can detect water leaking into an improperly sealed Watertight Enclosure quickly and reliably, before any major damage can occur! Though we are confident in the quality of our Watertight Enclosures and a leak is unlikely, the SOS Leak Sensor will give you additional peace of mind that your electronics are safe.

Four re-usable sponge tipped probes with an adhesive backing let you monitor all corners of a Watertight enclosure, from the penetrators to the front and rear flanges. When a leak is detected, the signal is pulled high to VCC and bright red LED shines, making it easy to integrate with an Arduino, Raspberry Pi, Pixhawk, and many other 3.3v or 5v devices. The ArduSub firmware supports the SOS Leak Sensor on the Pixhawk by default.

What's in the box

  • 1 x SOS Leak Sensor Probe Host Board
  • 2 x 6″ Probes
  • 2 x 12″ Probes
  • 4 x Replacement Probe Tips
  • 1 x 4″ Three Pin Extension Cable
  • 1 x Double Sided Foam Tape
  • 8 x Zip Ties

Technical details

Specifications

ParameterValue
Operating Voltage3.3 - 5 V
Maximum Current Draw20 mA
Output Connector3 pin 0.1" header
Input Connector4 x 2 pin JST-GH

2D Drawings

SOS 2D Drawing

3D Models

SOS-ASM-LEAK-SENSOR-R1 (.zip)

Documents

SOS-LEAK-SENSOR-SCHEMATIC (.pdf)

Revision History

6 July 2023

  • SOS-SET-R1-RP SKU changed to BR-101072

22 November 2016

  • R1 - Initial Release
