Watertight Enclosure Spare O-Ring Set

Watertight Enclosure Spare O-Ring Set

€2.00€2.51Excl. VAT — added at checkoutIncl. 25.5% VAT (Finland) — final VAT is calculated at checkout

Ordered for you — ships in about 7 business days

Delivery across Europe from Finland, other countries on request
Not sure it fits your build? Ask us — we build on the same platform.

Description

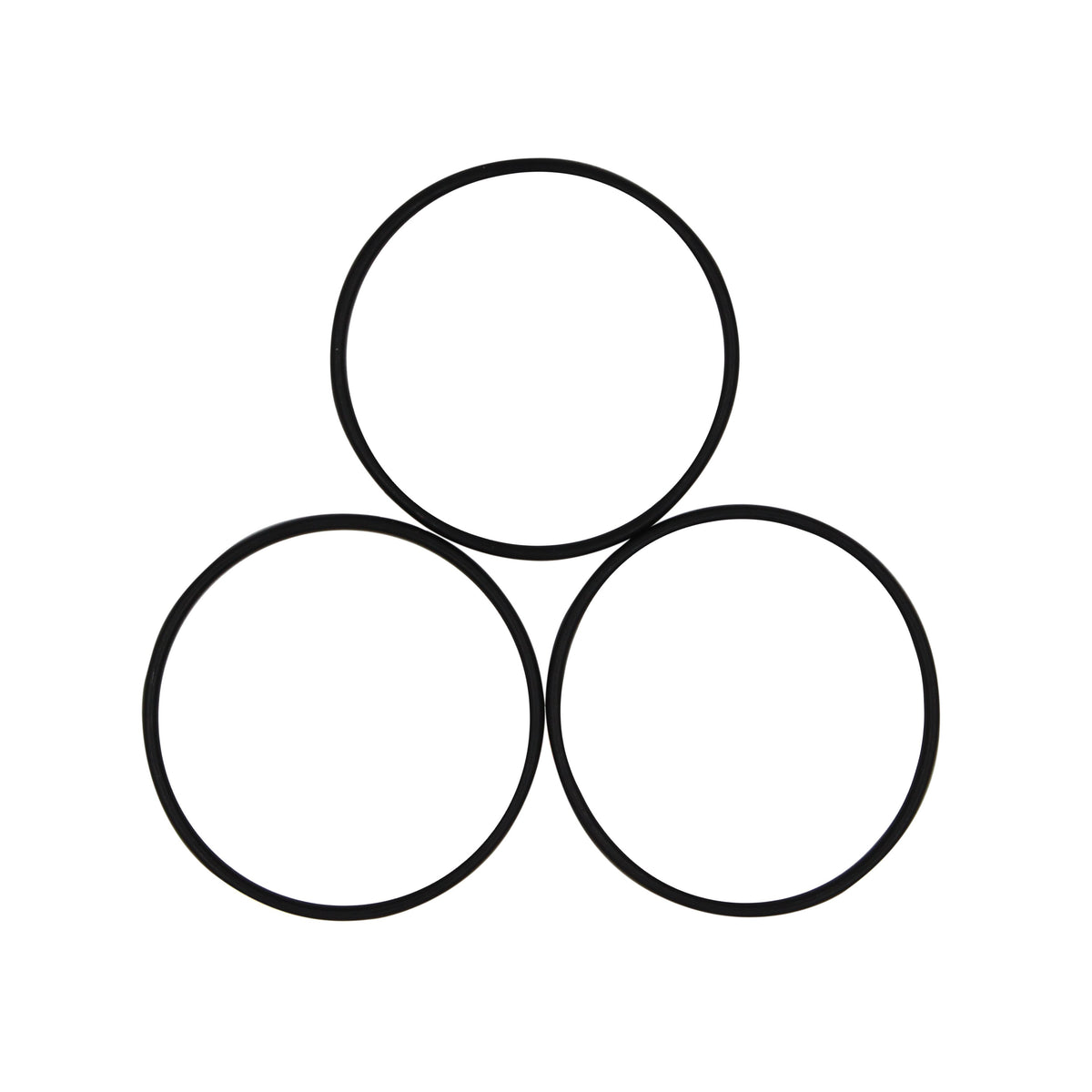

A spare set of O-rings for use with 2″, 3″, 4″, 5″, 6″, or 8″ O-Ring Flanges and Flange Caps. Includes three O-rings.

What's in the box

1 x Face Seal O-ring (see technical details for size)
2 x Radial Seal O-ring (see technical details for size)

Technical details

Specifications

Series Diameter	Face Seal O-ring	Radial Seal O-ring	Material	Hardness
50 mm (2")	AS568-030	AS568-031	Buna-N	70A
75 mm (3")	AS568-148	AS568-150	Buna-N	70A
100 mm (4")	AS568-154	AS568-154	Buna-N	70A
125 mm (5")	AS568-157	AS568-248	Buna-N	70A
150 mm (6")	AS568-162	AS568-255	Buna-N	70A
200 mm (8")	AS568-170	AS568-265	Buna-N	70A

Revision History

19 February 2025

BR-100085, 50 mm (2")
Radial seal O-ring size changed from AS568-030 to AS568-031

12 November 2024

BR-103059, 130 mm (5") - Initial release
BR-103063, 150 mm (6") - Initial release
BR-103065, 200 mm (8") - Initial release

14 June 2023

WTE4-O-RING-SET-R2-RP SKU changed to BR-100176

8 June 2023

WTE3-O-RING-SET-R2-RP SKU changed to BR-101007

1 June 2023

WTE2-LOCKING-O-RING-SET-R1-RP SKU changed to BR-100085

18 May 2022

WTE3-O-RING-SET-R2-RP - Initial release
WTE4-O-RING-SET-R2-RP - Initial release

19 November 2019

WTE2-LOCKING-O-RING-SET-R1-RP - Initial release

Documentation
