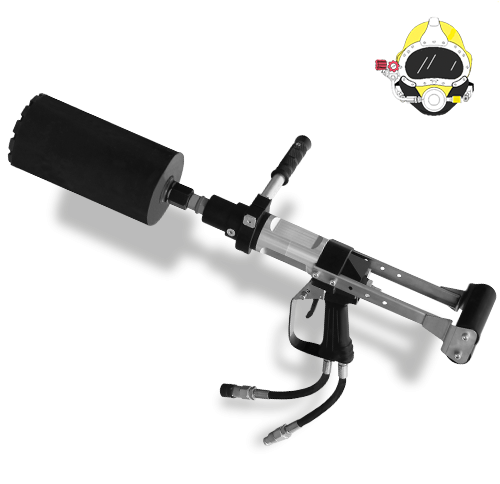

AK 46 Underwater Hydraulic Core Drill

Price on requestQuoted for your project, delivery and configuration

Delivery across Europe from Finland, other countries on request
Not sure it fits your build? Ask us — we build on the same platform.

Description

AK 46 is a hydraulic core drill for hand-held use or on a drill rig, in two configurations: AK 46 S for holes Ø 30–100 mm and AK 46 G for Ø 80–160 mm. Hydraulic drive cannot cause electric shocks and works fully submerged, with no vibration or noise, an excellent weight-to-power ratio and a motor that is not damaged by prolonged stalling or overload.

Safety valve cuts rotation automatically if the core bit jams
ON/OFF trigger with lock-on button for drill-rig use
Level gauge for straight vertical or horizontal holes
Ergal and stainless steel construction
Adjustable back handle to push with chest or knee; long side handle

Supplied in DOA's underwater version.

Hydraulic tools need a hydraulic power pack or a machine with a suitable hydraulic circuit (see oil flow and pressure in the technical data).

Technical details

Technical data

	AK 46 S (Ø 30–100 mm)	AK 46 G (Ø 80–160 mm)
Weight	8 kg (without back handle)	8 kg (without back handle)
Dimensions L × W × H	40 × 9 × 32 cm	40 × 9 × 32 cm
Hole diameter	30–100 mm	80–160 mm
Oil flow	20–30 L/min	20–30 L/min
Speed @ 20 L/min	1000 rpm	400 rpm
Speed @ 30 L/min	1500 rpm	600 rpm
Pressure	140–180 bar	140–180 bar
Crown to wall	45 mm	45 mm
Core bit attachment	External 1 1/4" BSP male, internal 1/2" BSP female	External 1 1/4" BSP male, internal 1/2" BSP female
