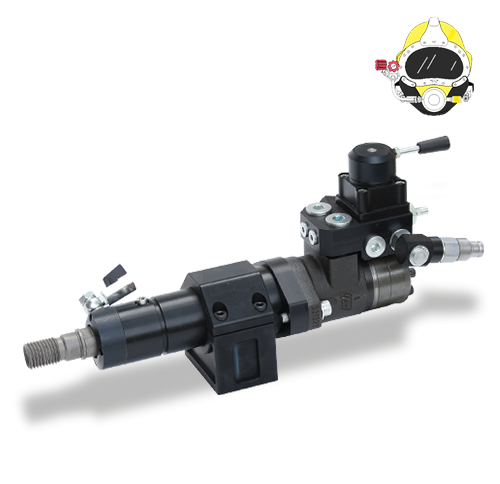

AK 50 Underwater Hydraulic Core Drill

Price on requestQuoted for your project, delivery and configuration

Delivery across Europe from Finland, other countries on request
Not sure it fits your build? Ask us — we build on the same platform.

Description

AK 50 is a heavy-duty hydraulic core drill for holes up to Ø 700 mm. The tool is supplied with one motor/valve group chosen to suit the hole diameter; six motors are available, orbital type for high efficiency and long service life (the 20 cc motor for small diameters is a gear motor). Additional motor/valve groups are available separately. The drill rig is not included.

Six motor options from 20 cc to 315 cc
Motor power 9 kW at 38 L/min and 140 bar

Supplied in DOA's underwater version.

Hydraulic tools need a hydraulic power pack or a machine with a suitable hydraulic circuit (see oil flow and pressure in the technical data).

Technical details

Technical data

Weight	13 kg
Dimensions L × H	54 × 22 cm
Oil flow	30–38 L/min
Pressure	120–200 bar
Motor power	9 kW (38 L/min, 140 bar)
Speed	90–1750 rpm
Core bit attachment	External 1 1/4" BSP male, internal 1/2" BSP female

Motor range

Motor	@ 30 L/min	@ 38 L/min
20 cc (K0283)	1400 rpm, Ø 40–100 mm	1750 rpm, Ø 30–60 mm
50 cc (K0116)	600 rpm, Ø 70–120 mm	760 rpm, Ø 50–100 mm
100 cc (K0114)	300 rpm, Ø 130–250 mm	380 rpm, Ø 130–180 mm
160 cc (K0112)	180 rpm, Ø 300–360 mm	220 rpm, Ø 250–310 mm
200 cc (K0118)	150 rpm, Ø 400–600 mm	190 rpm, Ø 250–400 mm
315 cc (K0119)	90 rpm, Ø 500–700 mm	120 rpm, Ø 450–600 mm
