AS 23 Underwater Hydraulic Grinder

Price on requestQuoted for your project, delivery and configuration

Delivery across Europe from Finland, other countries on request
Not sure it fits your build? Ask us — we build on the same platform.

Description

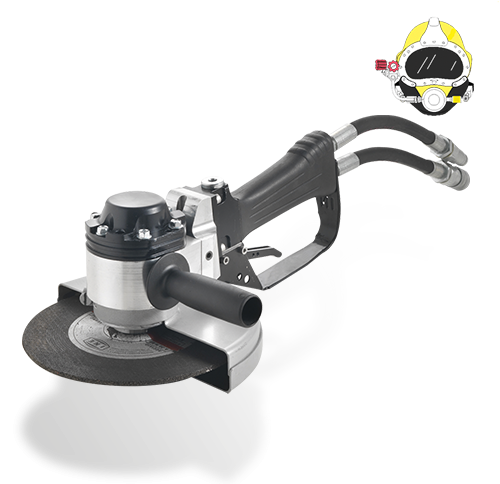

AS 23 is a compact hydraulic angle grinder and cut-off saw for 230 mm (9") discs. It takes standard discs or wire brushes for cleaning ship hulls and propellers of marine growth, and with a cutting disc it becomes a precise cut-off saw that can be worked right around large pipes in tight spaces. Hydraulic operation gives power, quiet running, long life and no risk of electric shock.

Robust DOA hydraulic motor keeps its speed under heavy load
Runs at 20 or 30 L/min (choose when ordering)
High back-pressure tolerance allows long hoses
Auxiliary handle and adjustable guard

Supplied in DOA's underwater version.

Hydraulic tools need a hydraulic power pack or a machine with a suitable hydraulic circuit (see oil flow and pressure in the technical data).

Technical details

Technical data

Weight	5 kg
Dimensions L × W	32 × 25 cm
Oil flow	20–30 L/min (specify when ordering)
Pressure	140–180 bar
Disc	Ø 230 mm, bore 22–23 mm
Disc speed, underwater model	2200 rpm @ 30 L/min
Cutting depth	50 mm
