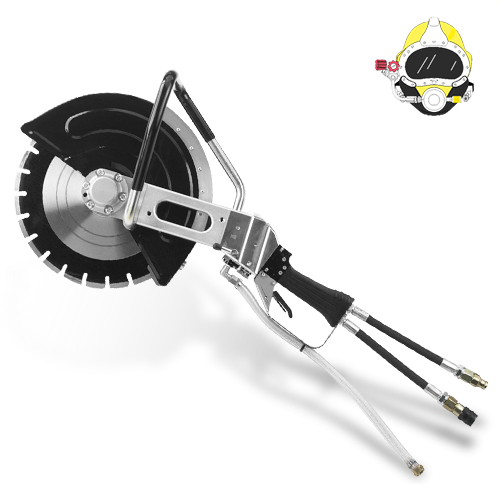

DC Underwater Hydraulic Disc Saw

Price on requestQuoted for your project, delivery and configuration

Delivery across Europe from Finland, other countries on request
Not sure it fits your build? Ask us — we build on the same platform.

Description

Hydraulic disc saw for 350–400 mm discs: abrasive discs for metal, or diamond discs for reinforced concrete and building materials. The three models share the same mechanics, weight and dimensions and differ only in hydraulic motor displacement, so choose the model that matches your power pack's flow. Hydraulic operation means no electricity, no fumes and minimal noise and vibration, and the saw can be used for underwater work.

DOA hydraulic motor that holds performance under high cutting load
Direct drive, no belts
Water fed to the disc from the centre, no external water hoses

Supplied in DOA's underwater version.

Hydraulic tools need a hydraulic power pack or a machine with a suitable hydraulic circuit (see oil flow and pressure in the technical data).

Technical details

Technical data

	DC 14	DC 16	DC 18
Weight	8.5 kg	8.5 kg	8.5 kg
Ideal flow	20 L/min	30 L/min	38 L/min
Pressure	140–180 bar	140–180 bar	140–180 bar
Disc diameter	350 mm (14")	400 mm (16")	400 mm (16")
Shaft	25.4 mm (1")	25.4 mm (1")	25.4 mm (1")
Cutting depth	120 mm	145 mm	145 mm
Max speed	4300 rpm	4300 rpm	4300 rpm
Rotation	Clockwise	Clockwise	Clockwise
