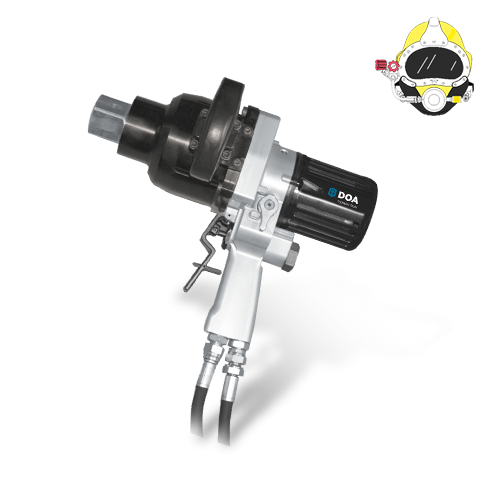

DHW 9512 / 17012 Underwater Hydraulic Impact Wrench

Price on requestQuoted for your project, delivery and configuration

Delivery across Europe from Finland, other countries on request
Not sure it fits your build? Ask us — we build on the same platform.

Description

Heavy hydraulic impact wrenches with T-handle and adjustable torque up to 9500–17000 Nm for the largest bolts. For workshops, infrastructure and railway work, oil & gas, mining, shipyards and cold sites where no air supply is available.

Adjustable torque control
3-jaw hammer mechanism
Motor cover with heat dissipation; manual reverse
Ergal handle with integrated oil flow; mechanical lever with safety lever

Supplied in DOA's underwater version.

Hydraulic tools need a hydraulic power pack or a machine with a suitable hydraulic circuit (see oil flow and pressure in the technical data).

Technical details

Technical data

	DHW 9512	DHW 17012
Weight	13.6 kg	22.7 kg
Square drive	1 1/2"	1 1/2"
Bolt range	M24–M56	M30–M80
Max torque	9500 Nm	17000 Nm
Free speed	1350 rpm	1200 rpm
Oil flow	20–30 L/min	20–30 L/min
Length	363 mm	496 mm
Side to centre	60 mm	88.7 mm
