Watertight Enclosure Clamps

€34.00€42.67Excl. VAT — added at checkoutIncl. 25.5% VAT (Finland) — final VAT is calculated at checkout

Ordered for you — ships in about 7 business days

Delivery across Europe from Finland, other countries on request
Not sure it fits your build? Ask us — we build on the same platform.

Description

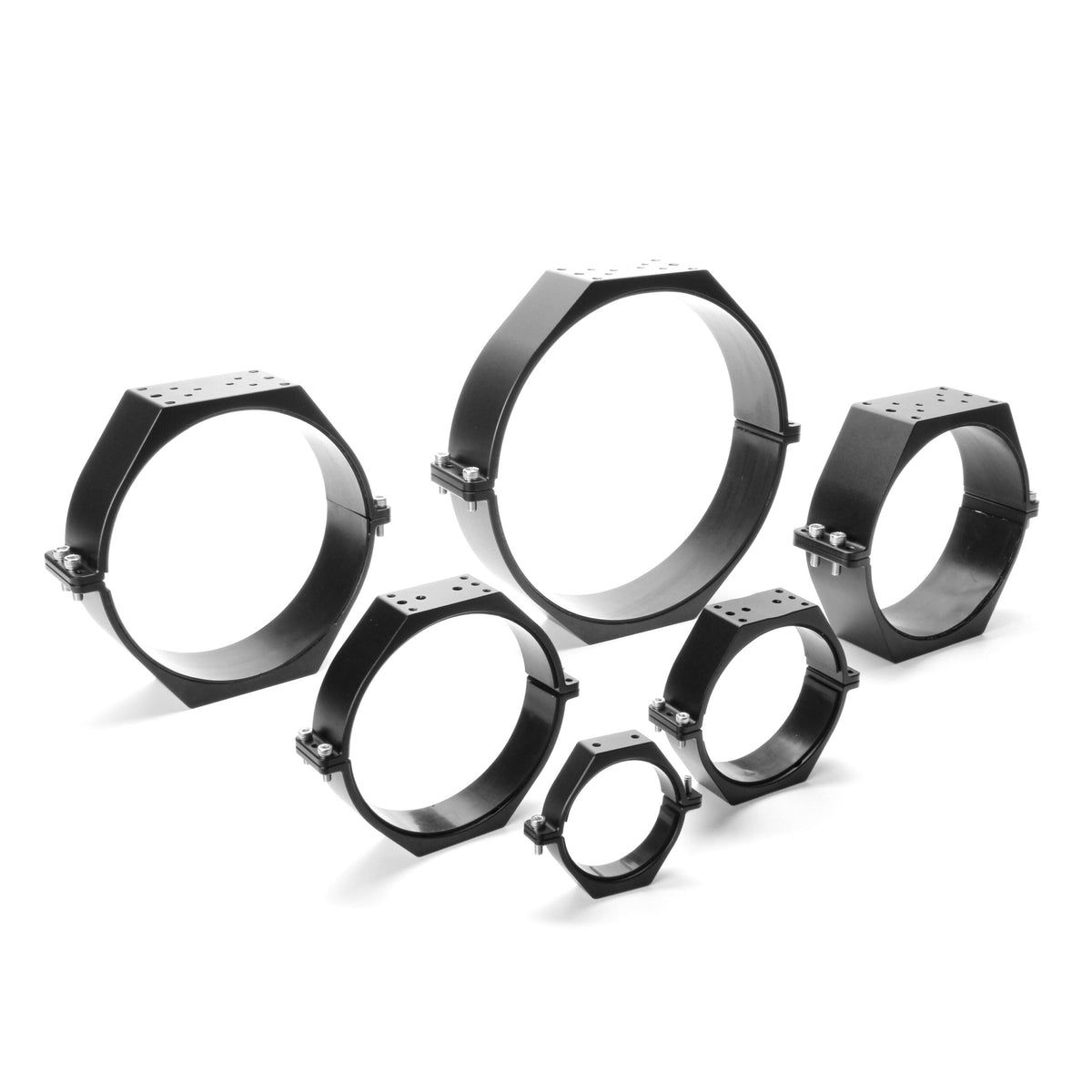

These anodized aluminum clamps for cylindrical Watertight Enclosures provide a simple and easy mounting solution. The threaded mounting holes allow the watertight enclosure to be mounted flush to the structure of your vehicle or on a Payload Skid for the BlueROV2.

The unique mounting hole pattern allows any clamp to attach to any other clamp, opening up all sorts of possibilities for custom enclosure configurations.

What's in the box

2″ Clamps

2 x Clamp halves
1 x Adhesive rubber strip (BR-100043)
2 x M3 Hex nut (BR-100371)
2 x M3x8 Socket head cap screw (BR-100989)
4 x M4x8 Socket head cap screw (BR-102694)
2 x M4x14 Socket head cap screw (BR-100334)

3″ and 4″ Clamps

2 x Clamp halves
2 x Adhesive rubber strip (BR-100043)
4 x M4x8 Socket head cap screw (BR-102694)
2 x M4x14 Socket head cap screw (BR-100334)

5″, 6″ and 8″ Clamps

2 x Clamp halves
2 x Adhesive rubber strip (BR-102699)
4 x M6x12 Socket head cap screw (BR-102692)
8 x M6x20 Socket head cap screw (BR-102241)

Technical details

Specifications

Series Diameter	Materials	Length (A)	Height (B)	Length (C)	Radius (D)	Width (E)	Clamping Screw Holes (F)	Mounting Screw Holes (G)	Weight ¹	Part Number
50 mm (2")	Aluminum 6061-T6, type III anodized Buna-N 50A Stainles steel 316	87.2 mm	35.9 mm	27 mm	30.85 mm	17.0 mm	M4x0.7	2x M4x0.7	54 g	BR-102710-002
75 mm (3")		119.4 mm	50.0 mm	47 mm	46.05 mm	30.0 mm		4x M4x0.7	161 g	BR-102710-003
100 mm (4")		144.9 mm	62.8 mm	47 mm	58.75 mm	30.0 mm		4x M4x0.7	192 g	BR-102710-004
130 mm (5")		177.8 mm	78.1 mm	80 mm	71.35 mm	53.0 mm	M6x1.0	4x M6x1.0	599 g	BR-102710-005
150 mm (6")		203.1 mm	90.6 mm	80 mm	83.95 mm	53.0 mm			645 g	BR-102710-006
200 mm (8")		255.6 mm	116.1 mm	80 mm	109.1 mm	53.0 mm			822 g	BR-102710-008
¹ In air weight of two clamps, rubber strips, and clamping hardware.
