Fathom-X Tether Interface (FXTI)
Ordered for you — ships in about 7 business days
- Delivery across Europe from Finland, other countries on request
- Not sure it fits your build? Ask us — we build on the same platform.
Description

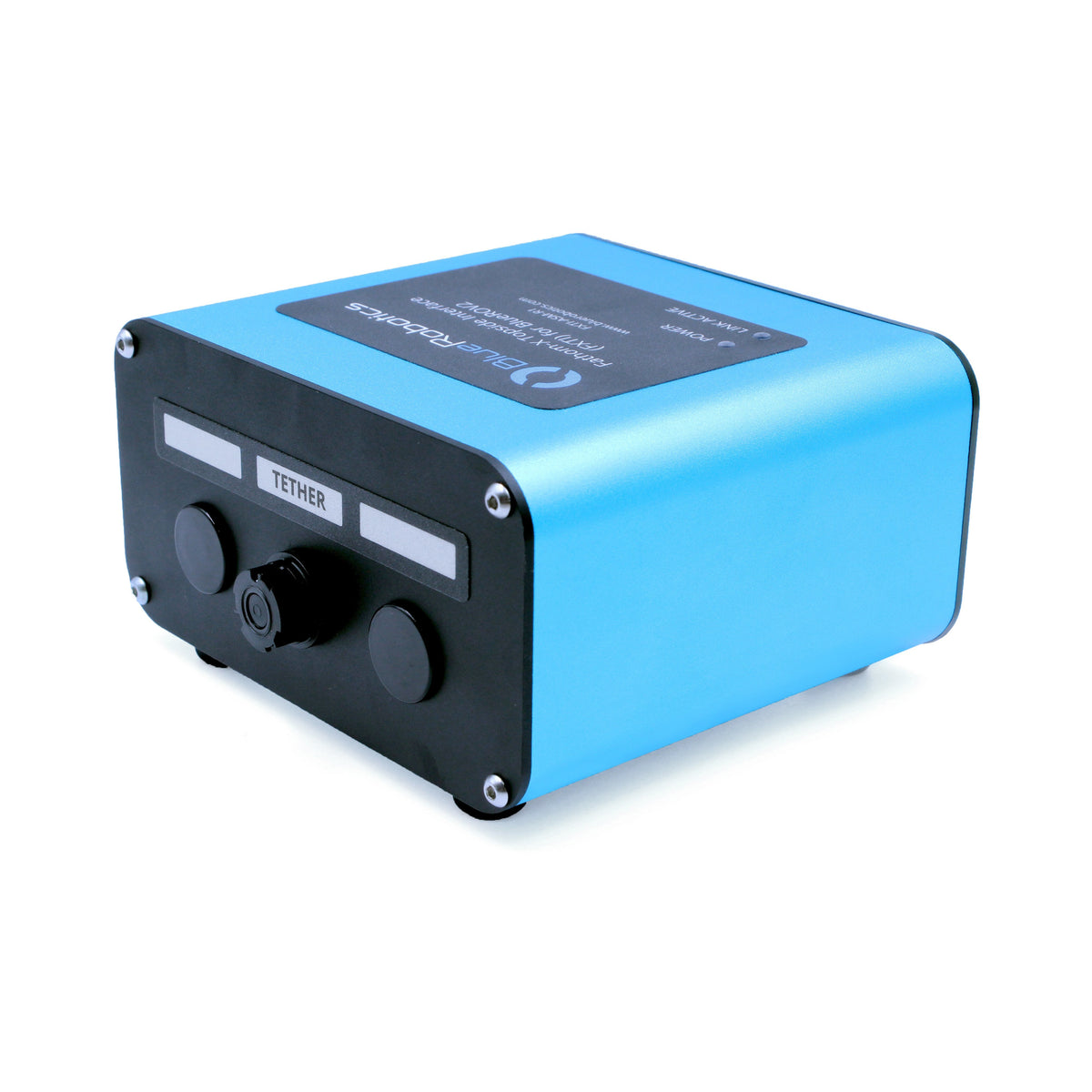

The Fathom-X Tether Interface (or FXTI) is a simple and expandable topside enclosure to interface with the BlueROV2 and other devices that use HomePlug communication technology. The FXTI has a USB-B connection on one side and a Binder 770 connector on the other. The USB connection provides power to the box and is internally connected to a USB to Ethernet adapter that is connected to a Fathom-X tether interface board. The interface board is connected to the Binder 770 connector for a clean connection to the tether!
This product works great as a clean connection from the computer to the tether, but it is designed to be highly expandable for other applications. The Binder 770 connector has leads for all 8 wires, providing full support for both the slim and regular Fathom tethers. Those leads are reconfigurable within the box so that you can quickly use an extra twisted pair from the tether for the Water Linked Analog Locator or any RS485 device.
Two additional holes are provided on the box and are sized properly to accept additional Binder 770 Bulkhead Connector or our standard penetrators.
Indicator lights on the top of the box show the “power” and “link” status from the Fathom-X board. The USB-B connection provides a solid connector that is unlikely to be damaged during transit or operation.
What's in the box
- 1 x Fathom-X Tether Interface (FXTI)
- 1 x 3 ft (1m) USB-A to USB-B cable
Technical details
Specifications
| Parameter | Value | |
|---|---|---|
| Physical | ||
| Length | 122 mm | 4.8 in |
| Width | 119 mm | 4.69 in |
| Height | 67.8 mm | 2.67 in |
| Weight (without USB cable) | 462 g | 1.02 lbs |
| Enclosure Material | Anodized Aluminum | |
| Tether Connection | Binder 770 Bulkhead | |
| Computer Connection | USB Type-B Female Bulkhead Receptacle | |
| USB Cable Length | 0.91 m | 3 ft |
| Communication | USB 2.0, Ethernet 10/100 | |
2D Drawings
3D Models
FXTI-ASM-R1 (.zip)
Revision History
29 June 2023
- FXTI-ASM-R2-RP SKU changed to BR-100679
27 February 2023
- Serial number laser marking implemented
30 August 2022
- Initial Release – R2
- M3x5 button head end plate screws changed to M3x8 socket head cap screws
- Internal plastic standoff updated
7 August 2018
- Initial Release – R1
