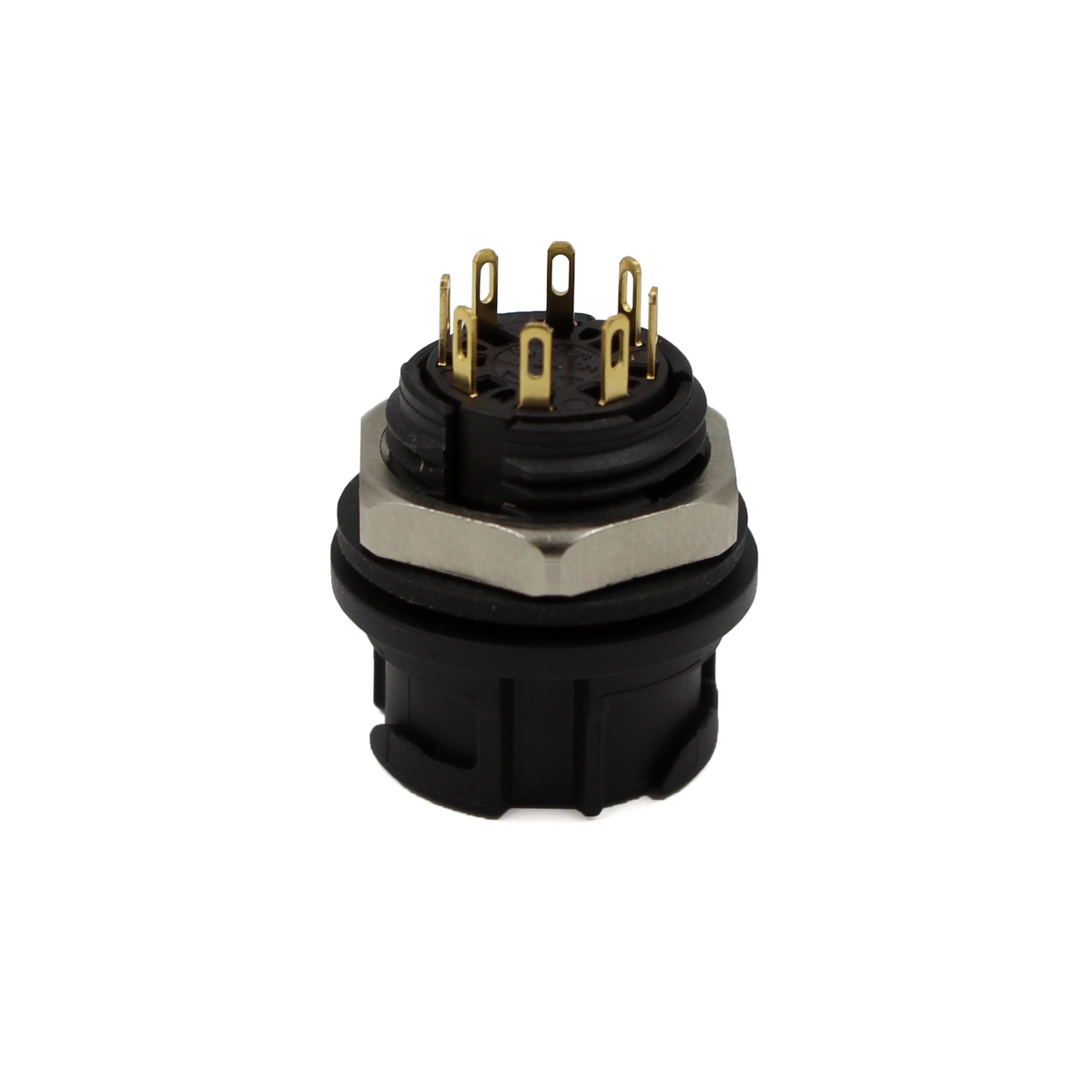

Binder 770 Bulkhead Connector

Binder

Binder 770 Bulkhead Connector

€20.00€25.10Excl. VAT — added at checkoutIncl. 25.5% VAT (Finland) — final VAT is calculated at checkout

Ordered for you — ships in about 7 business days

SKU BR-100423

  • Delivery across Europe from Finland, other countries on request
  • Not sure it fits your build? Ask us — we build on the same platform.

Description

The Binder 770 connector is our standard connector for tether connections above the water. The connectors have 8 pins, are IP67 splashproof when mated, reasonably priced, and compact. This Binder 770 bulkhead connector can be mounted in a spare hole on the FXTI for your custom connections. A corresponding Binder 770 Plug is required for use.

The connector has a current rating of 2A per pin, is rated for 175V (1750V impulse), can handle >5000 mating cycles, and has gold plated pins.

Please note that the connector requires moderate soldering skills.

What's in the box

Contents

  • 1 x Binder 770 Bulkhead Connector (part no: 09-0774-000-08)

Technical details

Specifications

ParameterValue
TerminationSolder
Wire gauge0.25 mm224 - 28 AWG
Ingress protectionIP67
Mechanical operation> 5000 mating cycles
Temperature range-25°C - 85°C-13°F - 185°F
Rated voltage175 V
Rated impulse voltage1750 V
Rated current2 A
Contact materialCuZn
Body materialPA (UL 94 HB)

2D Drawings

Drawing

Documents

Binder 770 Bulkhead (Binder USA)

Revision History

18 July 2023

  • MISC-ELEC-BINDER-770-BULKHEAD-R1 SKU changed to BR-100423
