HAG09 Underwater Hydraulic Angle Grinder

Price on requestQuoted for your project, delivery and configuration

Delivery across Europe from Finland, other countries on request
Not sure it fits your build? Ask us — we build on the same platform.

Description

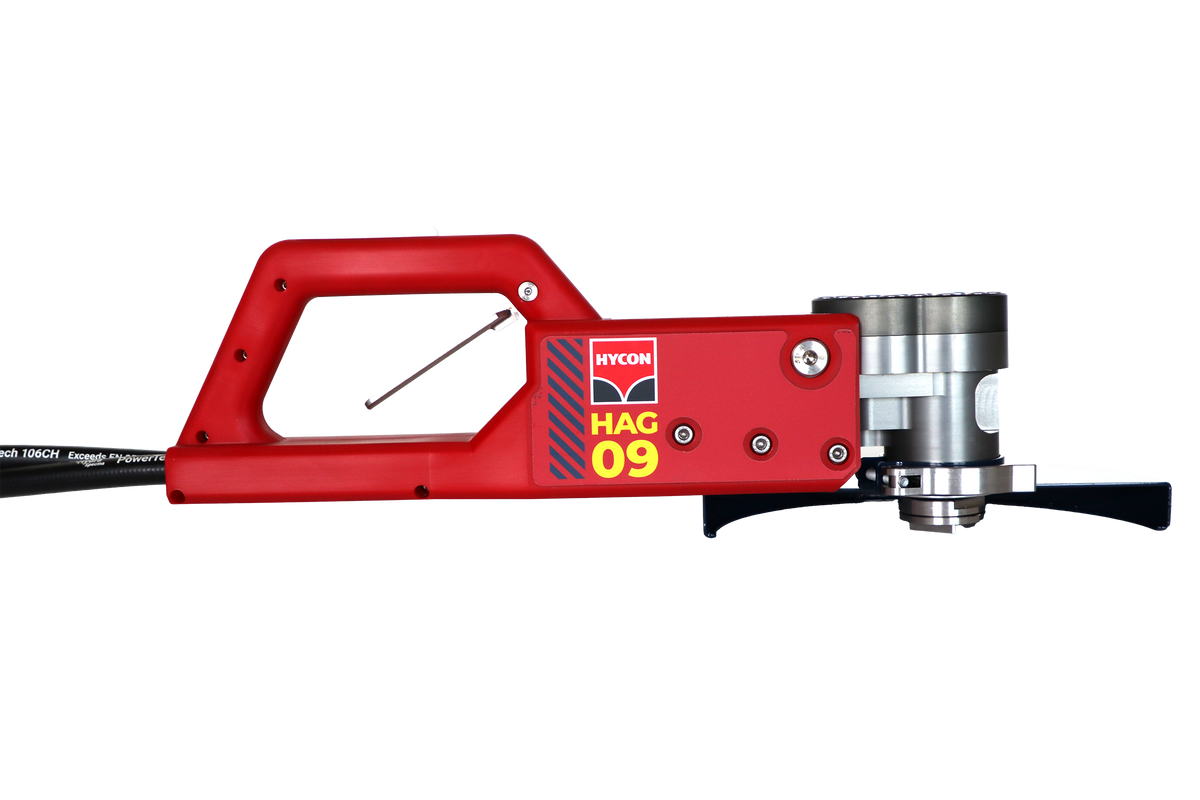

The HYCON HAG09 is a hydraulic angle grinder built for underwater use. Divers use it for repairing underwater pipes and for polishing ship propellers.

Technical details

Technical data

Item no.	3030230
Weight without hoses, disc, and guard [kg / lbs]	3.6 / 7.9
Weight without hoses and disc [kg /lbs]	4.2 / 9.2
Weight with hoses, without disc [kg / lbs]	6.4 / 14.1
Blade diameter	Ø230 [mm]
Maximum cutting depth [mm]	80
Oil flow [LPM / GPM]	20-46 / 5-12
Working pressure [bar]	120
Max pressure [bar]	160
Max return pressure [bar / psi]	40 / 580
Rotation speed max [rpm]	4400
Blade peripheral speed max [m/s]	46
Arbor size [Inch]	5/8-11”
Max working depth [m]	50
CE approval	Yes
