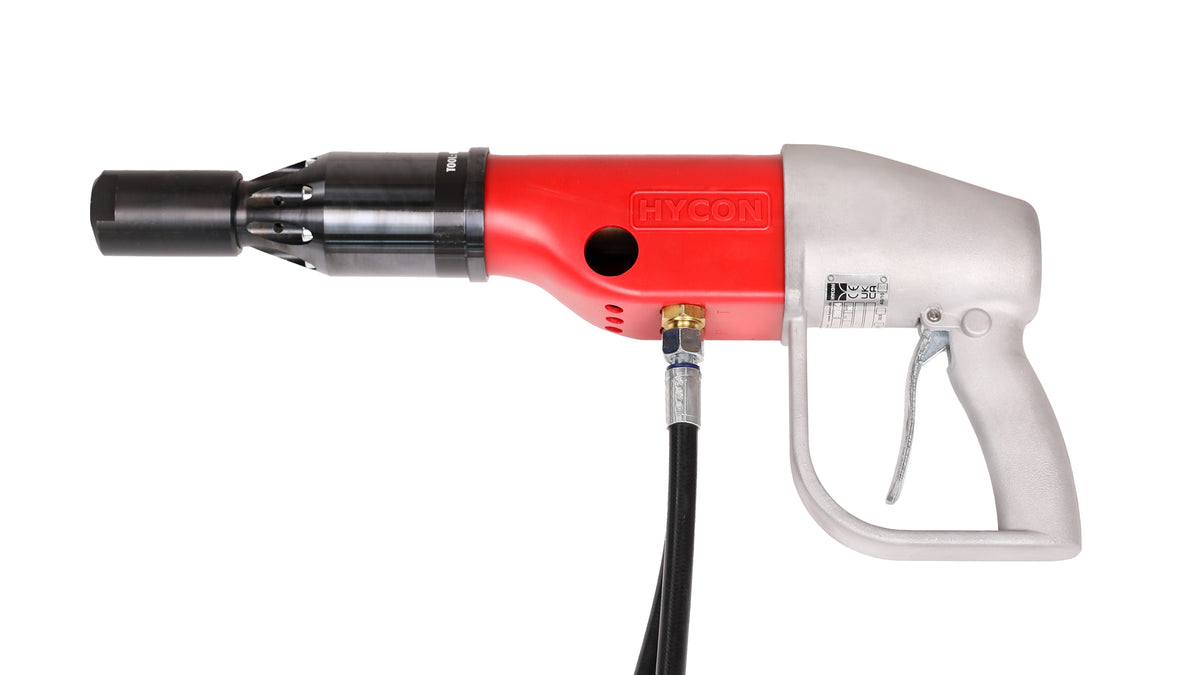

HH10RV Underwater Hydraulic Breaker

Price on requestQuoted for your project, delivery and configuration

Delivery across Europe from Finland, other countries on request
Not sure it fits your build? Ask us — we build on the same platform.

Description

HYCON HH10RV-UW is an exceptionally handy, lightweight pick hammer designed for underwater applications for light breaking. The low weight and compact design make it very suitable for narrow places, or simply smaller tasks.

The HH10RV-UW has holes in the shielding for easy cleaning.

HH10RV is the strongest 10 kg pick hammer on the market, and no pneumatic has anything like the same performance.

The standard tool size is hex 19 x 50 mm with an optional US 0.580" (item no.: 1010111-01). The hammer can be supplied from any power pack with a 20-lpm option.

Technical details

Technical data

Item no. HH10RV HEX 19x50 mm	1010110-01
Item no. HH10RV US 0.580"	1010111-01
Weight [kg]	9.9
Oil flow [LPM]	20
Working pressure [bar]	100
Max pressure [bar]	160
Blow frequency [Hz]	2100
Blow energy [joule]	22
Sound power level LWa [dB]	105
Vibration level, 3 axis [m/s2]	9.6
Tool shank HEX [mm] (optional)	19 x 50 (US 0.580 inch)
CE approval	Yes
