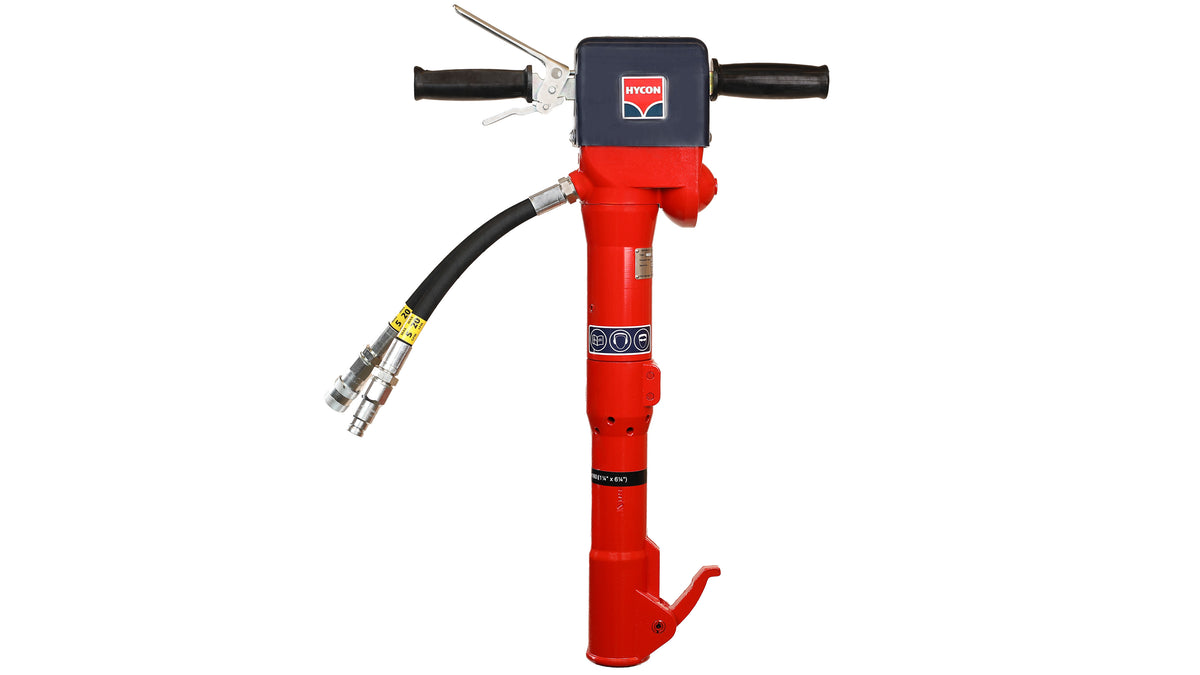

HH20 Underwater Hydraulic Breaker

Price on requestQuoted for your project, delivery and configuration

Delivery across Europe from Finland, other countries on request
Not sure it fits your build? Ask us — we build on the same platform.

Description

The HYCON HH20 underwater is a compact all-round breaker. It is designed for underwater applications for breaking concrete, rock & coral removal. Despite its low weight, it handles even the most challenging jobs.

It comes standard with a rubber-based underwater vibration-reduced handle for high operator comfort.

The breaker can be connected to any power pack with 20-lpm option power packs and other hydraulic power sources.

Technical details

Technical data

Item no. HH20, hex 25 x 108 mm	1010020-01
Item no. HH20, hex 28 x 160 mm	1010427-01
Item no. HH20, hex 32 x 160 mm	1010120-01
Weight [kg]	22
Oil flow [LPM]	20
Working pressure [bar]	110
Max pressure [bar]	160
Blow frequency [Hz]	1480
Blow energy [joule]	60
Sound power level LWa [dB]	106
Vibration level, 3 axis [m/s2]	6.8
CE approval	Yes
