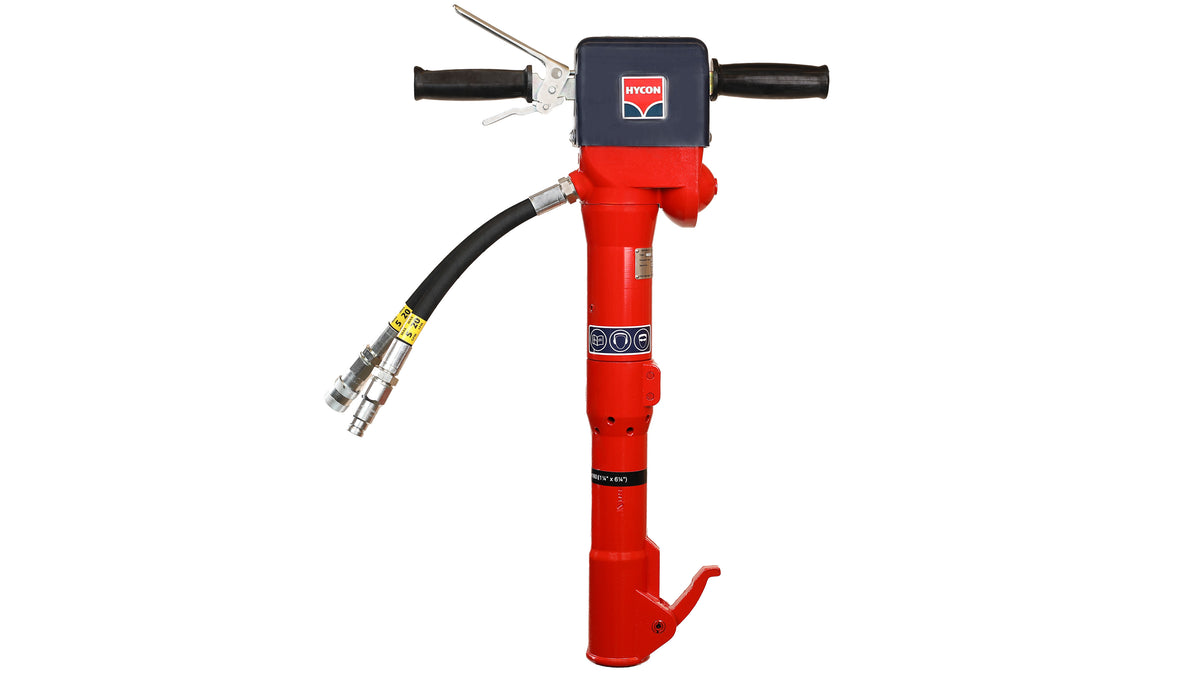

HH27 Underwater Hydraulic Breaker

Price on requestQuoted for your project, delivery and configuration

Delivery across Europe from Finland, other countries on request
Not sure it fits your build? Ask us — we build on the same platform.

Description

HYCON HH27 underwater is exceptionally strong in coping with all jobs requiring extreme power (75 % higher performance than the HH20). IIt is designed for underwater applications for breaking concrete, rock & coral removal, etc. The HH27 is very efficient with the best power-to-weight ratio of any of our breakers.

It comes standard with a rubber-based underwater vibration-reduced handle for high operator comfort.

The standard tool size is hex 32 x 160 mm.

The breaker can be connected to the HYCON power packs and other hydraulic power sources.

Technical details

Technical data

Item no., hex 28 x 152 mm, 30 lpm	1010527-01
Item no., hex 28 x 160 mm, 30 lpm	1010427-01
Item no., hex 32 x 152 mm, 30 lpm	1010127-01
Item no., hex 32 x 160 mm, 30 lpm	1010027-01
Weight [kg]	27.4
Oil flow [LPM]	30
Working pressure [bar]	130
Max pressure [bar]	160
Blow frequency [Hz]	1260
Blow energy [joule]	105
Sound power level LWa [dB]	110
Vibration level, 3 axis [m/s2]	10.7
Tool size [mm]	28 (1010527-01, 1010427-01), 32 (1010127-01, 1010027-01)
CE approval	Yes
