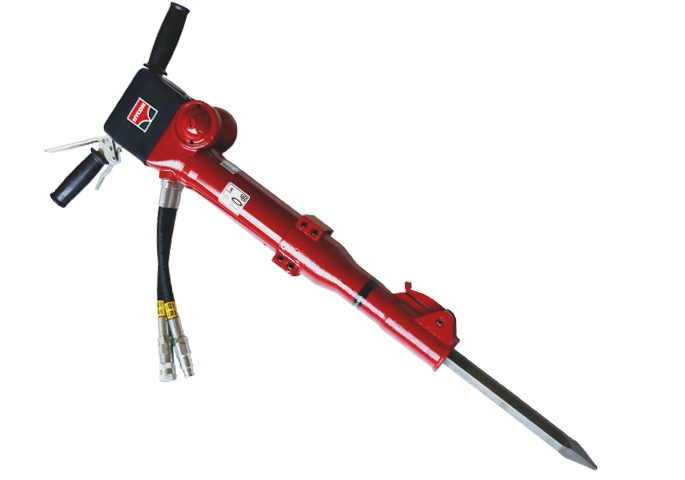

HH35 Underwater Hydraulic Breaker

Price on requestQuoted for your project, delivery and configuration

Delivery across Europe from Finland, other countries on request
Not sure it fits your build? Ask us — we build on the same platform.

Description

The HYCON HH35 underwater handheld breaker is exceptionally powerful in coping with all jobs requiring extreme force. It hits more than twice as hard as the HH20 and outperforms any other 45 kg breaker in the market – no matter if pneumatic or hydraulic. The breaker has an extra accumulator, which adds even more power.

The HH35 Underwater is designed for breaking reinforced concrete and hard rock under the water etc. The standard tool size is hex 32 x 160 mm. The breaker can be connected to the HYCON power packs and other hydraulic power sources. The underwater version is equipped with a rubber-based, vibration-reduced handle for enhanced operator comfort while still being able to apply presure.

Technical details

Technical data

Item no., hex 28 x 160 mm, 30-40 lpm	1010135
Item no., hex 32 x 152 mm, 30-40 lpm	1010035
Item no., hex 32 x 160 mm, 30-40 lpm	1010235
Weight [kg]	29.4
Oil flow [LPM]	30-40
Working pressure [bar]	130
Max pressure [bar]	160
Blow frequency [Hz], 30 / 40 lpm	1100 / 1440
Blow energy [joule]	130
Sound power level LWa [dB]	111
Vibration level, 3 axis [m/s2]	10.7
Tool size [mm]	28 (1010135), 32 (1010035, 1010235)
CE approval	Yes
