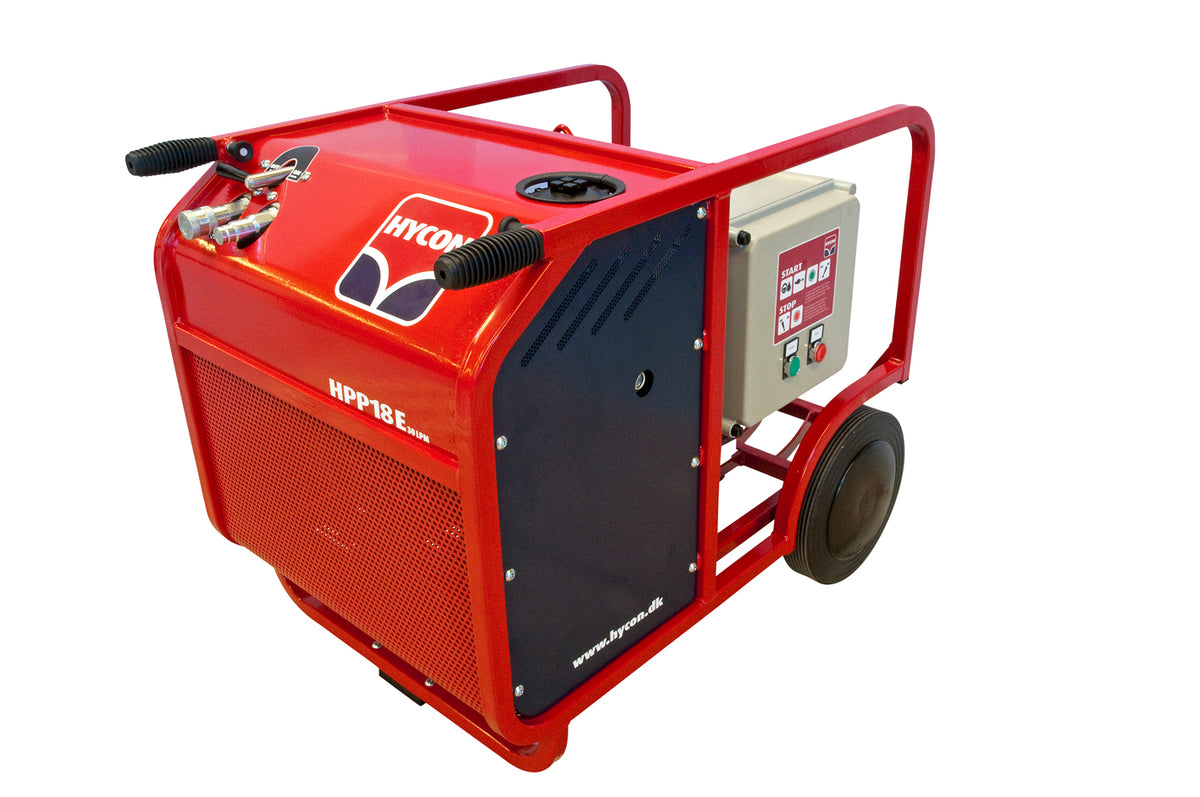

HPP18E Electric Hydraulic Power Pack

Price on requestQuoted for your project, delivery and configuration

Delivery across Europe from Finland, other countries on request
Not sure it fits your build? Ask us — we build on the same platform.

Description

HYCON HPP18E is equipped with an 11-kW motor and is available as a 30 lpm and a 40 lpm version. The perfect power pack for professional and specialized companies within concrete drilling, cutting, and others. The HPP18E has a slow start function, reducing the load during start.

Thanks to the integrated oil cooler, it needs no water cooling, which is a great advantage – especially in winter. Despite the strong motor, the HPP18E is compact and easily transported in any van, making it very portable. It is strongly built and can work even under the toughest conditions.

Technical details

Technical data

Item no. HPP18E	2020011 (30 l), 2020111 (40 l)
Dimensions, L x W x H [mm] / Weight [kg]	805 x 625 x 704 / 128
Oil flow [LPM]	30 or 40
Working pressure [bar]	120
Max pressure [bar]	160
Motor	DM Motors DMA 132M (11 kW 25A) (30 lpm) / 3x400V 50 Hz; DM Motors DMA 132M (11 kW 35A) (40 lpm) / 3x400V 50 Hz
Sound power level LWa [dB]	98
CE approval	Yes
