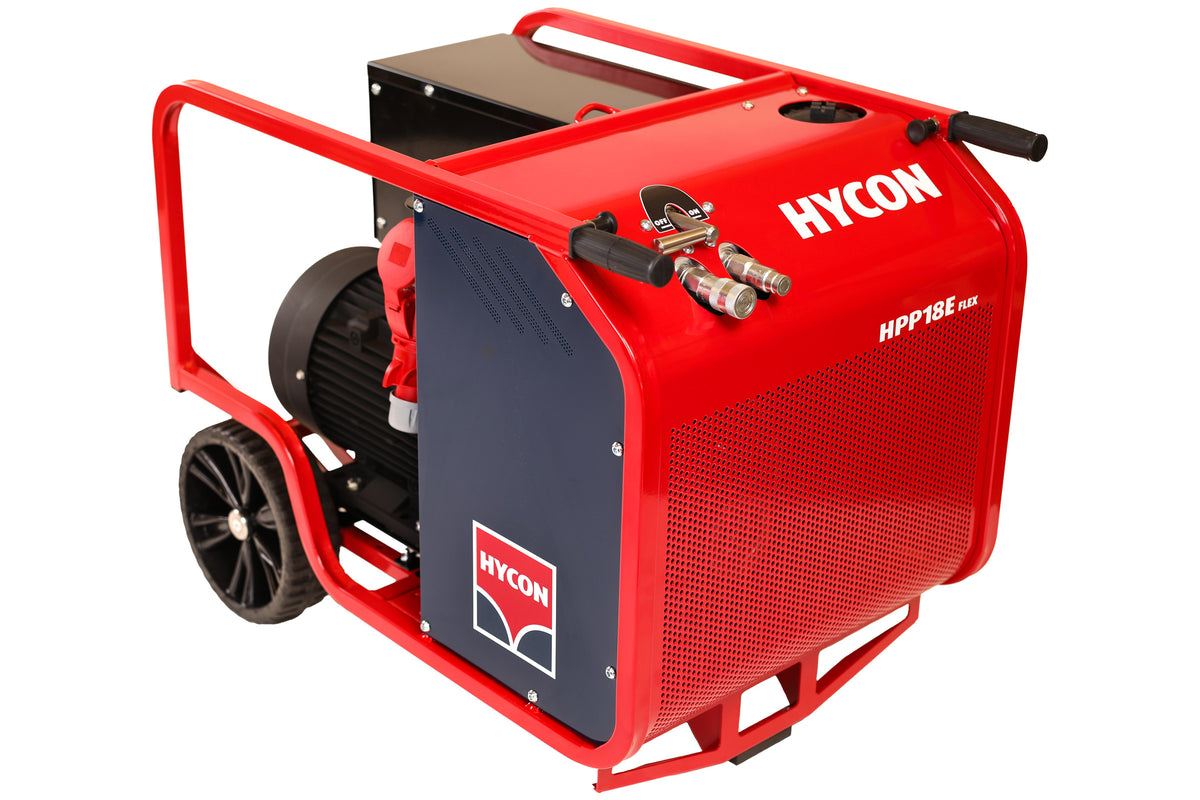

HPP18E FLEX Electric Hydraulic Power Pack

Price on requestQuoted for your project, delivery and configuration

Delivery across Europe from Finland, other countries on request
Not sure it fits your build? Ask us — we build on the same platform.

Description

The HYCON HPP18E FLEX is equipped with a 13.2 kW (18 HP) motor, and the flow can be set to 20-30-40-46 lpm, making it the perfect power pack for professional and specialized companies within concrete cutting and utility work.

Not only is the powerpack completely emission-free, but also advantageous for the operator. They can use the powerpack indoors or in enclosed areas where gas- or diesel-powered power sources can't be used due to exhaust gas.

Most common electric power packs run full rpm on the motor and then restrict the flow to regulate the output lpm. Variable Frequency Drive (VFP) controls the motor RPM to change the output flow between 20, 30, 40, and 46 lpm. This ensures lower energy consumption and higher efficiency.

Technical details

Technical data

Item no. HPP18E FLEX	2020211
Dimensions, L x W x H [mm] / Weight [kg]	805 x 625 x 704 / 155
Oil flow [LPM]	20-30-40-46
Working pressure [bar]	120
Max pressure [bar]	160
Motor	Hoyer HMA3 132M2 (13,2 kW 35A), 3x400/480V, 50/60 Hz
Sound power level LWa [dB]	99
CE approval	Yes
