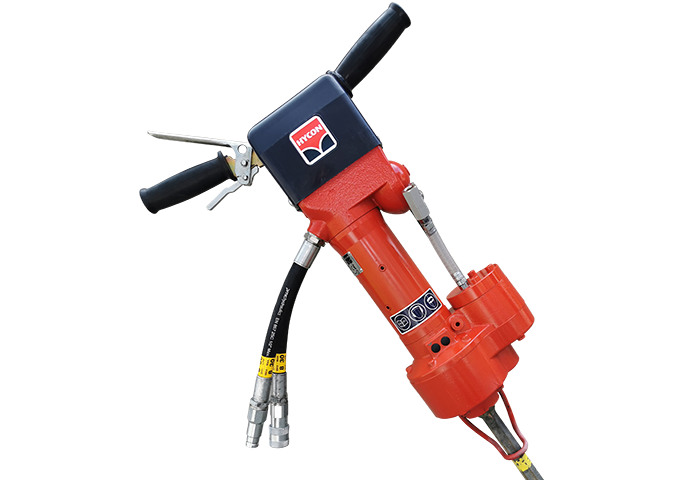

HRD28X Underwater Hydraulic Rock Drill

Price on requestQuoted for your project, delivery and configuration

Delivery across Europe from Finland, other countries on request
Not sure it fits your build? Ask us — we build on the same platform.

Description

The HYCON HRD28X Underwater is a high-performing handheld rock drill designed for the most demanding drilling applications in rock and concrete.

Using standard integral drill steel with air-flushing from an external compressor and a high-performing hydraulic impact and rotation unit makes the HRD28X a lighter, more powerful, and more efficient rock drill.

The HRD28X rock drill is ideal for anchoring holes and splitting holes measuring Ø25-50 mm.

Combined with a compressor of your choice, this rock drill is made for underwater drilling, making it the professional divers’ rock drill choice no. 1.

Technical details

Technical data

Item no.	1010303-02
Dimensions L x W [mm]	708 x 460
Oil flow [LPM]	30
Working pressure [bar]	120
Max pressure [bar]	172
Drill rod shank HEX [mm]	22 x 108
Rotation CCW [rpm]	320
Blow frequency [Hz]	40
Flushing air flow [LPM / CFM]	External air
Sound power level LWa [dB]	105
Vibration level, 3 axis [m/s2]	13
Air connections	1/4" BSP Female Thread
CE approval	Yes
