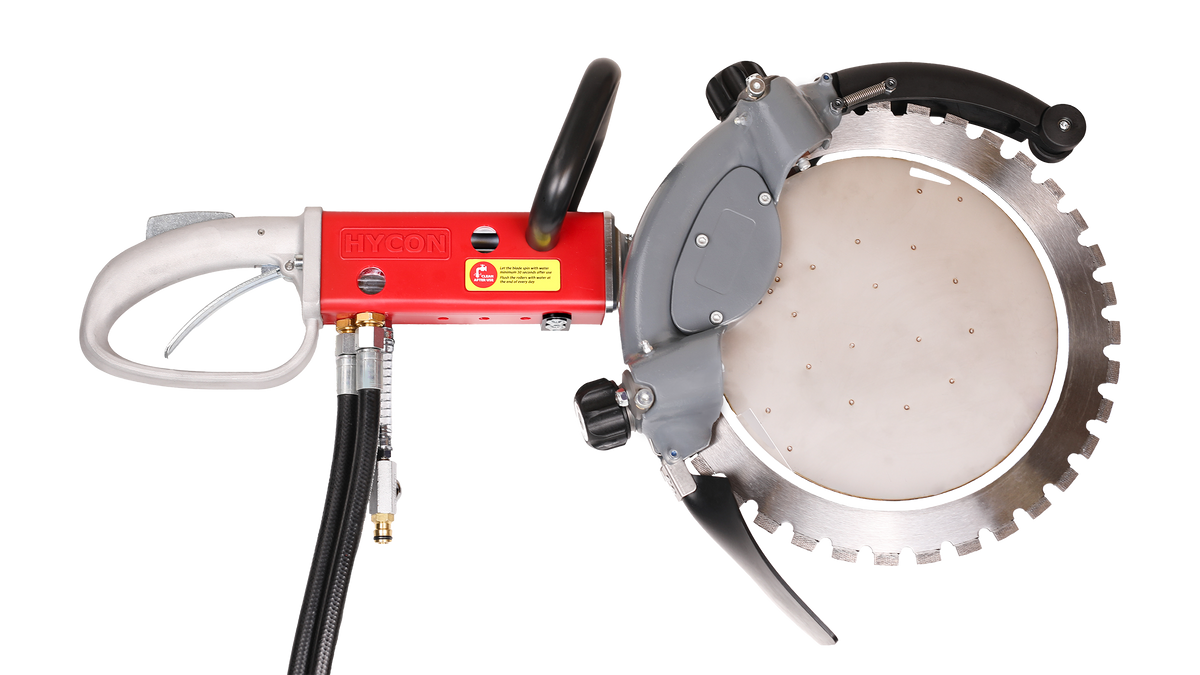

HRS400 Underwater Hydraulic Ring Saw

Price on requestQuoted for your project, delivery and configuration

Delivery across Europe from Finland, other countries on request
Not sure it fits your build? Ask us — we build on the same platform.

Description

The HYCON underwater handheld hydraulic ring saw offers you the most overall efficient and productive 300 mm deep cutting. Due to its power and cutting depth, it’s a durable and popular choice for all heavy-duty jobs.

With no downtime, the HRS400 UW is a solid partner and an excellent investment with a state-of-the-art mechanism.

Long-lasting wearing parts secure low operation costs.

The ring saw is extremely powerful and suitable for bigger construction projects requiring concrete and rock cutting. Apply 160 bars, and the saw will allow you to cut deep and fast.

Technical details

Technical data

Item no.	3030650-01
Weight without hose/blade [kg]	10.2
Blade diameter	Ø400 [mm]
Cutting depth [mm]	300
Oil flow [LPM]	30-40
Working pressure [bar]	120
Max pressure [bar]	172
Rotation speed max [rpm]	2350
Blade peripheral speed max [m/s]	49
Sound power level LWa [dB]	109
Vibration level, 3 axis [m/s2]	<2.5
CE approval	Yes
