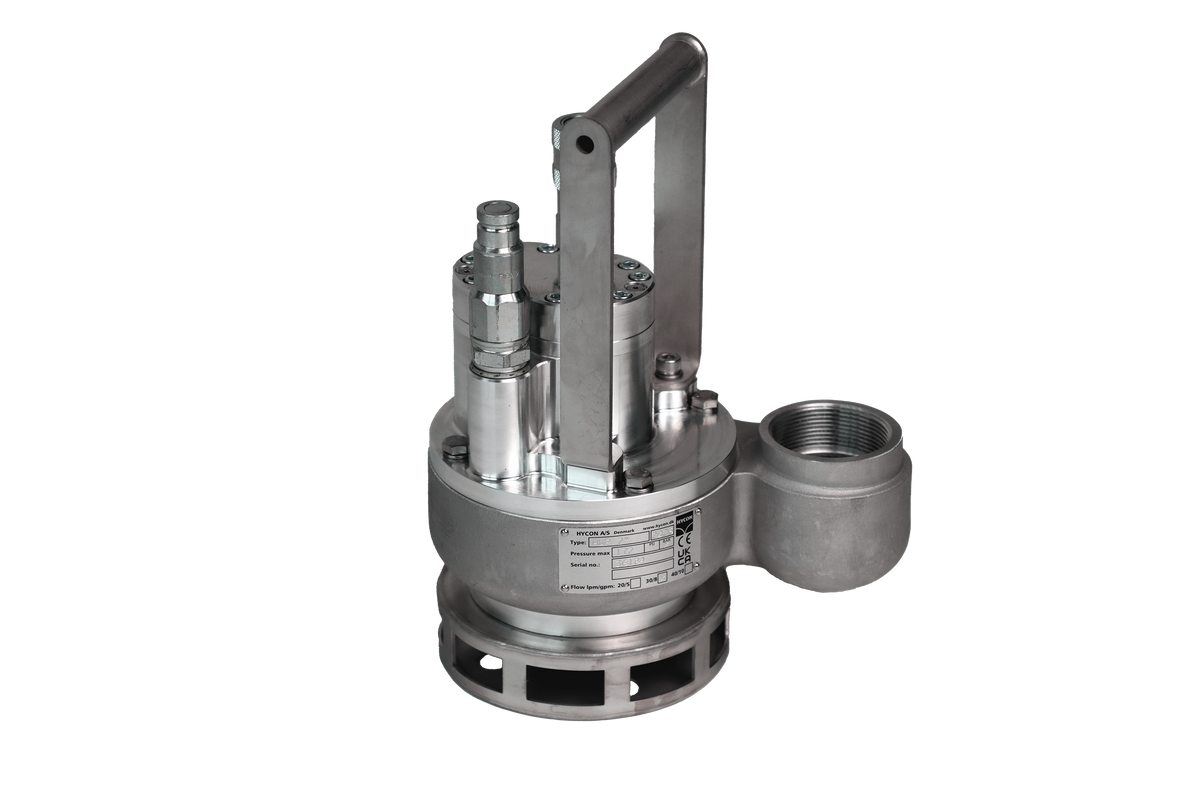

HWP2 Hydraulic Submersible Pump

Price on requestQuoted for your project, delivery and configuration

Delivery across Europe from Finland, other countries on request
Not sure it fits your build? Ask us — we build on the same platform.

Description

Although small and light, the HWP2 pump is very efficient and can pump up to 47 m³/h. The outside diameter is only 24 cm making it ideal for small manholes where the space is tight.

The pump is unaffected by dirty water and solids. In utility and construction, heavy-duty pumps are necessary to secure no downtime at the job site. The direct drive motor ensures an all-day, every-day operation without damage to the engine or the seals if the pump runs dry.

The HWP2 PowerDrive is equipped with HYCON's proprietary PowerDrive motor. That means it can handle up to 40 bar of return pressure without blowing any seals. It's the most powerful hydraulic motor in the world.

The 10 m hose with 2" BSP snap-tite coupling is sold separately (item no. 4032697).

Technical details

Technical data

Item no. (hose incl. coupling not included)	3030022
Item no. Hose 10m for HWP2 incl. 2" BSP snap-tite coupling	4032697
Weight [kg]	7.7
Optimal oil flow [LPM]	30
Max pressure [bar]	172
Max flow capacity [m3/h]	47
Max head [m]	30
Max size of solid particles Ø [mm]	Ø30
Outlet size and connection	BSP 2", female thread
CE approval	Yes
