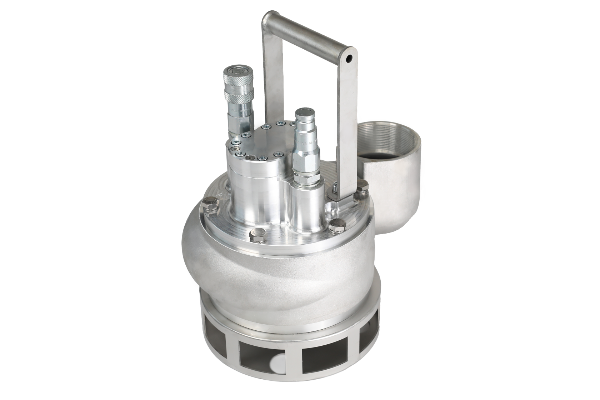

HWP3 PowerDrive Hydraulic Submersible Pump

Price on requestQuoted for your project, delivery and configuration

Delivery across Europe from Finland, other countries on request
Not sure it fits your build? Ask us — we build on the same platform.

Description

The HWP3 hydraulic submersible water pump, weighing only 11 kg, has a capacity of up to 85 m³/h per hour, making it extremely powerful compared to its weight. With an outside diameter of only 30 cm, this 3” pump is suitable for many applications and even for narrow workspaces. Equipped with our proprietary hydraulic motor, the HYCON PowerDrive, the HWP3 is the most reliable pump on the market.

The vortex design ensures a long lifetime and no downtime, even in the demanding construction business. The direct drive motor ensures an all-day, everyday operation without damage to the engine or the seals if the pump runs dry. Choose between two types of strainers for your HWP3: The standard strainer for solids up to Ø63 mm or the fine strainer for solids up to Ø10 mm.

The 10 m hose with 3" BSP snap-tite coupling is sold separately (item no. 4032698).

Technical details

Technical data

Item no. with standard strainer (hose incl. coupling not included)	3030013
Item no. with fine strainer (hose incl. coupling not included)	3030013-01
Item no. 3" Hose 10m for HWP3 incl. 3" BSP snap-tite coupling	4032698
Weight [kg]	11
Oil flow [LPM / GPM]	20-30 / 5-8
Max pressure [bar / psi]	172 / 2500
Max return pressure [bar / psi]	40 / 580
Max flow capacity [m3/h / GPM]	85 / 370
Max head [m]	20
Max size of solid particles Ø [mm], standard strainer	Ø63
Max size of solid particles Ø [mm], fine strainer	Ø10
Outlet size and connection	BSP 3", female thread
CE approval	Yes
