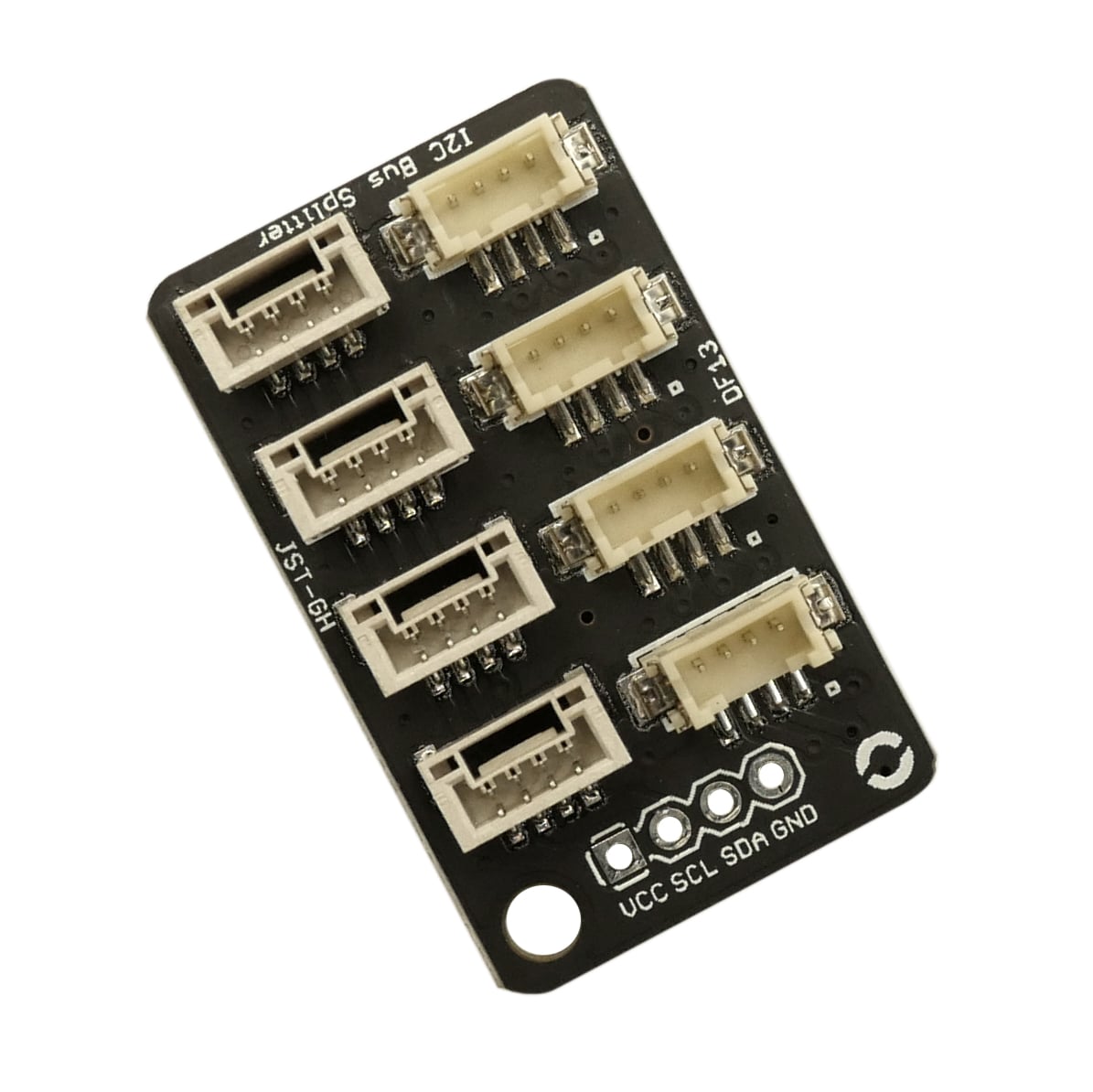

I<sup>2</sup>C Bus Splitter
€16.00€20.08Excl. VAT — added at checkoutIncl. 25.5% VAT (Finland) — final VAT is calculated at checkout
Ordered for you — ships in about 7 business days
- Delivery across Europe from Finland, other countries on request
- Not sure it fits your build? Ask us — we build on the same platform.
Description
The I2C Bus Splitter allows the connection of more I2C devices by sharing the same bus. This enables sensors like the Bar30 and Celsius to be installed on the same I2C bus.
The bus splitter has several different types of connectors to allow for forwards and backwards compatibility with various sensors and autopilots. There are four DF-13 connectors, four JST-GH connectors, and through-holes for one 0.1″ header connector.
Just plug any of the eight ports into a Pixhawk or compatible autopilot’s I2C line with the provided cable and the remaining ports on the splitter will be ready to use for slave devices I2C.
What's in the box
Contents
- 1 x I2C Bus Splitter Board
- 1 x 4-position DF-13 to JST-GH cable
- 1 x Double Sided Foam Tape
Technical details
Specifications
| Parameter | Value |
|---|---|
| Physical | |
| PCB Dimensions | 36mm x 22mm |
| Connectors | 4 x DF-13 4 x JST-GH 1 x 0.1" Header |
| Pin Configuration (for DF13 and JST-GH) | 1: VCC 2: SCL 3: SDA 4: GND |
Schematic
Revision History
18 July 2023
- MISC-ELEC-I2C-SPLITTER-R1-RP SKU changed to BR-100694
21 June 2019
- R1 – Initial release
