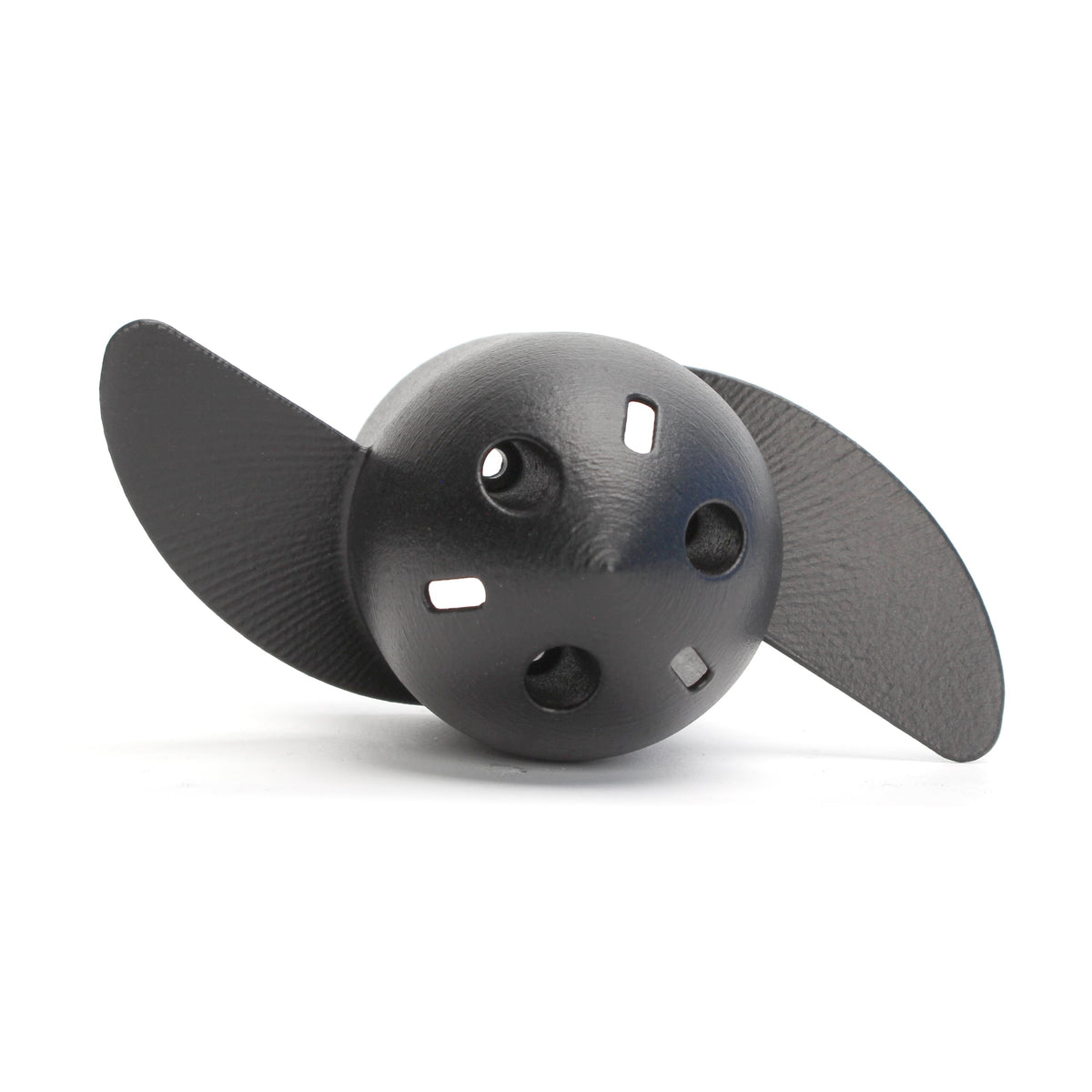

M500 Weedless Propeller

€50.00€62.75Excl. VAT — added at checkoutIncl. 25.5% VAT (Finland) — final VAT is calculated at checkout

Ordered for you — ships in about 7 business days

Delivery across Europe from Finland, other countries on request
Not sure it fits your build? Ask us — we build on the same platform.

Description

The M500 Motor with the M500 Weedless Propeller makes an ideal propulsion system for uncrewed surface vessels (USVs), uncrewed underwater vehicles (UUVs), and even human-carrying craft like kayaks. The propeller adopts the same design used on the BlueBoat propellers, for efficient thrust, speed, and, of course, weedlessness!

The highly swept blades brush off weeds, plastic bags, and other debris like there’s nothing there.

The weedless propeller is made of strong nylon and sold individually, in either clockwise or counterclockwise rotation. When used together, the clockwise and counterclockwise versions cancel out each other’s torque, which is especially important on underwater vehicles.

Available in any color as long as it’s black.

What's in the box

1 x M500 Weedless Propeller clockwise or counterclockwise based on selection
3 x M4x8 socket head cap screws

Technical details

Specifications

Parameter	Value
Performance
Full Throttle FWD/REV Thrust @ 24V	12.3 / 7.1 kg	27.1 / 15.6 lbf
Full Throttle FWD/REV Thrust @ 20V	9.8 / 5.5 kg	21.6 / 12.1 lbf
Full Throttle FWD/REV Thrust @ 16V	7.2 / 4.0 kg	15.8 / 8.8 lbf
Motor Compatibility	M500 Motor
Physical
Propeller Diameter	Ø140 mm
Nominal Pitch	80 mm
Pitch Angle @ 75% Diameter	13.6°
Blade Area Ratio	0.18
Number of Blades	2
Hub Outer Diameter	Ø60 mm
Hub Inner Diameter	Ø56.8 mm
Overall Length	90 mm
Mounting Fasteners	M4 x 0.7 mm - 6 mm
Material	PA6 / Nylon 6
In Air Weight	43 g
In Water Weight	1 g
