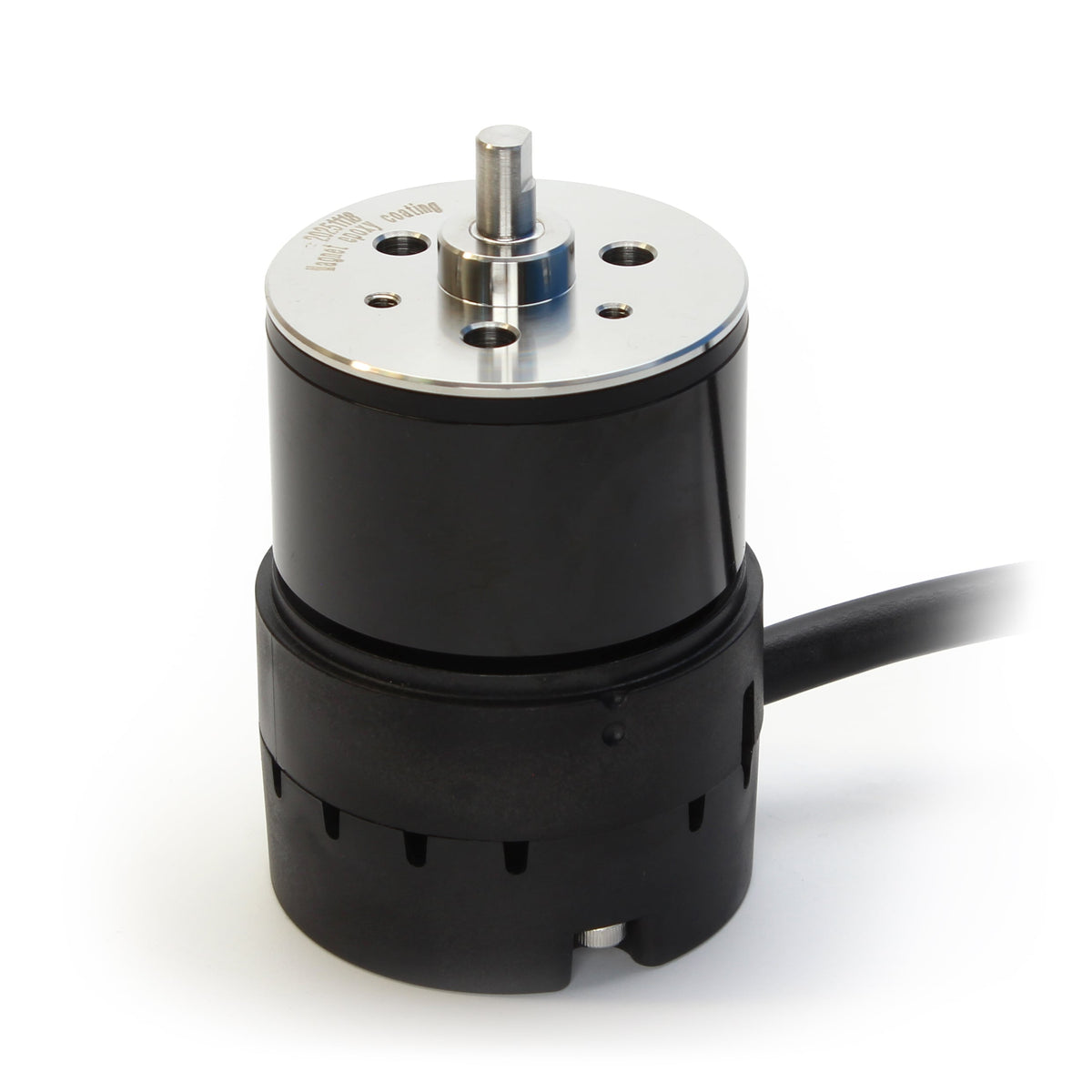

M500 Motor

€650.00€815.75Excl. VAT — added at checkoutIncl. 25.5% VAT (Finland) — final VAT is calculated at checkout

Ordered for you — ships in about 7 business days

Delivery across Europe from Finland, other countries on request
Not sure it fits your build? Ask us — we build on the same platform.

Description

The M500 Motor is essentially the T500 Thruster, but designed for a wider range of applications. Without a propeller or nozzle, it’s a flexible building block for things like vehicle propulsion for uncrewed surface vessels (USVs) and uncrewed underwater vehicles (UUVs), subsea tooling, gear-trains, actuators, or whatever else you can imagine.

It’s carefully designed to be more rugged, more powerful, and more efficient than the M200 Motor.

Design and Details

Like our thrusters, the M500 is a three-phase brushless motor leveraging our patented flooded design. Water flows throughout the components, so it’s water-cooled, water-lubricated, and inherently pressure tolerant.

The stator is fully encapsulated and electrically isolated from the water. The rotor features rugged construction with high-performance N52 neodymium magnets protected by a stainless steel abrasion shield, preventing damage from debris or sand. High-performance water-lubricated plastic bearings keep things running smoothly, and the body is made from impact-resistant glass-filled polycarbonate.

The M500 base includes four M4 mounting holes, making it easy to attach to frames, hulls, or just about anything you can imagine.
It comes with a 1.5 m cable with a pre-installed WetLink Penetrator for easy connection to a watertight enclosure or other housing.

Getting Started

The M500 requires an electronic speed controller (ESC) for operation. We recommend the Basic ESC 500, designed for the high-power requirements of the M500 at 24V. The Basic ESC can also be used in lower-power applications, as long as current does not exceed its 30A maximum.

You’ll also need a power source like our lithium-ion batteries and a signal source such as the Thruster Commander, an RC radio receiver, a flight controller like the Navigator, or a microcontroller like an Arduino or Raspberry Pi.

Check out the technical details section for full motor specifications and our motor user guide to help get started with operation.

M500 with stainless steel abrasion shield.

What's in the box

1 x M500 Motor with preinstalled WetLink Penetrator
1 x M14 bulkhead O-ring
1 x M14 bulkhead nut

Technical details

Specifications

Parameter	Value
Performance
Depth Rating	300 m	984 ft
Design Lifetime ¹	3 years or 300 cycles to rated depth
Stall Torque (calculated)	2.04 N·m	1.5 lb⋅ft
Operating Water Temperature (full power @ 24V)	2–27°C
Electrical ²
Operating Voltage ³	7–24 V
Motor Kv (no load)	202 RPM/V
Motor Configuration	12 slot, 14 pole
Max Current (Power) @ 24 V (no load)	3.3 A (79 W)
Max RPM @ 24 V (no load)	4700 RPM
Physical
Length	98.45 mm	3.875 in
Diameter	61 mm	2.4 in
Wetted Materials	Stainless steel 316 Polycarbonate 10% glass-filled Epoxy POM Polyurethane Aluminum 7075-T6 FKM Buna-N
Weight in Air	895 g	1.97 lb
Weight in Water	641 g	1.41 lb
Mounting Hole Threads	M4 x 0.7
Mounting Hole Spacing	35 mm
Cable
Cable Type	T500 Cable (BR-100235)
Cable Length	1372±40 mm	54±1.57 in
Conductor Length	80 mm +20/-10	3.14 in +0.79/-0.39
Conductor Gauge	12 AWG
WetLink Penetrator	M14-9.5MM-HC
Bulkhead Thread	M14 x 1.5
Bulkhead O-ring	M14 (1.5x15 mm Buna-N 70A)
¹ Design life was used to define accelerated test conditions and does not represent a warranty period. ² Electrical values are typical; actual units may vary within +/-5%. Measured using the Basic ESC 500. ³ The M500 Thruster has a maximum operating voltage of 24 V, equivalent to a fully charged 6S LiPo or Li-ion battery. Continuous full-throttle operation at 24 V should be limited to 1 minute or less to avoid overheating.
