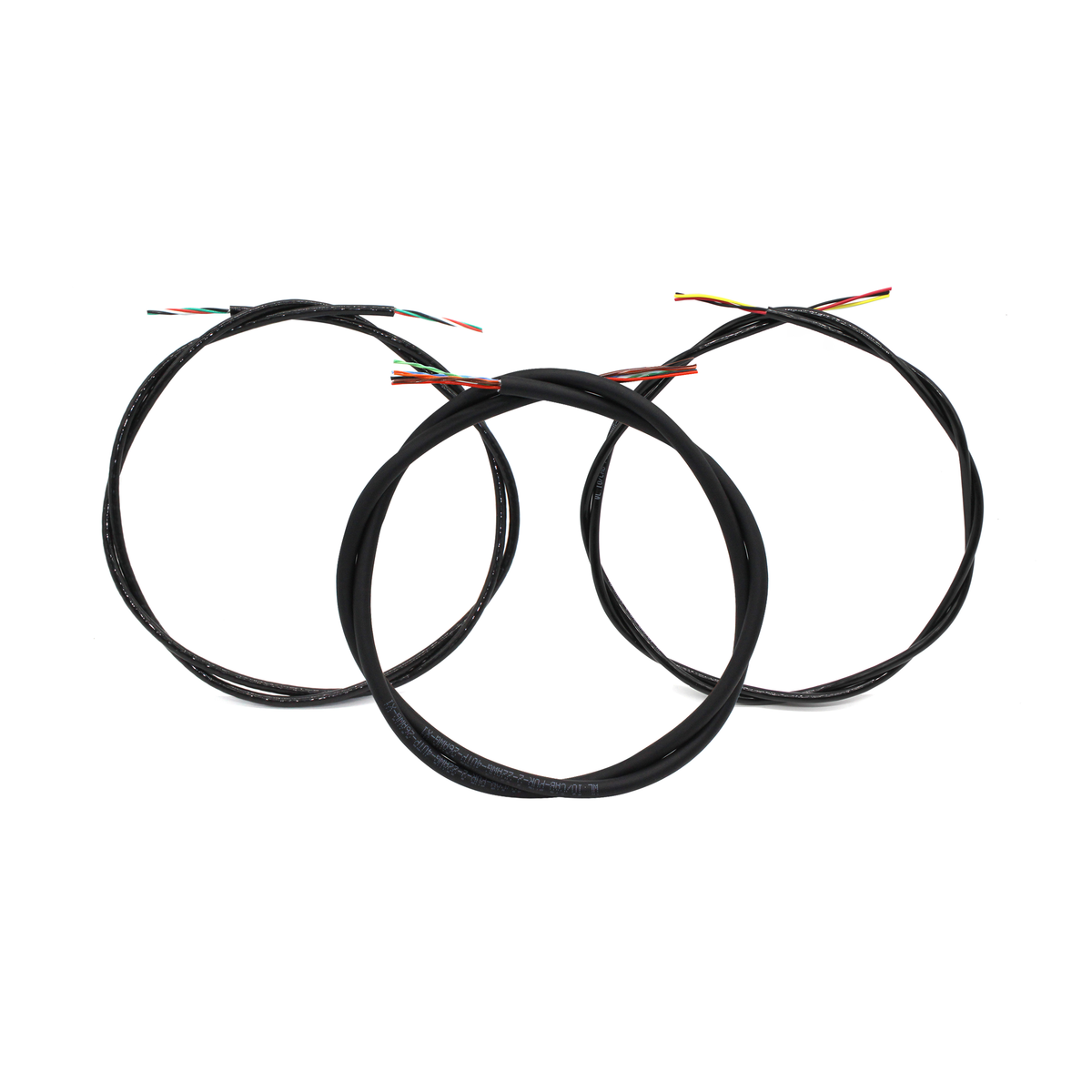

PUR Subsea Cable

€6.00€7.53Excl. VAT — added at checkoutIncl. 25.5% VAT (Finland) — final VAT is calculated at checkout

Ordered for you — ships in about 7 business days

Delivery across Europe from Finland, other countries on request
Not sure it fits your build? Ask us — we build on the same platform.

Description

These cables are built for a wide range of subsea applications, custom made with a pressure-extruded polyurethane jacket and flexible conductors. They are very tough and abrasion resistant.

These cables are used in the the Newton Gripper, the Ping Echosounder, the Lumen Lights, and in countless other applications!

What's in the box

1x Selected cable with bare ends, cut to length

Technical details

Specifications

Cable	Lumen/Gripper Cable	Ping Cable	Ethernet and Power Cable
Construction	3-conductors, jacket	4-conductors, powder separator, jacket	2-conductor 22 AWG, 4-unshielded twisted pairs 26 AWG, filler, wrap, jacket
Diameter	4.5 mm	4.5 mm	7.5 mm
Outer Jacket	Pressure-extruded polyurethane	Pressure-extruded polyurethane	Pressure-extruded polyurethane
Wrap	-	-	2-layer non-woven wrap
Filler	-	-	String
Number of Conductors	3	4	2 x 22 AWG 8 x 26 AWG
Conductor Gauge	22 AWG	24 AWG	22 AWG 26 AWG (UTP)
Conductor Insulation	Polypropylene	Polypropylene	Polypropylene (22 AWG) FEP (UTP)
Conductor Insulation Colors	Black, red, yellow	Black, white, green, red	Black Red Blue, blue/white Brown, brown/white Green, green/white Orange, orange/white
Static Minimum Bend Radius	15 mm	15 mm	24 mm
Compatible WetLink Penetrator	M06-4.5mm-LC M10-4.5mm-LC	M06-4.5mm-LC M10-4.5mm-LC	M10-7.5mm-LC

Revision History

18 July 2023

CAB-PUR-2-22AWG-4UTP-26AWG-R1 SKU changed to BR-100897
CAB-A-3-22AWG-R1 SKU changed to BR-101050

6 April 2023

CAB-PUR-4-24AWG-R1 SKU changed to BR-100452

8 February 2022

CAB-PUR-2-22AWG-4UTP-26AWG-R1 – Initial release

29 January 2019

CAB-PUR-4-24AWG-R1
Changed construction to remove Teflon tape
Increased jacket diameter
Changed to polypropylene insulation

11 January 2017

CAB-PUR-4-24AWG-R1 – Initial release

24 February 2016

CAB-A-3-22AWG-R1 – Initial Release
