QS8-S Connector Set
€17.00€21.34Excl. VAT — added at checkoutIncl. 25.5% VAT (Finland) — final VAT is calculated at checkout
Ordered for you — ships in about 7 business days
- Delivery across Europe from Finland, other countries on request
- Not sure it fits your build? Ask us — we build on the same platform.
Description
Power hungry? You’ve come to the right place.
The QS8-S is a connector for serious power enthusiasts. It can handle 110A continuous current at up to 600V. It’s similar to the common XT90 connector, but bigger.
The QS8-S connector comes on our 6S 28Ah Lithium-ion Battery and if you want to fully utilize the discharge capability of the battery, then you need to use a mating QS8-S connector in your application.

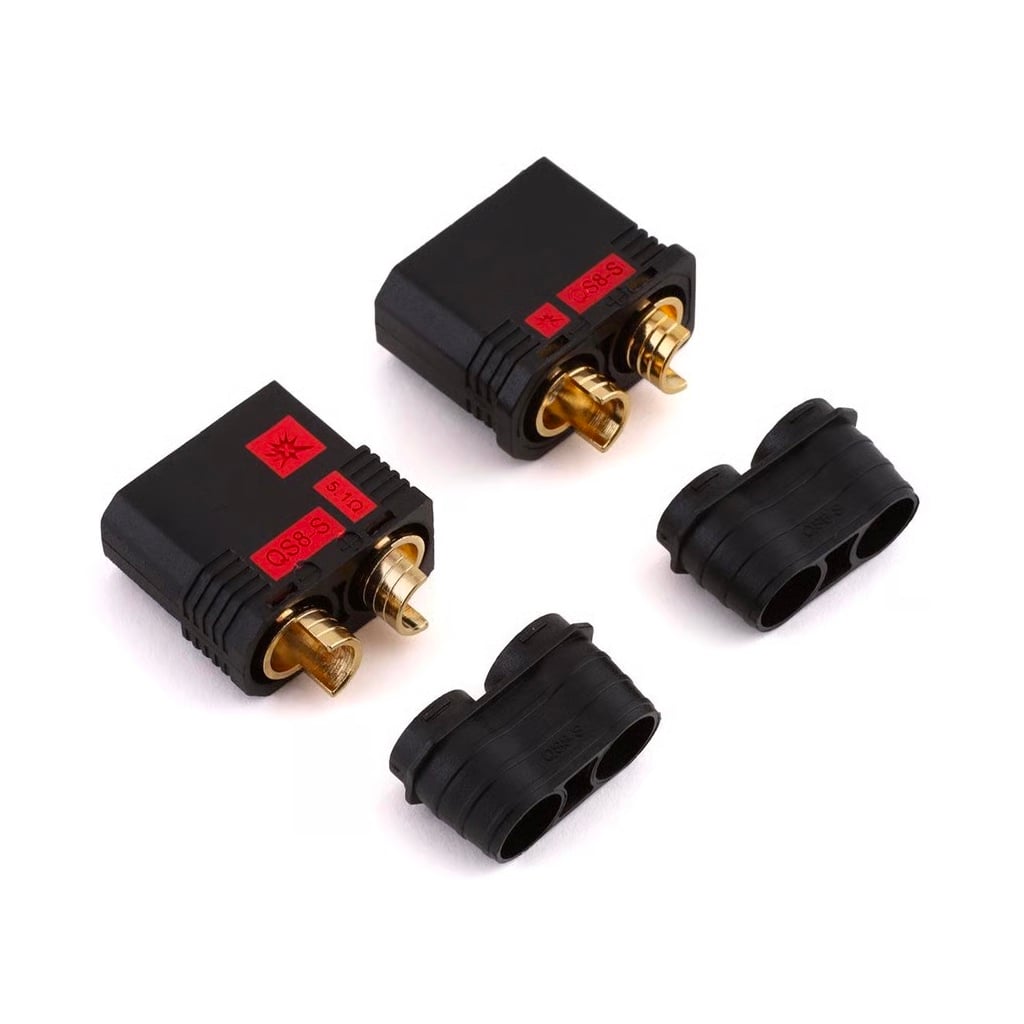

This product comes as a set with a male and female connector as well as covers for the wire connections. It requires a good soldering iron and some effort on your part to assemble.
What's in the box
- 1 x QS8-S Connector, Male
- 1 x QS8-S Connector, Female
- 2 x QS8 Connector Covers
Technical details
Specifications
| Parameter | Value |
|---|---|
| Maximum Continuous Current | 110 A |
| Maximum Peak Current (10 seconds) | 300 A |
| Maximum Voltage | 600 VDC |
| Flame Retardant Rating | UL94 V0 |
| Maximum Wire Gauge | 6 AWG |
Revision History
13 March 2023
- R1 - Initial Release
