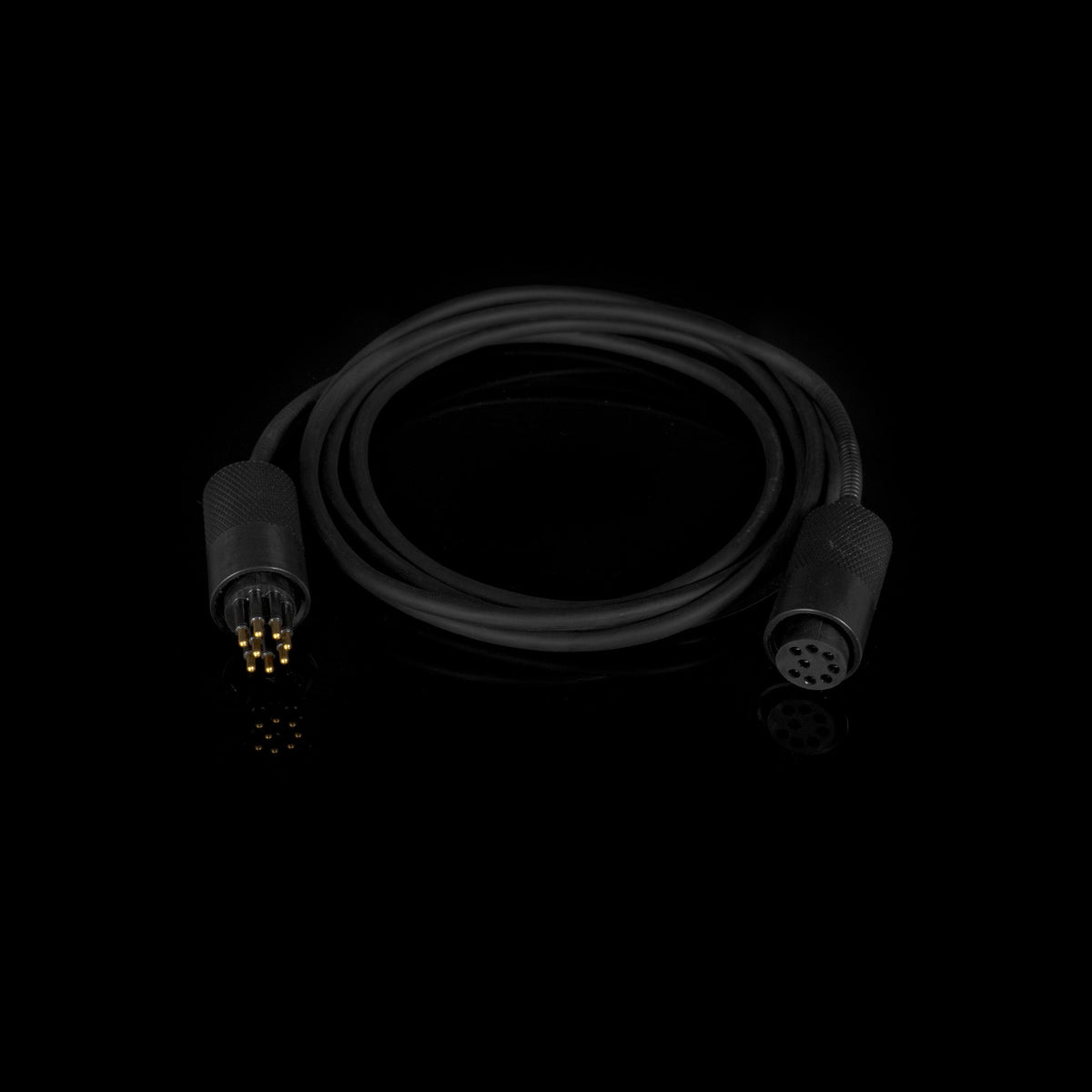

USB 2.0 SubConn Cable - MCIL8M/F-LS-CF

DWE

USB 2.0 SubConn Cable - MCIL8M/F-LS-CF

€300.00€376.50Excl. VAT — added at checkoutIncl. 25.5% VAT (Finland) — final VAT is calculated at checkout

Ordered for you — estimated 2–4 weeks

SKU MCIL8M/F-LS-CF-2M

  • Delivery across Europe from Finland, other countries on request
  • Not sure it fits your build? Ask us — we build on the same platform.

Description

SubConn MCIL Cable for exploreHD and stellarHD cameras. With Frame-Sync and Strobe Compatibility.

Micro Circular, In-Line, 8-way, Male to Female, Polyurethane Cable with Female Locking Sleeves on each end.

For custom lengths, please email us. Lead-time is typically 4-6 weeks if cables are out of stock. Maximum cable length is 5 meters.

Pinout

Pin 1: GND (Black)
Pin 2: FSIN (Blue)
Pin 3: 5V (Red)
Pin 4: STROBE (Brown)
Pin 5:
Pin 6:
Pin 7: DATA- (White)
Pin 8: DATA+ (Green)

Technical Information

Cable Construction

Cable Jacket Material Polyurethane-based (PU, PUR, TPU)
Jacket Outer Diameter 4.80mm ± 0.15mm
Differential Impedance Twisted Pair: 90 Ω ± 15%
Data Pair Construction 28 AWG Twisted Pair (D+ / D-)
Power Conductor Size 24 AWG
Strobe/FSIN Conductors 28 AWG (2x separate conductors)
Shielding Construction Braided Foil Shielding (Al-Poly Tape + Tinned Copper Braid)
Drain Wire Grounded Tinned Copper Drain Wire
Conductor Plating Tinned Copper

What's in the box

  • 1x MCIL8M/F-LS-CF USB Cable
