Battery Power Cable Set
Ordered for you — ships in about 7 business days
- Delivery across Europe from Finland, other countries on request
- Not sure it fits your build? Ask us — we build on the same platform.
Description

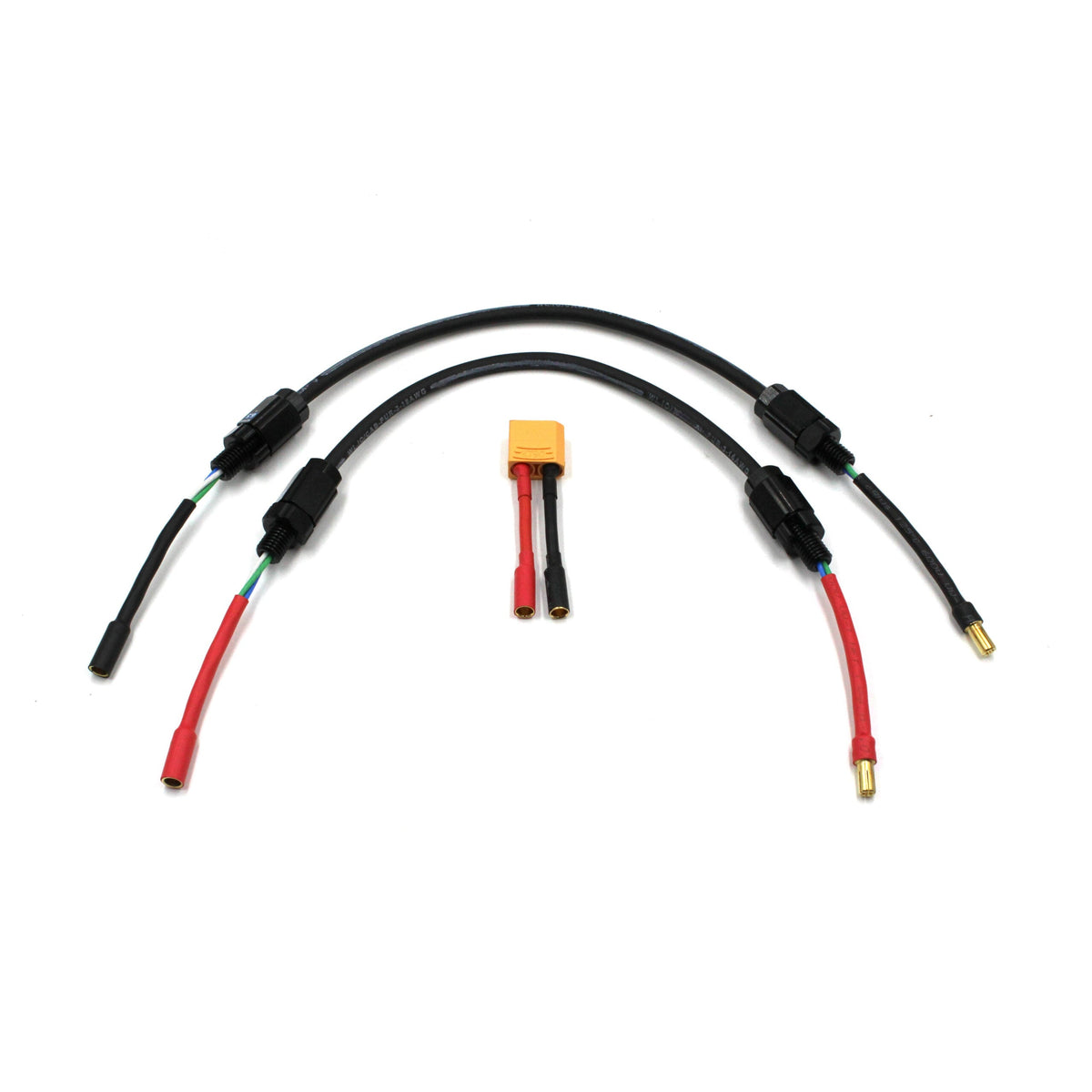

This is the power cable set on the BlueROV2 that connects the battery enclosure to the main electronics enclosure. It has preinstalled WetLink Penetrators and 5.5 mm bullet connectors.
These cables use the same three-conductor cable as our thrusters and the 6.5mm version of the WetLink Penetrator that work with that cable. With three 16 AWG conductors for both positive and negative, this is equivalent to a single 11 AWG wire, providing ample copper for efficient power transmission. The cables include red and black heat-shrink to indicate polarity when installed.
This cable can be used as a replacement on your BlueROV2 and it’s a great option if you’re building an ROV from scratch as well!
What's in the box
- 1 x Positive Power Cable
- 1 x Negative Power Cable
- 1 x Battery Plug
- 4 x O-rings
- 4 x Penetrator nuts
Technical details
Specifications
| Parameter | Value | |
|---|---|---|
| Physical | ||
| Cable Used | BR-100997 | |
| Bullet Connectors | 5.5 mm Bullet | |
| Included Adapter | 5.5 mm bullets to XT90 | |
| Overall Length | 489 +- 35 mm | 19.3 in +- 1.4 in |
| Length Between Penetrators | 258 +- 15 mm | 10.2 in +- 0.6 in |
| In Air Assembly Weight (cable pair) | 13.2 g | 0.47 oz |
| Performance Characteristics | ||
| Depth Rating | 950 m | 3116 ft |
| Design Lifetime¹ | 3 years or 500 cycles to rated depth | |
| Temperature Rating (air)² | -25 to 60°C | -13 to 140°F |
| Temperature Rating (water)² | -4 to 40°C | 32 to 104°F |
| In Water Maximum Continuous Current³ | 80 A | |
| Tools | ||
| Recommended Bulkhead Wrench | BR-100977-010 | |
| Torque Specifications | ||
| Bulkhead-Endcap or Nut-Bulkhead | 3.5 Nm | |
| ¹ Design life was used to inform testing in an accelerated environment, does not reflect warranty period. ² Sustained high temperatures can lead to performance loss over long periods of time. ³ Calculated as the total current through all conductors in parallel. |
||
Revision History
14 July 2023
- BROV2-CAB-POWER-SET-R1-RP SKU changed to BR-100259
13 September 2021
- BROV2-CAB-POWER-SET-R1 - Initial Release
- Updated from single battery cable to dual battery cables
- Bullet connectors changed from 3.5 mm to 5.5 mm
27 December 2017
- R1 - Initial Release
