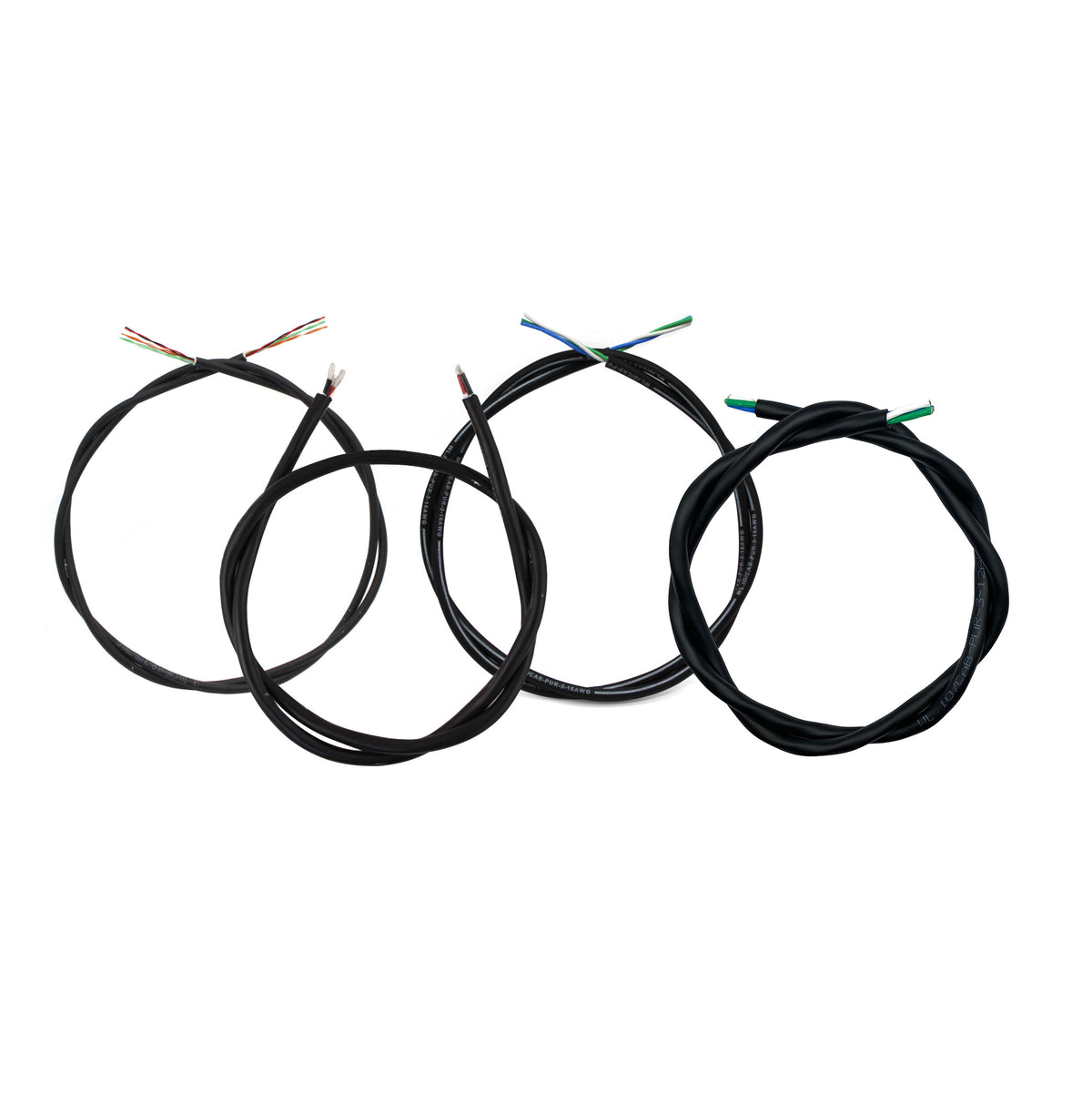

High-Temperature PUR Subsea Cable

€32.00€40.16Excl. VAT — added at checkoutIncl. 25.5% VAT (Finland) — final VAT is calculated at checkout

Ordered for you — ships in about 7 business days

Delivery across Europe from Finland, other countries on request
Not sure it fits your build? Ask us — we build on the same platform.

Description

These cables are built for a wide range of subsea applications and designed to carry high currents underwater. The cables are custom made with a pressure-extruded polyurethane jacket, and flexible conductors. Each conductor is insulated with FEP, which can handle high temperatures without melting, and chemically etched to ensure excellent adhesion to potting compounds and glues. They’re really tough and abrasion resistant!

These cables are used in the T200 Thruster, T500 Thruster, the Ping360 Sonar, and in countless other applications!

What's in the box

1x Selected cable with bare ends, cut to length

Technical details

Specifications

Cable	High Power Cable	T200 Cable	T500 Cable	Ping360 Cable
Construction	2-conductors, tape wrap, jacket	3-conductors, tape wrap, jacket	3-conductors, fabric wrap, jacket	3-unshielded twisted pairs, tape wrap, jacket
Diameter	8.3 mm	6.4 mm	9.0 mm	5.5 mm
Outer Jacket	Pressure-extruded polyurethane	Pressure-extruded polyurethane	Pressure-extruded polyurethane	Pressure-extruded polyurethane
Wrap	PTFE tape	PTFE tape	Nonwoven fabric	PTFE tape
Filler	-	-	-	-
Number of Conductors	2	3	3	6
Conductor Gauge	12 AWG	16 AWG	12 AWG	26 AWG
Conductor Insulation	FEP	FEP	FEP	FEP
Conductor Insulation Colors	Red, black	White, green, blue	White, green, blue	black, red orange, orange/white green, green/white
Static Minimum Bend Radius	26 mm	18 mm	30 mm	20 mm
Compatible WetLink Penetrator	M10-8.5mm-LC	M10-6.5mm-LC	M14-9.5mm-HC	M10-5.5MM-LC

Revision History

15 July 2025

BR-101529, Ping360 Cable – Initial release

Cable diameter increased from 4.7 mm to 5.5 mm
Conductor gauge increased from 28 AWG to 26 AWG

BR-100614, Ping360 Cable – Retired

18 July 2023

CAB-PUR-3UTP-28AWG-R2 SKU changed to BR-100614
CAB-PUR-3-12AWG-R1 SKU changed to BR-100235
CAB-A-2-12AWG-R1 SKU changed to BR-101093

6 April 2023

CAB-PUR-3-16AWG-R2 SKU changed to BR-100997

16 September 2022

CAB-PUR-3-12AWG-R1 – Initial release

2 December 2021

CAB-PUR-3UTP-28AWG-R2 – Initial release

12 February 2021

CAB-PUR-3-16AWG-R2 – Initial release

3 June 2016

CAB-A-2-12AWG-R1 – Initial release
