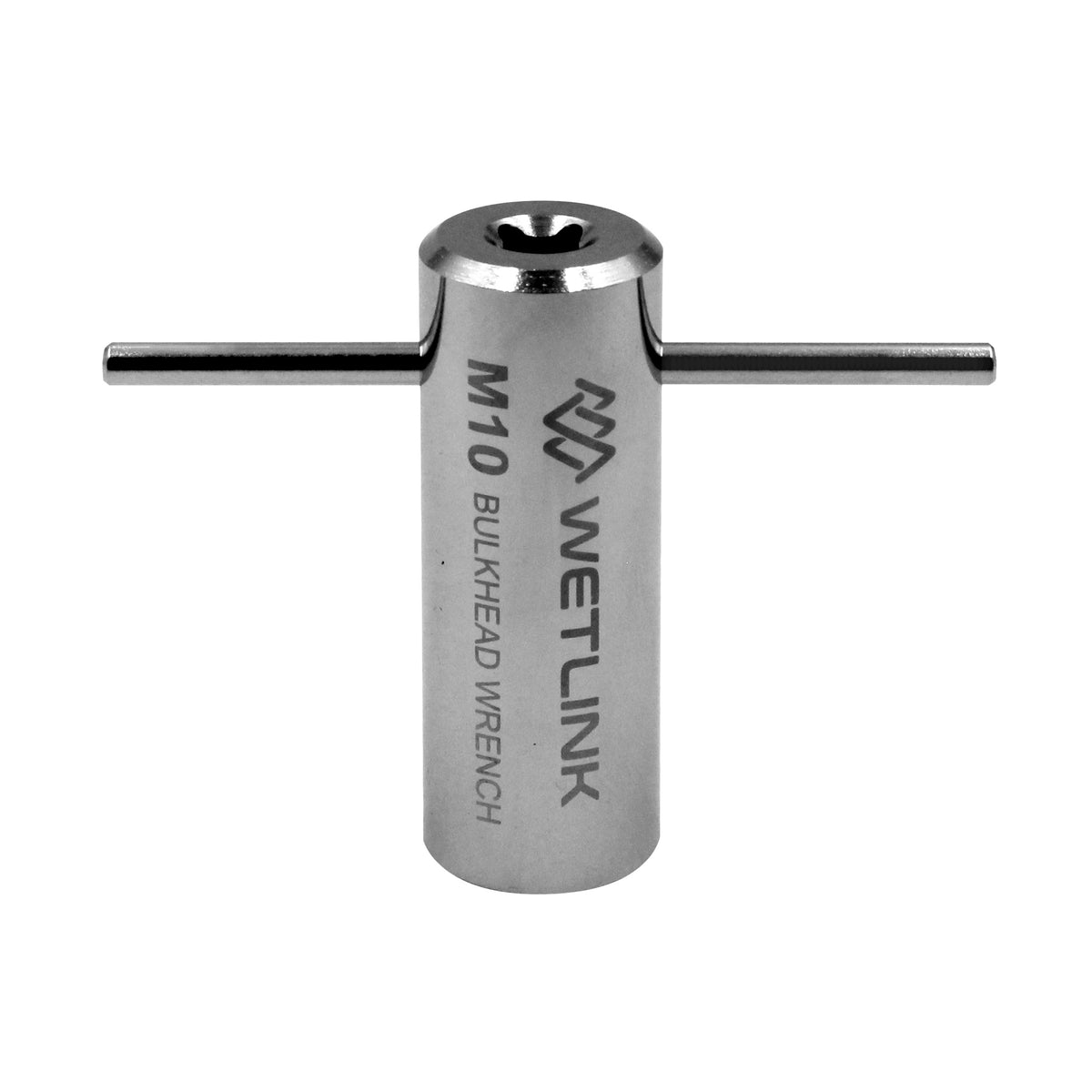

WetLink Bulkhead Wrench

€17.00€21.34Excl. VAT — added at checkoutIncl. 25.5% VAT (Finland) — final VAT is calculated at checkout

Ordered for you — ships in about 7 business days

Delivery across Europe from Finland, other countries on request
Not sure it fits your build? Ask us — we build on the same platform.

Description

The cable penetrators and bulkheads have wrench flats that make tightening relatively easy, but when you pack a bunch of them together it gets more difficult. That’s particularly true with the 18-hole end-cap used on the BlueROV2. This specially designed wrench makes it easy to tighten penetrators in tight spaces.

The wrench is made of hardened chrome-plated steel and includes a lever bar designed to apply just the right amount of torque to tighten the penetrator. This tool is a great addition to your field toolbox!

Note: We recommend tightening the penetrators with your fingers and then use this wrench to tighten them an additional ~1/16 of a turn. When done, you should not be able to remove the penetrators by hand.

What's in the box

1 x Bulkhead Wrench of the selected bulkhead size
1 x Lever Bar

Technical details

Specifications

Bulkhead Wrench Size	M06	M10	M14
Part Number	BR-100977-006	BR-100977-010	BR-100977-014
Material	Chrome-plated steel hardened to HRC 32-36
Square Drive Size	1/4 in (6.3 mm)		3/8 in (9.5 mm)
Wrench Flats	12 mm	16 mm	20 mm
Penetrator Compatibility	All M06 size bulkheads	All M10 size bulkheads	All M14 size bulkheads

WLP Tool Information

Seal Size	Bulkhead Size	Bulkhead Wrench	Bulkhead/Nut Flat Size	Bulkhead Installation Torque	Plug Wrench	Plug Hex Size	Plug Installation Torque ²
4.5	M06	M06 (BR-100977-006)	12 mm	1 N⋅m	11 mm (BR-100369-011)	11 mm	~14 N⋅m
4.5	M10	M10 (BR-100977-010)	16 mm	3.5 N⋅m	11 mm (BR-100369-011)	11 mm	~14 N⋅m
5.5, 6.5, 7.5, 8.5	M10	M10 (BR-100977-010)	16 mm	3.5 N⋅m	14 mm (BR-100369-014)	14 mm	~14 N⋅m
9.5	M14	M14 (BR-100977-014)	20 mm	3.5 N⋅m	18 mm (BR-100369-018)	18 mm	~20 N⋅m
¹ The WetLink Penetrator Assembly Block is compatible with all WetLink Penetrator sizes. ² Installation torque is approximate. Actual torque to fully seat the plug varies by cable.
