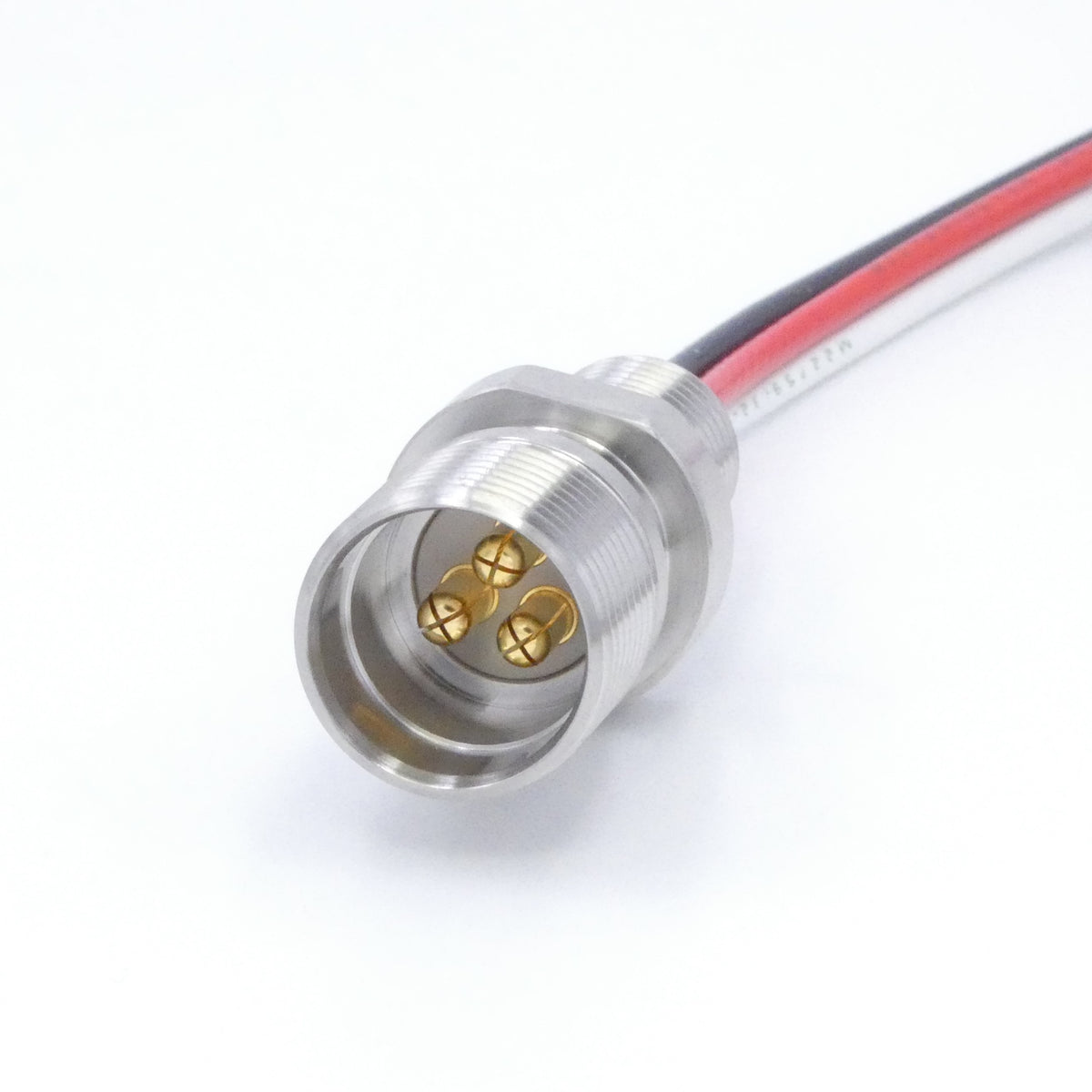

Cobalt 14 Bulkhead Connector

€79.00€99.15Excl. VAT — added at checkoutIncl. 25.5% VAT (Finland) — final VAT is calculated at checkout

Ordered for you — ships in about 7 business days

Delivery across Europe from Finland, other countries on request
Not sure it fits your build? Ask us — we build on the same platform.

Description

Cobalt 14 bulkhead connector for use with Cobalt 14 Cables and Cable Termination Kits (sold separately). Rated to 600 m depth, includes M14 X 1.5 nut. 3-pin, 4-pin, 10-pin Hybrid, and 19-pin versions available.

SKUs: C14-1130-SS C14-1140-SS C14-1110H0-SS C14-11190-SS

The Cobalt 14 series of underwater connectors expands the Cobalt line with a larger shell size, offering higher current-carrying capability while delivering the same reliability and affordability that has made the Cobalt line so popular.

With 316 stainless steel shells and PEEK inserts, they withstand long-term use in seawater at depths up to 600 meters. Connector shells are keyed and feature a scoop-proof design, allowing them to be mated blind with no possibility of pin damage.

Cobalt 14 connectors achieve a hermetic seal without the need for potting or overmolding, making them more affordable than traditional molded connectors. The electrical contacts are pressed into a machined PEEK insert, which is in turn pressed into the stainless steel connector shell.

In addition to reducing cost, the unique design of Cobalt 14 connectors increases their reliability. Without a bonded rubber overmold, there is no danger of leakage due to cathodic delamination. A simple, proven O-ring seal between the male and female connectors makes Cobalt connectors both easier to use and more reliable than wet-mate connectors.

Stock connectors and cables typically ship in 2-3 days. Custom items or large orders ship in 1-2 weeks.

The Cobalt 14 bulkhead connector fits in the same hole as the 14-mm Blue Robotics WetLink penetrator, making quick-connect and quick-disconnect possible with the Blue Robotics T500 thruster. A Cable Termination Kit allows the user to retrofit an existing Blue Robotics thruster with a Cobalt connector.

The Cobalt 14 bulkhead connector is available in 3-pin, 4-pin, 10-pin Hybrid, and 19-pin versions. It can be installed in the wall of any enclosure, provided that the enclosure has a smooth outer surface to seal against the connector’s O ring.

Technical details

Environmental
Depth Rating	600 meters
Operating Temperature	0° C to +50° C
Electrical
Rated voltage and current	3-pin: 400 VDC, 35 amps per pin 4-pin: 400 VDC, 35 amps per pin 10-pin Hybrid: 150 VDC, 2x 35 amps per pin, 8x 3 amps per pin 19-pin: 150 VDC, 3 amps per pin
Wire size and stranding	3-pin: 12 AWG, 37/28 4-pin: 12 AWG, 37/28 10-pin Hybrid: 2x 12 AWG, 37/28; 8x 24 AWG, 7/32 19-pin: 11x 22 AWG, 19/34; 8x 24 AWG, 7/32
Wire configuration	3-pin: unshielded, untwisted 4-pin: unshielded, untwisted 10-pin Hybrid: 2x unshielded, untwisted; 8x Cat 5e 19-pin: 11x unshielded, untwisted; 8x Cat 5e
Materials
Bulkhead connector shell	316 stainless steel
Bulkhead connector insert	PEEK
Bulkhead connector pins	gold-plated brass
Cable connector shell	316 stainless steel
Cable connector insert	PEEK
Cable connector sockets	gold-plated brass
Wire insulation	3-pin: ETFE 4-pin: ETFE 10-pin Hybrid: ETFE, polyolefin 19-pin: ETFE, polyolefin
O-rings	nitrile
Locking sleeve	acetal
Dimensions
Bulkhead connector threads	M14 X 1.5
Bulkhead connector hex	20 mm
Locking sleeve threads	M20 X 1.5
Cable outer diameter	3-pin, 4-pin: 10.0 mm 10-pin Hybrid, 19-pin: 12.0 mm
