Cobalt Series Cable Termination Kit

€25.00€31.38Excl. VAT — added at checkoutIncl. 25.5% VAT (Finland) — final VAT is calculated at checkout

Ordered for you — ships in about 7 business days

Delivery across Europe from Finland, other countries on request
Not sure it fits your build? Ask us — we build on the same platform.

Description

Use this Cable Termination Kit to add a Cobalt connector to your own cable! Available in 1-pin*, 3-pin, 3-pin Power, 4-pin, 6-pin, 6-pin Hybrid, or 8-pin versions, with regular or large connector shells.

Requires the appropriate Cable Termination Tool (sold separately).

SKUs: COB-3130-SS COB-3131-SS COB-313P0-SS COB-313P1-SS COB-3140-SS COB-3141-SS COB-3160-SS COB-3161-SS COB-316H0-R1 COB-316H1-R1 COB-3180-R1 COB-3181-R1

*For 1-pin cable termination kits, see the Specialty Cobalt Connectors and Cables page.

Now you can add a Cobalt connector -- up to 8 pins! -- to your own cable. Perfect for ROV tethers, battery cables, thruster cables, etc.

The Cable Termination Kit is available in seven different pin counts (1-pin*, 3-pin, 3-pin Power, 4-pin, 6-pin, 6-pin Hybrid, and 8-pin) and two different connector shell sizes (regular and large).

Your cable must have a bondable jacket (preferably polyurethane) and have a diameter no larger than 6.5 mm for the regular size connector shell or 7.8 mm for the large size connector shell.

The termination procedure requires the appropriate Cable Termination Tool (sold separately).

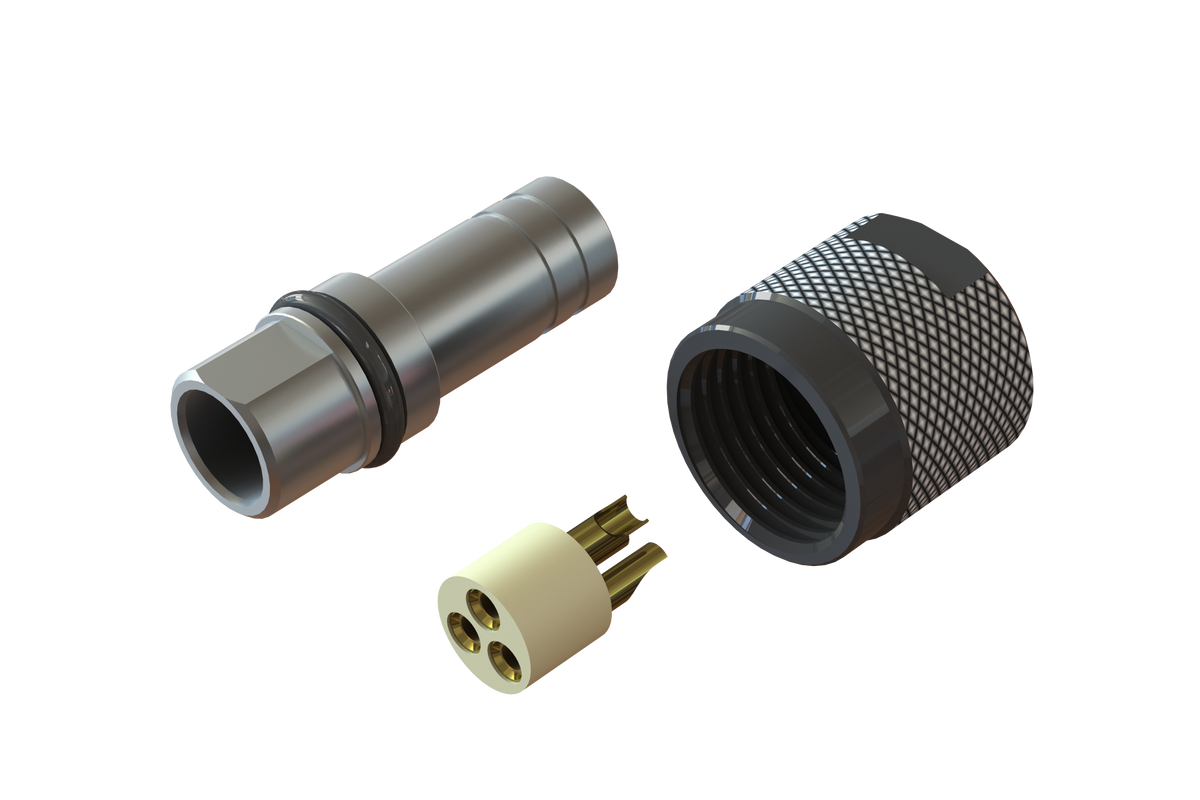

The kit includes:

qty. 1. Connector Shell (regular or large)
qty. 1 Connector Insert with pre-installed electrical sockets (3-pin, 3-pin Power, 4-pin, 6-pin, 6-pin Hybrid or 8-pin)
qty. 1 Locking Sleeve
qty. 1 #012 O-Ring

Requires intermediate soldering skills as well as familiarity with potting techniques. Does not include potting material (we recommend 3M DP-420). Please read the Instructions in the DOWNLOADS tab for further detail.

Cable Termination Kit Instructions Video

For 1-pin termination kits, see the Specialty Cobalt Connectors and Cables page.
