Outland Technology

High-Power Tether Reel for OTPS

€3,475.00€4,361.13Excl. VAT — added at checkoutIncl. 25.5% VAT (Finland) — final VAT is calculated at checkout

Ordered for you — ships in about 7 business days

Delivery across Europe from Finland, other countries on request
Not sure it fits your build? Ask us — we build on the same platform.

Description

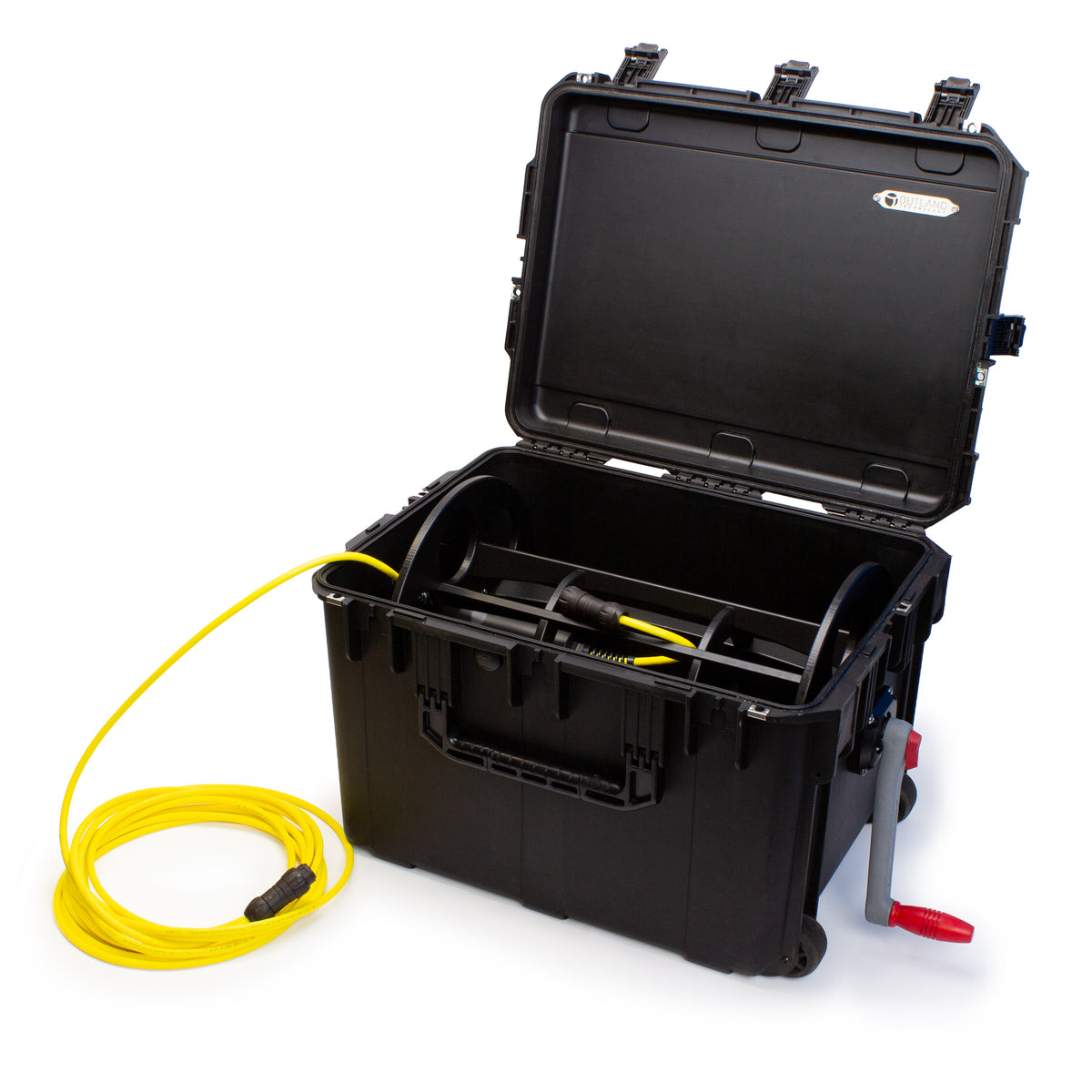

Keep your Outland Technology Power Supply high-power tether protected and tangle-free with the RL-500 and RL-750 tether reels. Designed specifically for the Outland Technology Power Supply system, each reel features a waterproof, high-power slip ring rated to handle the high voltages used by the OTPS system.

The reels are built into SKB iSeries hard cases with an integrated pull handle and wheels for easy transport. An integrated extension cable with a Binder 696 connector is pre-installed and ready to connect directly to the OTPS topside unit for quick setup. A removable crank handle is used for manual operation and stows inside the case for storage. The reels are compact and portable, but can hold a lot of tether:

RL-500 stores up to 150 m of OTPS tether
RL-750 stores up to 360 m of OTPS tether

These reels are available individually on this page or as part of a complete topside power system configured through the Outland Technology Power Supply product page.

These reels are not compatible with Blue Robotics Fathom ROV-Ready Tether.
Tether sold separately.

What's in the box

1 x High-power OTPS tether reel with integrated extension cable
1 x Removable crank handle

Technical details

Specifications

Model	RL-500	RL-750
Physical
External Connector	Binder 696 male
Internal Connector	Binder 696 female
Extension Cable Length	6 m
Maximum OTPS Tether Capacity ¹	150 m	360 m
External Case	SKB iSeries 2015-14	SKB iSeries 2418-16
Dimensions (LxWxH)	586 x 458 x 395 mm	675 x 522 x 448 mm
Height Open	783 mm	910 mm
Weight (without tether)	13.6 kg (30 lbs)	16.3 kg (36 lbs)
Internal Reel Dimensions
Traverse Length	416 mm	503 mm
Fill Diameter	336 mm	387 mm
Barrel Diameter	216 mm	216 mm
¹ OTPS tether available in 125 m and 250 m lengths only.
