Subsea LED Indicator

€17.00€21.34Excl. VAT — added at checkoutIncl. 25.5% VAT (Finland) — final VAT is calculated at checkout

Ordered for you — ships in about 7 business days

SKU BR-100551-001

  • Delivery across Europe from Finland, other countries on request
  • Not sure it fits your build? Ask us — we build on the same platform.

Description

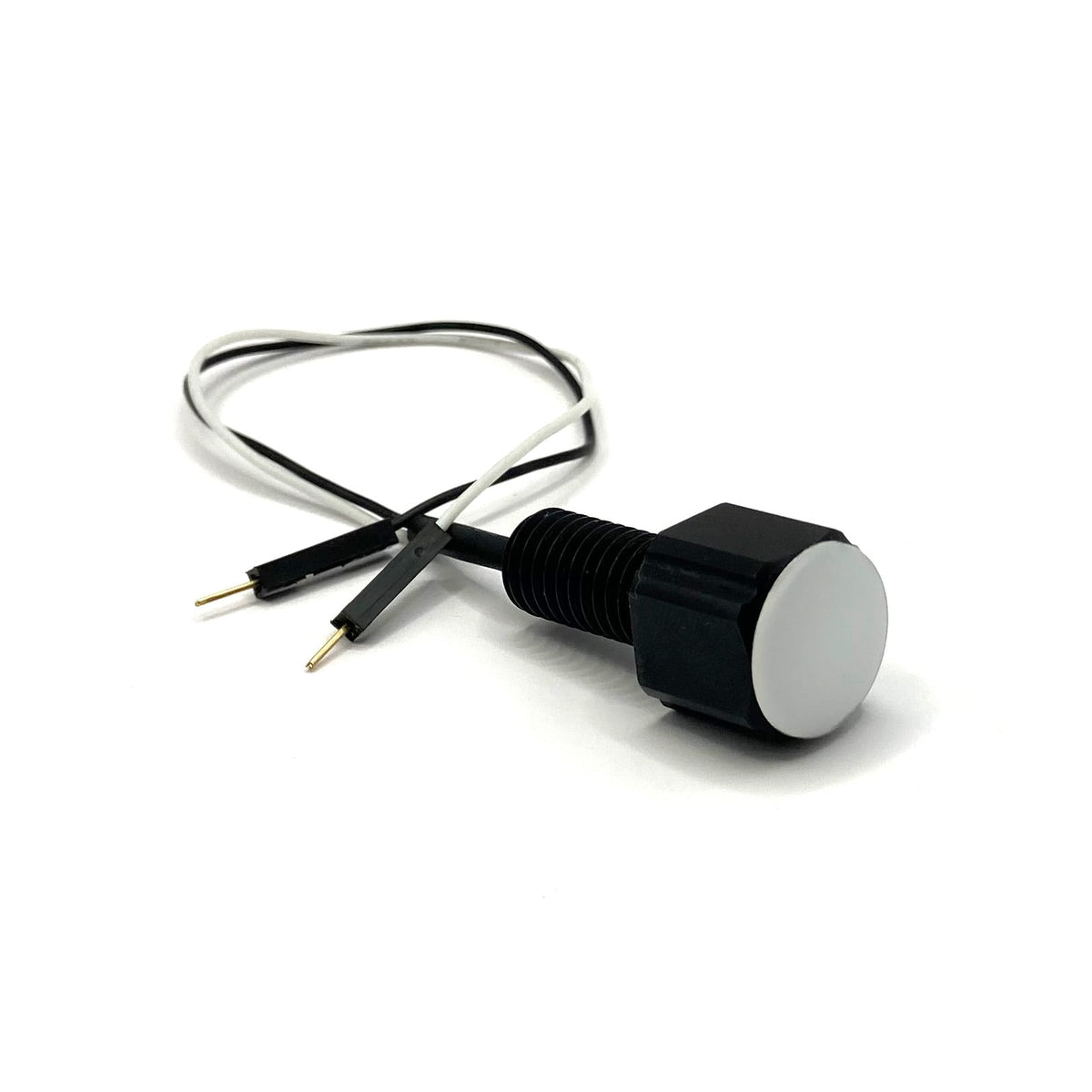

The Subsea LED Indicator is a simple LED light with high pressure capability! It comes in a penetrator form factor for easy installation on any of our Watertight Enclosures and it comes in four colors: white, blue, green, and red! It operates on 3-18V and each light draws up to 30mA when used at 18V. A built in resistor makes it easy to use without any additional parts.

The indicator light body is made of anodized aluminum. A plastic diffuser cap on the front creates a gentle glow and makes the light visible from any angle.

The Subsea LED Indicator can be used to provide status information about anything built into a watertight enclosure. Here are a few examples:

  • Use it as a power on/off indicator on the BlueROV2 or other device (especially when using aluminum tubes)
  • Install a few different colors on an underwater sensor enclosure to show status or errors
  • Use it as a waterproof indicator light on an unmanned surface vessel
  • Create an underwater light display!

It comes with two male header pins (0.1″) preinstalled to make it easy to connect to an Arduino or other electronic device.

What's in the box

  • 1 x Subsea LED Indicator (of selected color)
  • 1 x M10 Nut
  • 1 x -013 O-ring for M10 Bulkhead

Technical details

Specifications

ParameterValue
Performance
Maximum Rated Depth (seawater)1000 m3116 ft
Tools
Compatible Bulkhead WrenchBR-100977-010
Recommended Installation Torque3.5 N⋅m
Electrical
Supply Voltage (Vin)Blue, Green, White Indicator: 3–18 VDC
Red Indicator: 3–30 VDC
Maximum CurrentBlue, Green, White Indicator: 30 mA
Red Indicator: 50 mA
Cables and Connectors
Wire Length180 mm
ConnectorsSingle 0.1" Male Header Pins
WiresBlack - Ground
Blue/Green/Red/White - Power
Physical
Recommended Thru Hole Diameter10.2 mm
Bulkhead ThreadM10 x 1.5
Bulkhead Thread Length20 mm
Bulkhead/Nut Wrench Flats16 mm
Overall Assembled Height From Endcap16.2 mm
Overall Outer Diameter18 mm
Bulkhead O-ring SizeAS568-013 Buna-N 70A
Bulkhead MaterialAluminum 7075-T6, type III anodized
Wetted MaterialsAluminum 7075-T6
Buna-N Rubber
Molykote 111 Compound
Polycarbonate
In Air Weight (No Nut)8 g
In Water Weight (No Nut)4.6 g

2D Drawings

Drawing

3D Models

LED_INDICATOR_BR-100551-XXX (.zip)

Revision History

31 January 2025

  • Updated bulkhead material to AL7075-T6, with type III anodizing

17 January 2025

  • Lens mold updated

29 June 2023

  • INDICATOR-M10-BLU-R2-RP SKU changed to BR-100551-001
  • INDICATOR-M10-GRN-R2-RP SKU changed to BR-100551-002
  • INDICATOR-M10-RED-R2-RP SKU changed to BR-100551-003
  • INDICATOR-M10-WHT-R2-RP SKU changed to BR-100551-004

7 February 2023

  • INDICATOR-M10-BLU-R2 - Initial release
    • Updated blue indicator to pottingless design
    • Rated depth: 950 m
    • Updated bulkhead design and color

3 February 2023

  • INDICATOR-M10-WHT-R2 - Initial release
    • Updated white indicator to pottingless design
    • Rated depth: 950 m
    • Updated bulkhead design and color
  • Blue -013 bulkhead O-rings implemented

11 January 2023

  • INDICATOR-M10-GRN-R2 - Initial release
    • Updated green indicator to pottingless design
    • Rated depth: 950 m
    • Updated bulkhead design and color

27 October 2022

  • INDICATOR-M10-RED-R2 - Initial release
    • Updated red indicator to pottingless design
    • Rated depth: 950 m
    • Updated bulkhead design and color

24 October 2017

  • Initial release - R1
    • Tested depth: 300 m
