M200 Motor

€185.00€232.18Excl. VAT — added at checkoutIncl. 25.5% VAT (Finland) — final VAT is calculated at checkout

Ordered for you — ships in about 7 business days

Delivery across Europe from Finland, other countries on request
Not sure it fits your build? Ask us — we build on the same platform.

Description

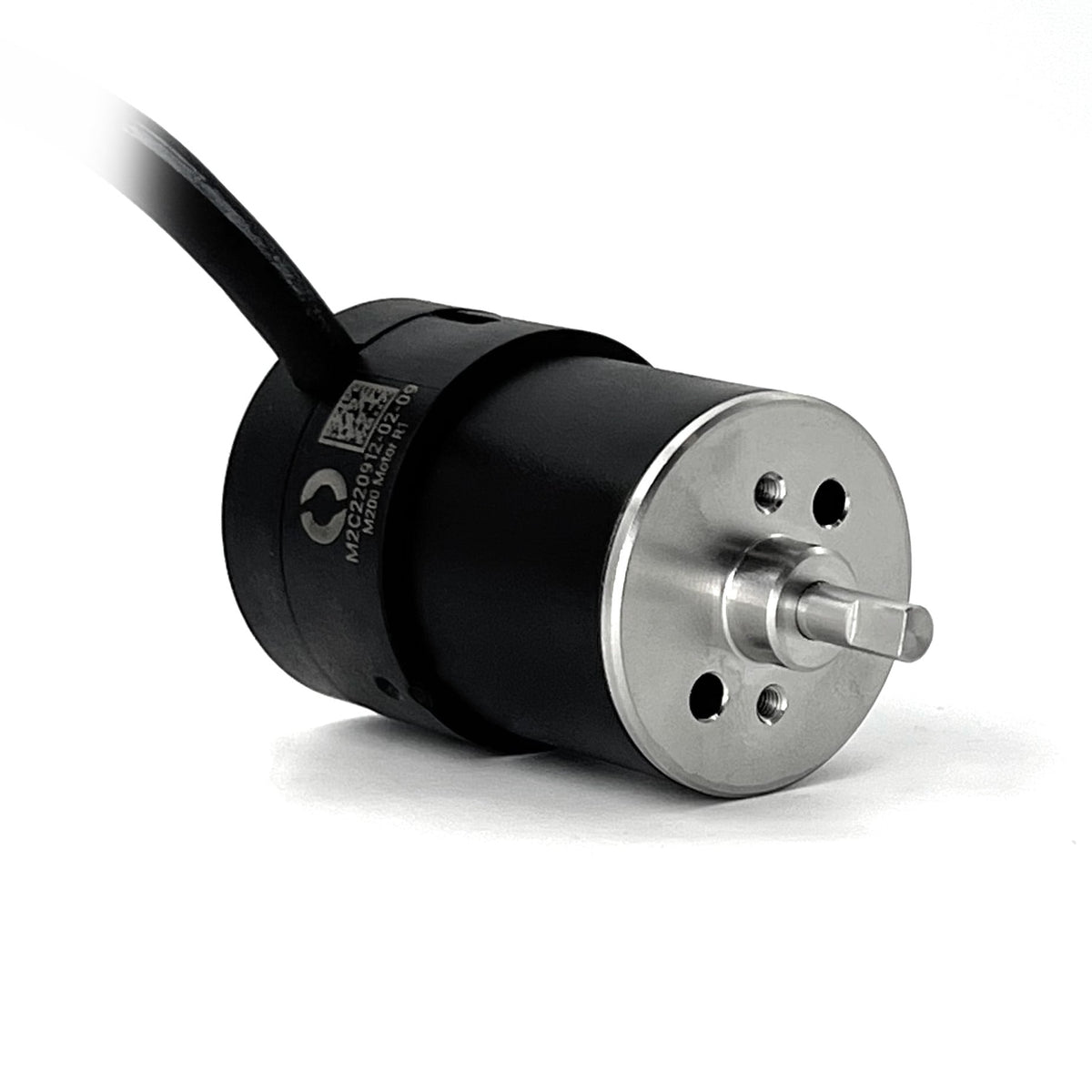

The M200 Motor is essentially the T200 Thruster, but designed to be used in more generic applications. With a propeller, it’s a great propulsor for unmanned surface vessels (USVs) and unmanned underwater vehicles (UUVs), but it can also be used to build subsea tooling, drive a gear-train, or whatever you can imagine!

Check out this subsea rotary cleaning brush that we built as an example application!

Like the our thrusters, the M200 Motor is a flooded three-phase brushless motor. The motor stator is encapsulated and electrically isolated from the water and the magnet rotor is coated and made from stainless steel to make it resistant to seawater corrosion. The motor uses high-performance water-lubricated plastic bushings and is water-cooled as water flows through the motor.

The M200 Motor has a base with four M3 mounting holes to secure it in a wide range of applications. The standard version comes with a 1 meter long cable and the BlueBoat version has a shorter cable with pre-installed cable penetrator and an MT60 connector ready to install on the BlueBoat!

A sensorless brushless electronic speed controller (ESC) like our Basic ESC is required to run the motor in all situations. It’s optimized to run at a voltage of 16V (such as a 4S lithium-ion battery pack), but can run at a range of voltages. Check out the motor user guide for more information and operating instructions!

What's in the box

Standard

1 x M200 Motor with unterminated cable

BlueBoat

1 x M200 Motor with pre-installed oversized M14 bulkhead penetrator and wire connector
1 x Bulkhead O-ring
1 x M14 Nut
This version does not include the base mounting plate

Technical details

Specifications

Parameter	Value
Performance
Maximum Tested Depth (seawater)	300 m / 984 ft
Design Lifetime ¹	3 years or 300 cycles to rated depth
Electrical
Operating Voltage ²	7–20 volts
Max Current (Power) @ 12 V	17 Amps (205 Watts)
Max Current (Power) @ Nominal (16 V)	24 Amps (390 Watts)
Max Current (Power) @ Maximum (20 V)	32 Amps (645 Watts)
Motor Kv	470 RPM/V
Stall Torque (theoretical)	0.5 Nm	4.4 in lbs
Physical
Length	73.6 mm	2.90 in
Diameter	40 mm	1.57 in
Wetted Materials	Polycarbonate 10% glass-filled Epoxy Stainless steel Plastic Polyurethane
Weight in Air (with 1 m cable)	282 g	0.62 lb
Weight in Water (with 1 m cable)	217 g	0.48 lb
Mounting Hole Threads	M3 x 0.5
Cable
Cable Used	BR-100997
Cable Length
Standard Variant	1.0 m	39 in
BlueBoat Variant	0.71 m	28 in
Conductor Gauge	16 AWG
Compatible WetLink Penetrator	M10-6.5mm-LC
Bulkhead O-ring (BlueBoat variant only)	AS568-117 Buna-N 70A
Wire Connector (BlueBoat variant only)	MT60-M
Connector Pinout (BlueBoat variant only)	Pin 1 (+): Phase 1 (blue) Pin 2 (-): Phase 2 (green) Pin 3 (GND): Phase 3 (white)
¹ Design life was used to inform testing in an accelerated environment, does not reflect warranty period. ² Note that nominal operation at 12–16 V is recommended for the best balance of power and efficiency, though operation at up to 20 V is allowable. Exceeding 20 V is not within the rating and not recommended.

Performance Charts

These charts show performance of the Weedless Propeller in combination with the M200 Motor.

Thrust at 16 V

Current Draw at 16 V

Efficiency at 16 V

Thrust and Power at 16 V

RPM at 16 V

2D Drawings

M200 Standard Variant

M200 BlueBoat Variant

3D Models

M200_STANDARD_BR-101376_PUBLIC (.zip)

M200_BB120_BR-101380_PUBLIC (.zip)

Revision History

8 April 2025

BR-101694-001 - Updated stator stem, and stator base o-ring dimension

31 October 2023

BR-101694-002 - Initial Release

20 June 2023

BR-101694-001 - Initial Release
